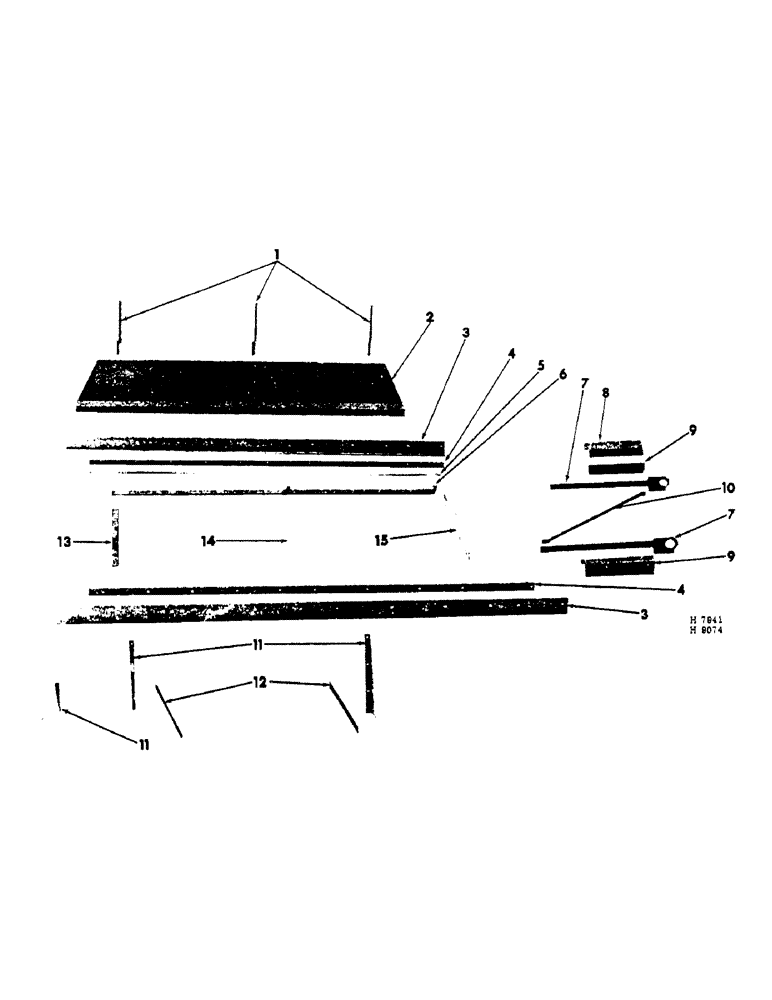

Запчасти Case IH 201 (D-028) - SWATH PLATFORM, DOUBLE SWATH ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

607793R91

BRACKET, side sheet rear

3шт.

BOLT W/NUT, 5/16 x 3/4" crg

4шт.

BOLT W/NUT, 7/16 x 7/8" crg

2шт.

LK-WASH, 5/16"

4шт.

LK-WASH, 7/16"

2шт.

2

607804R1

SIDE, swath front

1шт.

2

607805R1

SIDE, swath rear

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

12шт.

BOLT W/NUT, 5/16 x 1/2" crg

16шт.

BOLT W/NUT, 3/8 x 1" crg

6шт.

LK-WASH, 5/16"

28шт.

LK-WASH, 3/8"

6шт.

3

607800R1

SUPPORT, roller front

1шт.

3

607801R1

SUPPORT, roller rear

1шт.

BOLT W/NUT, 5/16 x 1/2" crg

6шт.

LK-WASH, 5/16"

6шт.

4

607807R2

ANGLE, upr canvas front

1шт.

4

607808R2

ANGLE, upr canvas rear

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

12шт.

LK-WASH, 5/16"

12шт.

5

607809R2

SUPPORT, lower canvas

1шт.

BOLT W/NUT, 5/16 x 7/8" no. 3 plow

3шт.

LK-WASH, 5/16"

3шт.

6

607797R11

PIPE, platform torque

1шт.

BOLT W/NUT, 7/16 x 1" mach

6шт.

LK-WASH, 7/16"

6шт.

7

608770R91

SUPPORT, brg extension front

1шт.

7

608771R91

SUPPORT, brg extension rear

1шт.

BOLT W/NUT, 3/8 x 1" crg

2шт.

BOLT W/NUT, 3/8 x 1" cd-pltd crg (2 - rear)

2шт.

BOLT W/NUT, 3/8 x 1-1/4" crg

2шт.

BOLT W/NUT, 3/8 x 1-1/2" crg (front)

1шт.

LK-WASH, 3/8" (4 - front, 2 - rear)

1шт.

LK-WASH, 3/8" cd-pltd (2 - rear)

1шт.

8

607806R1

SIDE, extension rear

1шт.

9

607810R3

CHANNEL, canvas guide front

1шт.

9

607811R3

CHANNEL, canvas guide rear

1шт.

BOLT W/NUT, 3/8 x 1" crg (2 - front, 1 - rear)

1шт.

BOLT W/NUT, 3/8 x 1-1/4" crg (rear)

1шт.

LK-WASH, 3/8"

4шт.

10

608774R1

BRACE, extension cross (1964)

1шт.

10

591728R1

BRACE, extension cross (1965 & since)

1шт.

BOLT W/NUT, 3/8 x 1-1/4" crg

1шт.

BOLT W/NUT, 3/8 x 1-1/2" crg

1шт.

LK-WASH, 3/8"

2шт.

11

607791R1

BRACKET, side sheet front LH

2шт.

11

607792R1

BRACKET, side sheet front RH

1шт.

BOLT W/NUT, 5/16 x 3/4" crg

3шт.

BOLT W/NUT, 7/16 x 7/8" crg

3шт.

LK-WASH, 5/16"

3шт.

LK-WASH, 7/16"

3шт.

12

607796R1

BAR, frame tie LH

1шт.

12

608769R1

BAR, frame tie RH

1шт.

BOLT W/NUT, 7/16 x 1" cd-pltd type 2 (LH)

1шт.

BOLT W/NUT, 7/16 x 1-1/8" cd-pltd type 2 (RH)

1шт.

BOLT W/NUT, 7/16 x 1-1/8" cd-pltd type 2 crg

2шт.

LK-WASH, 7/16" cd-pltd

4шт.

13

607788R1

ANGLE, cross LH, Serial Range: (prior-1965)

1шт.

13

591725R1

ANGLE, cross LH (1965 & since)

1шт.

14

607789R2

ANGLE, cross center, Serial Range: (prior-1965)

1шт.

14

591726R1

ANGLE, cross center (1965 & since)

1шт.

15

607790R1

ANGLE, cross RH, Serial Range: (prior-1965)

1шт.

15

591727R1

ANGLE, cross RH (1965 & since)

1шт.

591754R91

PACKAGE, 36" width platform to 42" width platform field conversion

1шт.

Composed of: (1) angle 591725R1, (1) angle 591726R1, (1) angle 591727R1, (1) apron 591733R91, (1) brace 591728R1, (1) rod 607770R2, (1) roller 591731R91, (1) roller 612226R11, (1) shaft 608745R1, (1) spacer 591730R1

1шт.
