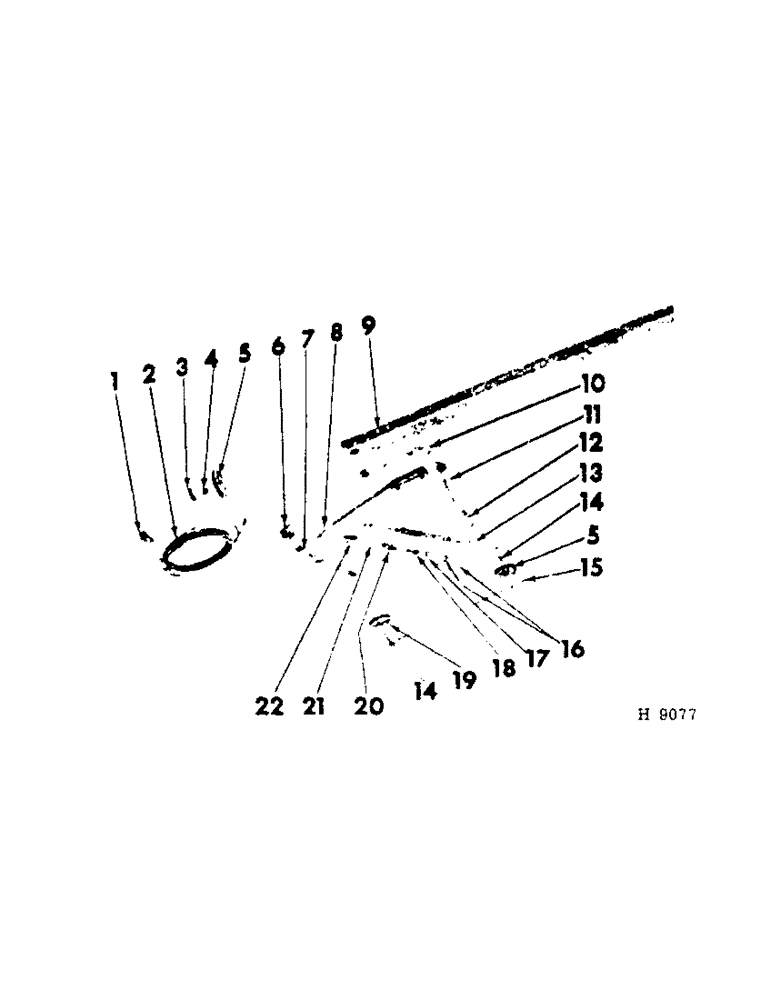

Запчасти Case IH 201 (D-026) - REEL LIFT CABLE RIGHT HAND, 1964 SEASON AND SINCE (58) - ATTACHMENTS/HEADERS

1

608752R1

YOKE, reel lift cable

1шт.

PIN, 3/8 x 1-5/16" std-hd dld

1шт.

C-PIN, 1/8 x 3/4"

1шт.

2

607700R1

CABLE, 12 ft platform reel lift

1шт.

2

607701R1

CABLE, 16 ft platform reel lift

1шт.

3

608754R1

CLIP, pulley guide

1шт.

BOLT W/NUT, 7/16 x 1-3/4" cd-pltd mach

1шт.

LK-WASH, 7/16" cd-pltd

1шт.

4

618953R1

SPACER, cable pulley

3шт.

5

608753R1

PULLEY, cable (2-12 ft; 3-16 ft)

1шт.

6

608765R1

STOP, reel arm

1шт.

BOLT W/NUT, 1/2 x 2-3/4" cd-pltd type 2

1шт.

NUT (12 ft)

1шт.

BOLT W/NUT, 1/2 x 3" cd-pltd type 2 (16 ft)

1шт.

LK-WASH, 1/2" cd-pltd

1шт.

7

608764R1

SUPPORT, reel stop (1965 & since)

1шт.

BOLT W/NUT, 3/8 x 7/8" crg

1шт.

LK-WASH, 3/8"

1шт.

8

608751R11

ARM, reel cable support

1шт.

BOLT W/NUT, 1/2 x 2-1/2" crg

2шт.

LK-WASH, 1/2"

2шт.

9

ARM, reel lift support (refer to "reel support arm")

1шт.

10

608766R1

ANCHOR, hold-down spg (1965 & since)

1шт.

BOLT W/NUT, 1/2 x 2-1/2" cd-pltd crg

2шт.

LK-WASH, 1/2" cd-pltd

2шт.

11

61A

SPRING, reel arm hold-down

1шт.

12

608767R1

BAR, hold-down spg lower

1шт.

BOLT W/NUT, /16 x 2-3/4" type 2

1шт.

WASH, 15/32 x 1 x 16 ga

1шт.

LK-WASH, /16"

1шт.

13

608716R1

BAR, outer support brace

1шт.

BOLT W/NUT, 3/8 x 1-1/4" crg

1шт.

BOLT W/NUT, 7/16 x 2-3/4" type 2

1шт.

WASH, 15/32 x 1 x 16 ga

1шт.

LK-WASH, 3/8"

1шт.

LK-WASH, 7/16"

1шт.

14

608768R1

SPACER, spg lower bar & pulley

2шт.

15

608755R1

SUPPORT, cable pulley lower

1шт.

BOLT W/NUT, 7/16 x 2" cd-pltd mach

1шт.

BOLT W/NUT, 7/16 x 2-3/4" cd-pltd type 2

1шт.

WASH, 15/32 x 1 x 16 ga cd-pltd

1шт.

LK-WASH, 7/16" cd-pltd

2шт.

16

618987R91

CLIP W/BOLTS & NUTS, lift cable

1шт.

17

618988R1

THIMBLE, reel lift cable

1шт.

18

618051R1

EYEBOLT, reel lift cable

1шт.

19334R1

NUT,7/16"-20, G5, LH

7/16" special (LH thread)

1шт.

19

618954R1

PULLEY, lift cable rear (12 ft)

1шт.

20

R185

TURNBUCKLE, lift cable

1шт.

21

611421R1

BOLT,Hex, 7/16" - 14 x 3 1/2", Full Thd

cable turnbuckle

1шт.

NUT, 7/16"

1шт.

22

618060R1

YOKE, reel lift cable

1шт.

PIN, 3/8 x 1-1/4" std-hd dld

1шт.

WASH, 13/32 x 1 x 16 ga cd-pltd

2шт.

C-PIN, 1/8 x 3/4"

1шт.
