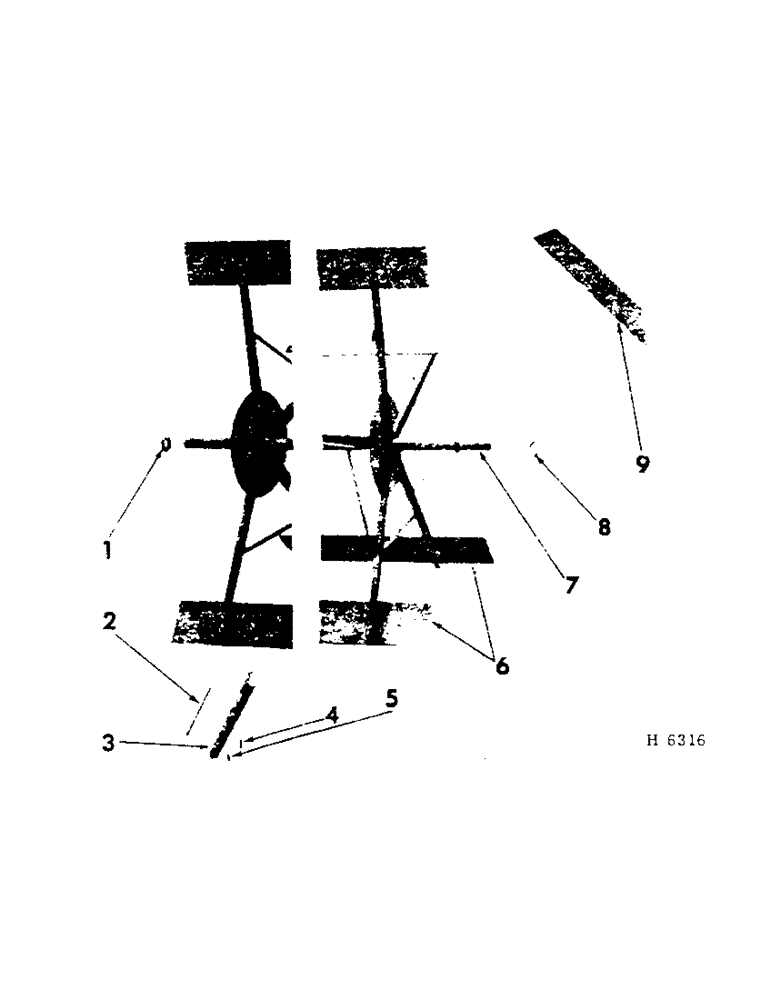

Запчасти Case IH 201 (D-025) - REEL, 1964 SEASON AND SINCE (58) - ATTACHMENTS/HEADERS

1

612267R1

COLLAR

reel tube locking

2шт.

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt cd-pltd set

4шт.

2

618854R1

BRACE, reel bat bracket

20шт.

BOLT W/NUT, 5/16 x 5/8" cd-pltd mach

20шт.

LK-WASH, 5/16" cd-pltd

20шт.

3

612262R1

ASSEMBLY

BRACKET, reel bat

20шт.

BOLT W/NUT, 5/16 x 5/8" cd-pltd mach

20шт.

BOLT W/NUT, 5/16 x 3/4" cd-pltd mach

20шт.

LK-WASH, 5/16" cd-pltd

40шт.

4

U13039

SPACER

reel bat bracket inner

20шт.

5

588736R1

SPACER

reel bat bracket outer

20шт.

6

608729R1

BAT, 12 ft 1/2" plywood (1964)

5шт.

6

607730R1

BAT, 16 ft 1/2" plywood (1964)

5шт.

BOLT W/NUT, 5/16 x 2" cd-pltd mach

20шт.

BOLT W/NUT, 5/16 x 2-1/4" cd-pltd mach

20шт.

WASH, 11/32 x 3/4 x 16 ga cd-pltd

40шт.

LK-WASH, 5/16" cd-pltd

40шт.

6

591716R1

BAT, 12 ft 3/4" solid (1965 & since)

5шт.

6

591717R1

BAT, 16 ft 3/4" solid (1965 & since)

5шт.

BOLT W/NUT, 5/16 x 2-1/4" cd-pltd mach

20шт.

BOLT W/NUT, 5/16 x 2-1/4" cd-pltd mach

20шт.

WASH, 11/32 x 3/4 x 16 ga cd-pltd

40шт.

LK-WASH, 5/16" cd-pltd

40шт.

7

612273R92

TUBE, 12 ft platform reel 149.375" Length

1шт.

7

612275R92

TUBE, 16 ft platform reel 197.375" Length

1шт.

8

615325R1

WASHER, 1-11/16 x 2-1/4 x 16 ga

2шт.

9

612452R2

GUARD

reel bat end LH

5шт.

9

612453R2

REINFORCEMENT

GUARD, reel bat end RH

5шт.

BOLT W/NUT, 1/4 x 1-3/8" cd-pltd mach

20шт.

WASH, 9/32 x 7/8 x 16 ga cd-pltd

20шт.

LK-WASH, 1/4" cd-pltd

20шт.
