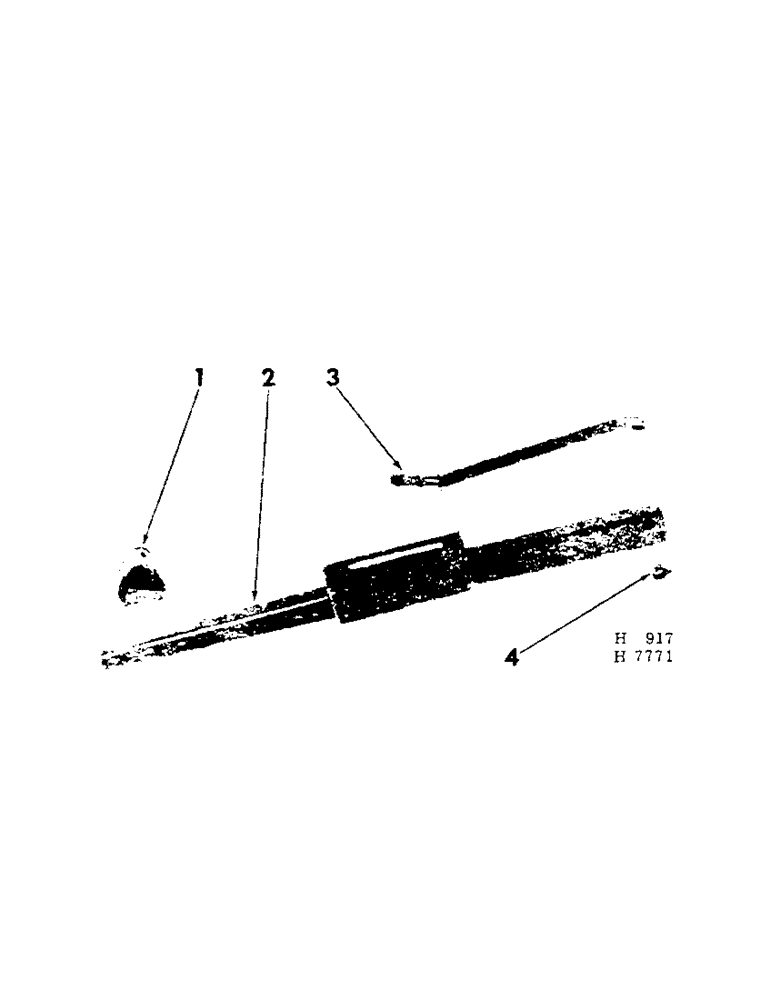

Запчасти Case IH 201 (D-025[A]) - REEL SUPPORT ARM (58) - ATTACHMENTS/HEADERS

1

611761R1

BRACKET, reel tube brg

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

517843R1

COTTER PIN

C-PIN, quick-attachable

2шт.

PIN, 1/2 x 2-1/2" std-hd dld

2шт.

2

607635R11

ARM, reel support LH, Serial Range: (prior-1965)

1шт.

2

591724R91

ARM, reel support LH (1965 & since)

1шт.

2

607636R21

ARM, reel support RH

1шт.

3

607637R2

BRACE, reel support arm

2шт.

BOLT, 3/8 x 3/4" cd-pltd mach

2шт.

BOLT W/NUT, 3/8 x 1" type 2 crg

4шт.

WASH, 13/32 x 1-1/4 x 11 ga cd-pltd

2шт.

LK-WASH, 3/8"

4шт.

LK-WASH, 3/8" cd-pltd

2шт.

4

610513R1

COLLAR

COLLAR, support arm locking

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/16 x 1/2" sq-hd cup-pt cd-pltd set

2шт.
