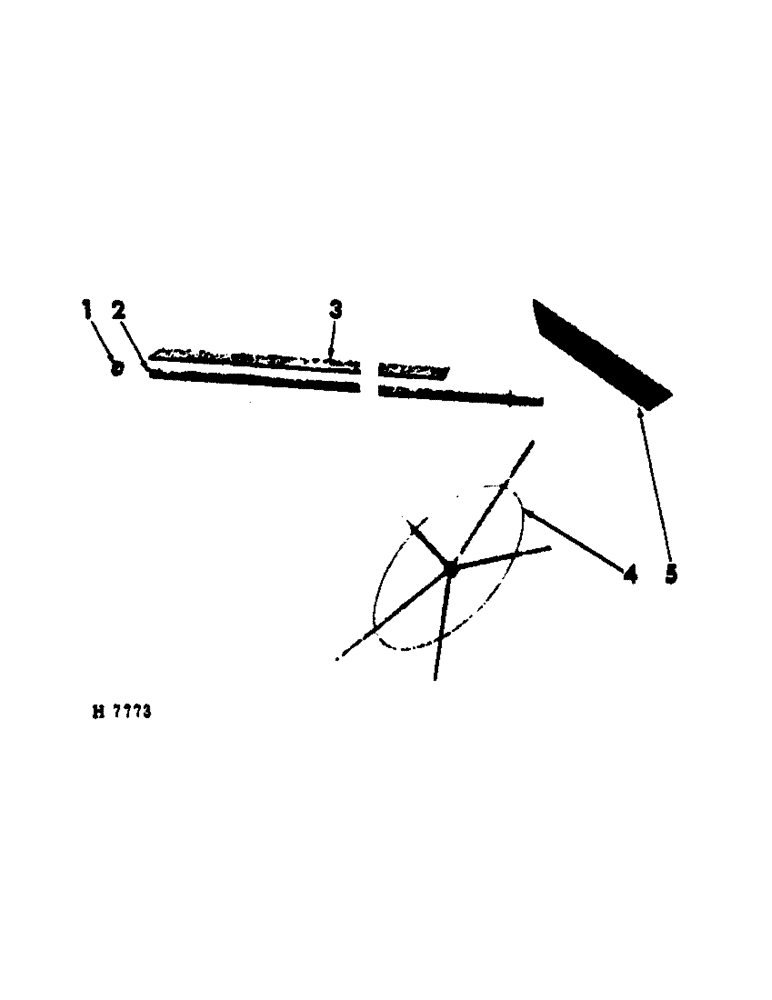

Запчасти Case IH 201 (D-024) - REEL, SPIDER TYPE, PRIOR TO 1964 SEASON (58) - ATTACHMENTS/HEADERS

1

612267R1

COLLAR

reel tube locking

2шт.

SCREW, 3/8 x 3/8" hdls cup-pt cd-pltd set

4шт.

2

607646R91

TUBE, 12 ft platform reel

1шт.

2

607647R91

TUBE, 16 ft platform reel

1шт.

3

607462R1

BAT, 12 ft 1/2" plywood

5шт.

3

607464R1

BAT, 16 ft 1/2" plywood

5шт.

BOLT W/NUT, 3/16 x 1" cd-pltd mach

1шт.

WASH, 11/32 x 7/8 x 16 ga cd-pltd

1шт.

LK-WASH, 3/16" cd-pltd

1шт.

4

607605R91

SPIDER, reel bat arm

4шт.

SCREW, 3/8 x 3/4" sq-hd cup-pt set

8шт.

NUT, 3/8" cd-pltd jam

8шт.

5

612452R2

GUARD

reel bat end LH

5шт.

5

612453R2

REINFORCEMENT

GUARD, reel bat end RH

5шт.

BOLT W/NUT, 1/4 x 1-3/8" cd-pltd mach

20шт.

WASH, 9/32 x 7/8 x 16 ga cd-pltd

20шт.

LK-WASH, 1/4" cd-pltd

20шт.
