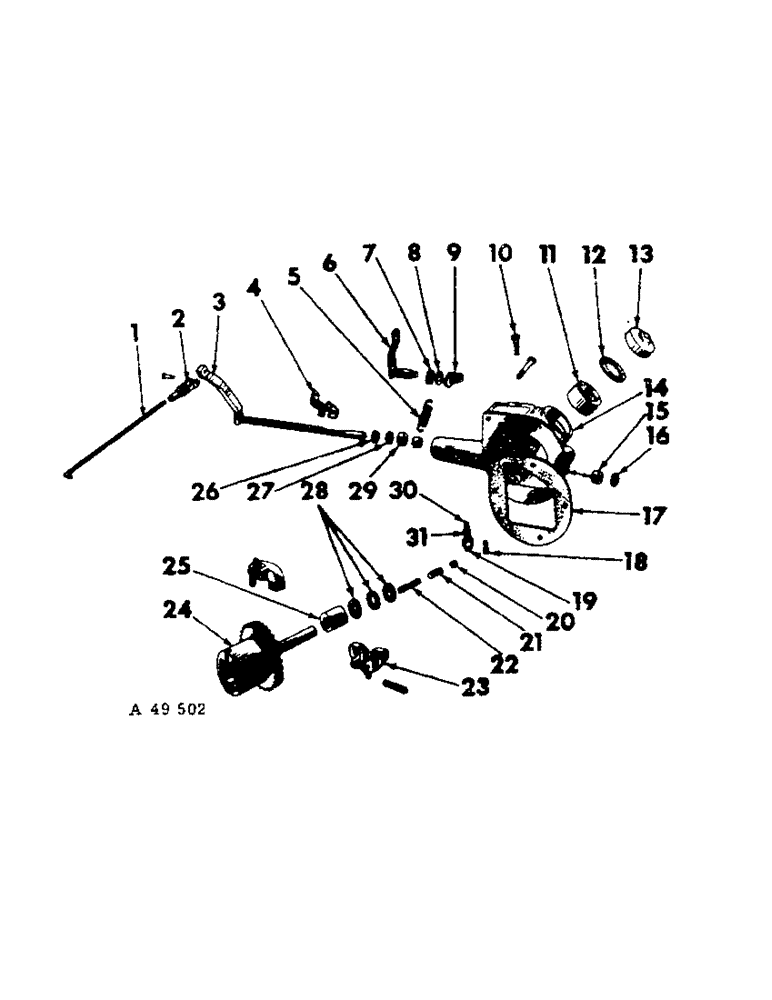

Запчасти Case IH 201 (A-013) - ENGINE GOVERNOR (10) - ENGINE

1

315716R1

ROD

governor connecting

1шт.

Not part of governor

1шт.

NUT, 1/4" - NF

1шт.

Not part of governor

1шт.

C-PIN, 1/16 x 7/16"

1шт.

Not part of governor

1шт.

2

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS, rod end adjusting

1шт.

Not part of governor

1шт.

PIN, 1/4 x 51/64" rod-end dld

1шт.

Not part of governor

1шт.

C-PIN, 1/16 x 7/16"

1шт.

Not part of governor

1шт.

3

367709R11

ROCKSHAFT

governor

1шт.

4

367711R1

FORK

governor rockshaft

1шт.

SCREW, no. 8 x 1/2" slt-rd-hd

2шт.

LK-WASHER, no. 8

2шт.

5

369686R2

SPRING

governor

1шт.

6

46947DAXB

LEVER

ASSEMBLY, speed

1шт.

NUT, 3/8" - NF jam

1шт.

LK-WASHER, 3/8" ext-tooth

1шт.

7

149345R91

OIL SEAL

OIL SEAL, speed change shaft

1шт.

8

151341R1

WASHER

spg lever (opt w/17081H)

2шт.

17081H

WASHER

spg lever (opt w/151341R1)

2шт.

9

357432R3

BOLT

STOP, speed change lever

1шт.

12736D

ELECTRICAL WIRE

SEAL, governor

1шт.

NUT, 3/8" jam

1шт.

11

368564R1

NECK, oil filler

1шт.

12

368153R1

GASKET

oil filler cap

1шт.

13

367857R91

CAP

filler (includes gasket, 368153R1)

1шт.

14

367706R11

HOUSING ASSEMBLY, governor composed of: (2) bearing 45753D, (1) bushing 45939D, (1) housing (NSS), (1) neck 368564R1, (1) pin 46942D, (1) pin 492220D, (1) plug 172531

1шт.

BOLT, 5/16 x 1-3/8" type 2

1шт.

BOLT, 5/16 x 2-1/4" type 2

1шт.

BOLT, 5/16 x 2-3/4" type 2

3шт.

LK-WASHER, 5/16"

5шт.

15

45753D

BEARING, NEEDLE,Needle, 9.51mm ID x 15.89mm OD x 12.7mm W

BEARING, rockshaft

2шт.

16

172531

PLUG,Exp, 3/4"

3/4" expansion

1шт.

17

45875D

GASKET

governor housing

1шт.

18

46942D

AXLE PIN,5.56mm OD x 18.26mm L

PIN, lever retainer

1шт.

19

129-531

NUT,Crown, 7/16"-14

7/16" - NF low crown

1шт.

20

49220D

STOP

PIN, governor shaft stop

1шт.

21

49219DA

AXLE PIN,4.78mm OD x 26.99mm L

PIN, governor shaft bumper

1шт.

22

49218DA

SPRING

governor shaft bumper

1шт.

23

351778R1

WEIGHT

governor (opt w/374710R1)

2шт.

23

374710R1

WEIGHT

governor (opt w/351778R1)

2шт.

46924D

PIN

governor weight

2шт.

C-PIN, 1/16 x 7/8"

2шт.

24

375778R11

GEAR

PINION, 35T governor

1шт.

25

363866R1

BUSHING,12.83mm ID x 23.81mm OD x 27.51mm L

SLEEVE, nylon thrust (opt w/49325D)

1шт.

49325D

BUSHING

SLEEVE, steel thrust (opt w/363866R1)

1шт.

26

43483D

SEAL RETAINER

RETAINER, rockshaft seal

1шт.

27

43482D

SEAL,9.53mm ID x 18.26mm OD x 5.56mm Thk

SEAL, rockshaft

1шт.

28

43481D

BEARING ASSY,12.8mm ID x 23.81mm OD x 10.19mm W

BEARING, thrust ball

1шт.

29

46939D

BUSHING,9.59mm ID x 19.13mm OD x 11.11mm L

rockshaft

1шт.

30

31804DA

BODY

bumper spg

1шт.

NUT, 7/16" jam

1шт.

31

28078D

VALVE SPRING

SPRING, governor bumper

1шт.
