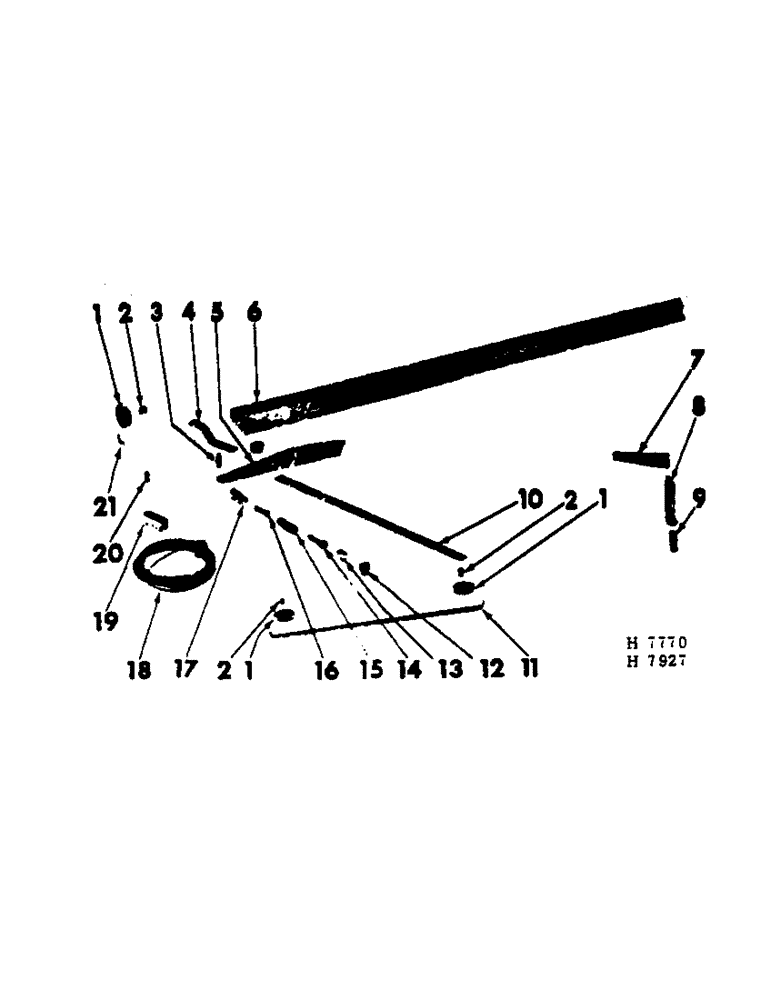

Запчасти Case IH 201 (D-024[A]) - REEL LIFT CABLE RIGHT HAND, PRIOR TO 1964 (58) - ATTACHMENTS/HEADERS

1

618954R1

PULLEY, reel lift cable

3шт.

2

618953R1

SPACER, cable pulley

3шт.

3

N42827

SPACER

reel stop bolt

1шт.

BOLT W/NUT, 7/16 x 2-3/4" mach

1шт.

LK-WASH, 7/16"

1шт.

4

607605R1

SUPPORT, reel stop

1шт.

BOLT W/NUT, 3/8 x 1-1/4" mach

1шт.

LK-WASH, 3/8"

1шт.

5

607698R11

ARM, reel cable support

1шт.

BOLT W/NUT, 1/2 x 2-1/4" crg

2шт.

LK-WASH, 1/2"

2шт.

6

ARM, reel lift support (refer to "reel support arm")

1шт.

7

608766R1

ANCHOR, hold-down spg

1шт.

BOLT W/NUT, 1/2 x 2-1/2" crg

2шт.

LK-WASH, 1/2"

2шт.

8

61A

SPRING, reel arm hold-down

1шт.

9

608767R1

BAR, hold-down spg lower

1шт.

608768R1

SPACER, lower bar

1шт.

BOLT W/NUT, 7/16 x 2-3/4" type 2

1шт.

WASH, 15/32 x 1 x 16 ga

1шт.

LK-WASH, 7/16"

1шт.

10

607611R1

BAR, outer support brace

1шт.

BOLT W/NUT, 3/8 x 1" mach

1шт.

LK-WASH, 3/8"

1шт.

11

607703R1

SUPPORT, cable pulley

1шт.

BOLT W/NUT, 7/16 x 2" mach

1шт.

BOLT W/NUT, 7/16 x 2-1/4" mach

1шт.

LK-WASH, 7/16"

2шт.

12

618987R91

CLIP W/BOLTS & NUTS, lift cable

1шт.

13

618988R1

THIMBLE, reel lift cable

1шт.

14

618051R1

EYEBOLT, reel lift cable

1шт.

19334R1

NUT,7/16"-20, G5, LH

7/16" special (LH thread)

1шт.

15

R185

TURNBUCKLE, lift cable

1шт.

16

618460R1

BOLT

cable turnbuckle

1шт.

NUT, 7/16"

1шт.

17

618060R1

YOKE, lift cable

1шт.

PIN, 3/8 x 1-1/4" std-hd dld

1шт.

WASH, 13/32 x 7/8 x 16 ga

2шт.

C-PIN, 1/8 x 3/4"

1шт.

18

607700R1

CABLE, 12 ft platform reel lift

1шт.

18

607701R1

CABLE, 16 ft platform reel lift

1шт.

19

607702R1

YOKE, reel lift cable

1шт.

PIN, 3/8 x 1-5/16" std-hd dld

1шт.

C-PIN, 1/8 x 3/4"

1шт.

20

519628R1

SPACER

cable yoke

1шт.

21

612126R1

CLIP, cable pulley guide

1шт.

BOLT W/NUT, 7/16 x 1-3/4" cd-pltd mach

1шт.

LK-WASH, 7/16"

1шт.
