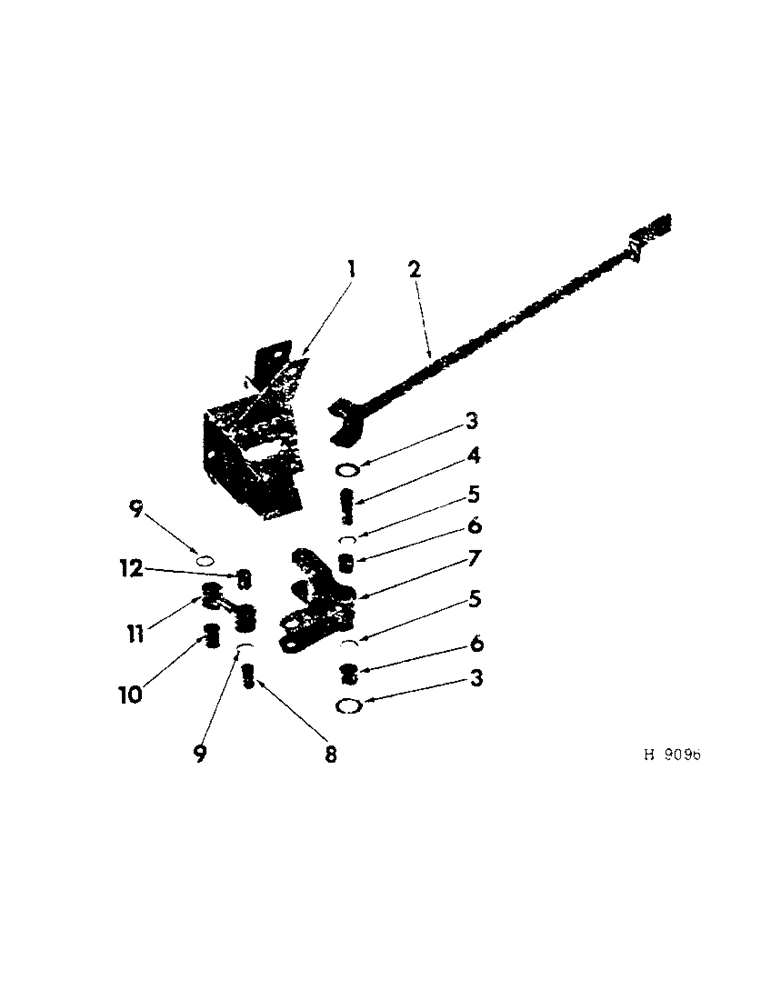

Запчасти Case IH 201 (D-023) - KNIFE BELLCRANK AND BRACE (58) - ATTACHMENTS/HEADERS

1

608735R91

BRACKET, bellcrank support

1шт.

BOLT W/NUT, 1/2 x 1-3/8" crg

4шт.

WASH, 17/32 x 1 x 16 ga

4шт.

LK-WASH, 1/2"

4шт.

2

608738R11

BRACE, bellcrank support

1шт.

BOLT W/NUT, 1/2 x 1-1/4" crg

2шт.

BOLT W/NUT, 3/8 x 1-1/8" crg

2шт.

LK-WASH, 3/8"

2шт.

LK-WASH, 1/2"

2шт.

3

552091R1

WASHER

1-5/32 x 2 x 22 ga

1шт.

4

608734R1

BUSHING

bellcrank pivot

1шт.

BOLT W/NUT, 3/4 x 5-1/2" type 2

1шт.

LK-WASH, 3/4"

1шт.

5

564808R91

WIPER

OIL SEAL, bellcrank stud

2шт.

6

142929H

NEEDLE BEARING,Needle, 28.56mm ID x 34.94mm OD x 25.4mm W

BEARING, knife drive bellcrank

2шт.

7

572982R11

LEVER

BELLCRANK, knife drive (includes 142929H, brg)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

8

565627R1

BUSHING

SLEEVE, bellcrank link pivot RH

1шт.

9

574238R91

SEAL

OIL SEAL, bellcrank link

2шт.

10

560388R91

COMPOSITE RING

BUSHING, bellcrank link RH

1шт.

11

610212R11

LINK, bellcrank (includes 565638R1 & 560388R91, bushings), Serial Range: (prior-1964)

1шт.

11

583796R11

DRAG LINK

LINK, bellcrank (includes 560388R91 & 565628R1, bushings) (1964 & since)

1шт.

BOLT W/NUT, 3/4 x 3" mach

2шт.

LK-WASH, 3/4"

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

LUB-FTG, 1/4"

1шт.

12

565628R1

BUSHING,25.43mm ID x 31.75mm OD x 28.65mm L

bellcrank link LH

1шт.
