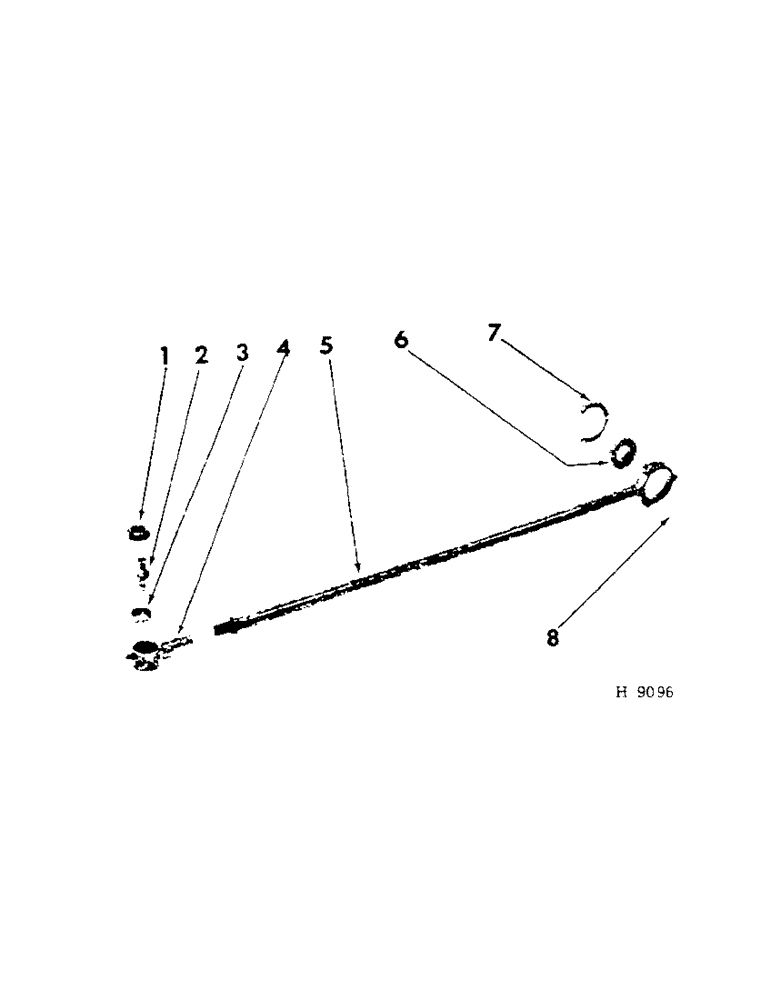

Запчасти Case IH 201 (D-023[A]) - KNIFE PITMAN AND BEARING (58) - ATTACHMENTS/HEADERS

1

572980R1

SEAT

drive ball upr

1шт.

2

572979R1

JOINT TURNING

BALL, knife drive

1шт.

336054R1

BOLT,Hex, 1/2" - 20 x 4", Gr 8

1/2-NF x 4" type 4

1шт.

NUT, 1/2"-NF

1шт.

LK-WASH, 1/2"

1шт.

3

572981R1

SEAT

drive ball lower

1шт.

4

572976R1

END

HOUSING, pitman ball

1шт.

16964R91

FITTING

LUB-FTG, 1/4" - 90deg. elbow

1шт.

SCREW, 5/16 x 3/4" sq-hd dog-pt set

1шт.

NUT, 5/16" jam

1шт.

5

608665R11

PITMAN, knife

1шт.

NUT, 7/8"-NF jam

1шт.

6

584148R91

BEARING ASSY,35mm ID x 72mm OD x 25mm W

BEARING, pitman arm

1шт.

7

611561R1

RETAINER

pitman brg

1шт.

BOLT W/NUT, 1/4 x 1-1/4" type 2

3шт.

LK-WASH, 1/4"

3шт.

8

26540D

RING, SNAP

RING, crankshaft retaining

1шт.
