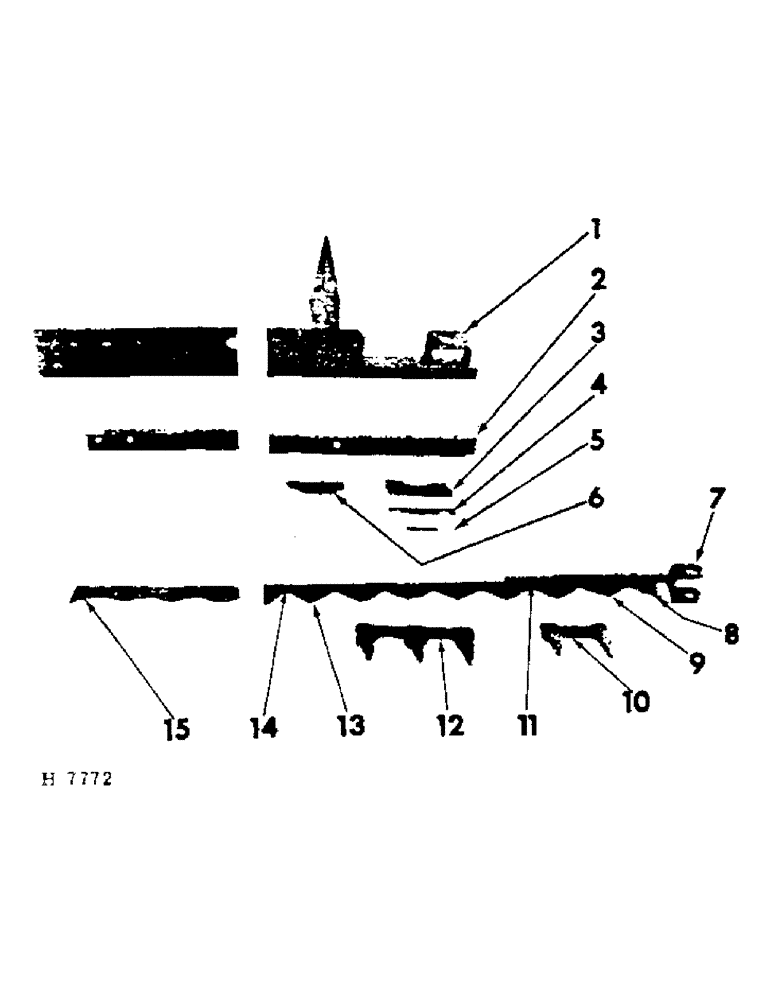

Запчасти Case IH 201 (D-022) - KNIFE (58) - ATTACHMENTS/HEADERS

1

608722R92

STONEGUARD, 12 ft platform

1шт.

1

608723R92

STONEGUARD, 16 ft platform

1шт.

BOLT W/NUT, 3/8 x 1" type 2 crg (4-12 ft; 6-16 ft)

1шт.

BOLT W/NUT, 7/16 x 1" crg

2шт.

LK-WASH, 3/8" (4-12 ft; 6-16 ft)

1шт.

LK-WASH, 7/16"

2шт.

2

607682R2

ANGLE, 12 ft guard, Serial Range: (prior-1965)

1шт.

2

591718R1

ANGLE, 12 ft guard (1965 & since)

1шт.

2

607683R2

ANGLE, 16 ft guard, Serial Range: (prior-1965)

1шт.

2

591719R1

ANGLE, 16 ft guard (1965 & since)

1шт.

BOLT W/NUT, 5/16 x 7/8" mach (10-12 ft; 15-16 ft)

1шт.

BOLT W/NUT, 5/16 x 7/8" crg

7шт.

LK-WASH, 5/16" (17-12 ft; 22-16 ft)

1шт.

3

2164K

GUIDE

CLIP, knife head guide, Serial Range: (prior-1964)

1шт.

BOLT W/NUT, 3/8 x 1-3/4" crg

2шт.

LK-WASH, 3/8"

2шт.

4

611417R1

SHIM, .1345 guide clip, Serial Range: (prior-1964)

1шт.

5

28437KB

SHIM, .0299 guide clip, Serial Range: (prior-1964)

3шт.

6

552082R1

GUIDE

CLIP, hold-down (9-12 ft; 12-16 ft)

1шт.

BOLT W/NUT, 3/8 x 1-1/4" crg (2 per clip)

1шт.

LK-WASH, 3/8" (2 per clip)

1шт.

7

607685R91

END, knife, Serial Range: (prior-1964)

1шт.

7

633428R91

HEAD

END, knife (1964 & since)

1шт.

RIVET, 1/2 x 15/16" ov-hd (prior, Serial Range: -1964)

7шт.

RIVET, 1/4 x 1" - 74deg. csk-hd (1964 & since)

8шт.

8

618017R1

KNIFE

SECTION, overserrated half LH (prior to 1964) (recommend ordering 608128R1, underserrated section)

1шт.

8

608128R1

KNIFE

SECTION, underserrated half LH, Serial Range: (prior-1964)

1шт.

RIVET, 1/2 x 15/16" no. 5 ov-hd

2шт.

8

608742R1

SECTION, underserrated half LH (1964 & since)

1шт.

RIVET, 1/4 x 1" - 74deg. csk-hd

2шт.

9

608744R1

SECTION, knife end (1964 & since)

1шт.

RIVET, 1/4 x 1" - 74deg. csk-hd

6шт.

10

663098R1

GUARD, double (23-12 ft; 31-16 ft)

1шт.

BOLT W/NUT, 3/8 x 1-1/4" crg

2шт.

LK-WASH, 3/8"

2шт.

11

560335R1

STRAP

SLIDE, knife end, Serial Range: (prior-1964)

1шт.

RIVET, 1/2 x 15/16" no. 5 ov-hd

5шт.

12

633240R1

GUARD

triple

1шт.

BOLT W/NUT, 3/8 x 1-1/4" crg

3шт.

LK-WASH, 3/8"

3шт.

13

618019R1

KNIFE SECTION

SECTION, overserrated (prior to 1964) (recommend ordering MA1389, underserrated section)

1шт.

13

MA1389

KNIFE SECTION

SECTION, underserrated (1964 & since)

1шт.

RIVET, 1/2 x 9/16" no. 5 ov-hd

2шт.

14

607687R92

KNIFE, 12 ft platform (prior to 1964) (includes 607685R91, end; 608128R1, 608129R1 & MA1389, sections; 560335R1, slide & 12712R1 & 14752R1, rivets)

1шт.

14

607688R91

KNIFE, 16 ft platform (prior to 1964) (includes 607685R91, end; 608128R1, 608129R1 & MA1389, sections; 560335R1, slide & 12712R1 & 14752R1, rivets)

1шт.

14

608741R91

KNIFE, 12 ft platform (1964 & since) (includes 633428R1, end; 608743R1, 608744R1, MA1389 & 608129R1, sections & 13982R1, 14768R1 & 14752R1, rivets)

1шт.

14

608742R91

KNIFE, 16 ft platform (1964 & since) (includes 633428R1, end; 608743R1, 608744R1, 608129R1 & MA1389, sections & 13982R1, 14752R1 & 14768R1, rivets)

1шт.

15

619097R1

KNIFE SECTION

SECTION, overserrated half RH (prior to 1964) (recommend ordering 608129R1, underserrated section)

1шт.

15

608129R1

KNIFE SECTION

SECTION, underserrated half RH (1964 & since)

1шт.

RIVET, 1/2 x 9/16" ov-hd

2шт.

634977R1

GUIDE

knife (1965 & since)

1шт.

BOLT W/NUT, 3/8 x 1-1/2" crg

2шт.

LK-WASH, 3/8"

2шт.
