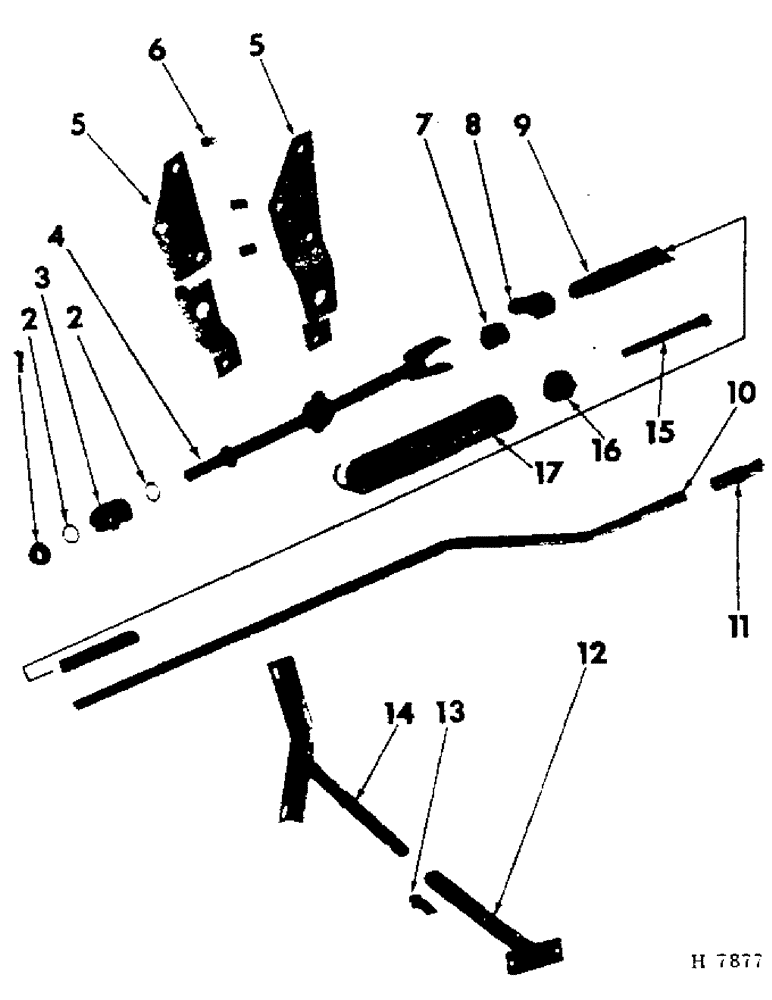

Запчасти Case IH 201 (D-021) - MANUAL REEL LIFT CRANK (58) - ATTACHMENTS/HEADERS

1

615891R1

COLLAR, crank swivel stop

1шт.

PIN, 5/16 x 1-1/2" std-hd dld

1шт.

C-PIN, 1/8 x 5/8"

1шт.

2

615192R1

WASHER

29/32 x 1-1/4 x 22 ga

2шт.

3

SA1578

SWIVEL, adjusting screw crank

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

4

607710R11

ADJUSTER, manual reel lift crank

1шт.

5

607708R1

BRACKET, support LH, Serial Range: (prior-1964)

1шт.

5

607709R1

BRACKET, support RH, Serial Range: (prior-1964)

1шт.

BOLT W/NUT, 7/16 x 1-3/4" mach

1шт.

BOLT W/NUT, 1/2 x 2-1/4" crg

2шт.

LK-WASH, 7/16"

1шт.

LK-WASH, 1/2"

2шт.

5

608757R1

BRACKET, support LH (1964 & since)

1шт.

5

608758R1

BRACKET, support RH (1964 & since)

1шт.

BOLT W/NUT, 7/16 x 1-3/8" mach

3шт.

LK-WASH, 7/16"

3шт.

6

519628R1

SPACER

bracket, Serial Range: (prior-1964)

3шт.

7

F9217

KNUCKLE, reel lift crank

1шт.

PIN, 7/16 x 2-3/16" std-hd dld

1шт.

PIN, 7/16 x 2-1/2" std-hd dld

1шт.

C-PIN, 3/16 x 7/8"

2шт.

8

F9284

YOKE, reel lift crank

1шт.

PIN, 5/16 x 1-5/8" std-hd dld

1шт.

C-PIN, 1/8 x 5/8"

1шт.

9

607711R91

PIPE, adjustable crank

1шт.

10

607713R1

CRANK, reel lift

1шт.

BOLT W/NUT, 5/16 x 1-1/2" cd-pltd mach

2шт.

LK-WASH, 5/16"

2шт.

11

607714R1

GRIP, crank control

1шт.

12

607715R91

STANDARD, crank, Serial Range: (prior-1964)

1шт.

12

608759R91

STANDAD, crank (1964 & since)

1шт.

BOLT W/NUT, 3/8 x 1" crg, Serial Range: (prior-1964)

2шт.

BOLT W/NUT, 1/2 x 1-1/4" mach (1964 & since)

2шт.

LK-WASH, 3/8"

2шт.

LK-WASH, 1/2"

2шт.

13

607729R1

STRIP, tractor hose support

1шт.

SCREW, 3/8 x 1-1/4" sq-hd cup-pt set

2шт.

NUT, 3/8" jam

2шт.

14

607718R91

PIPE, crank adjustable

1шт.

15

602611R1

BOLT, helper spg plug

1шт.

NUT, 1/2" jam

1шт.

16

600030R1

PLUG, helper spg

1шт.

17

600031R1

SPRING, reel lift helper

1шт.
