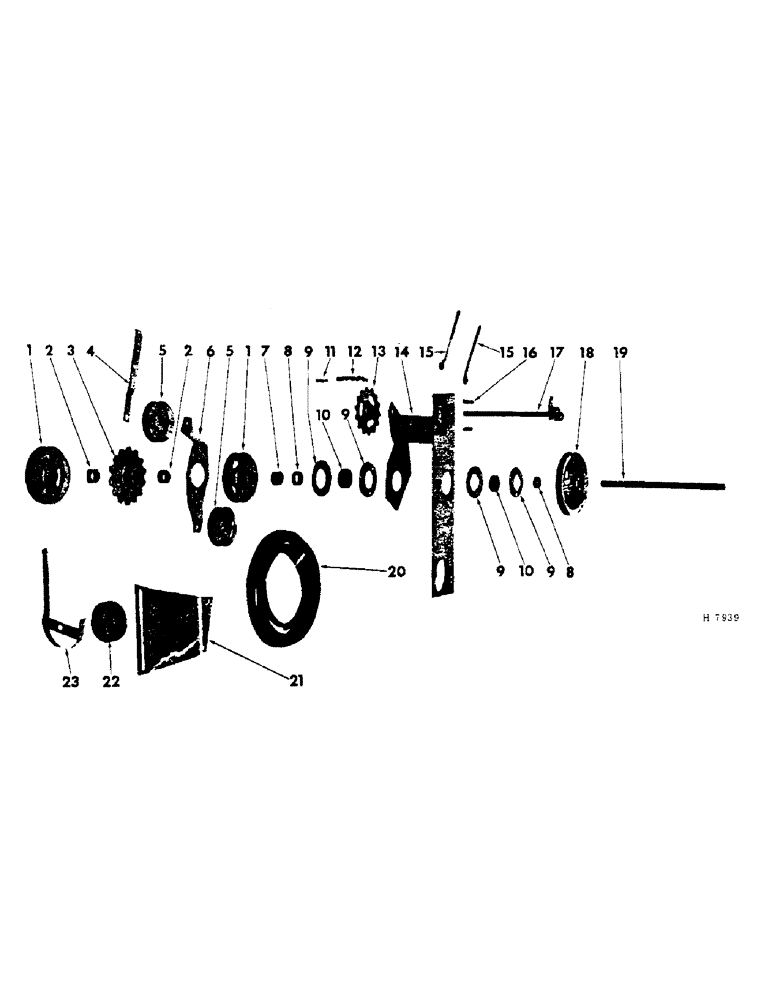

Запчасти Case IH 201 (D-020) - SWATH DRIVE, DOUBLE SWATH ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

607819R1

PULLEY, reverse drive

2шт.

117077

KEY, 5/16 x 1" woodruff

2шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

PIN, 1/4 x 1-3/4" hv-coiled-spg

1шт.

WASH, 1-7/32 x 1-3/4 x 16 ga cd-pltd

1шт.

WASH, 1-7/32 x 1-3/4 x 22 ga cd-pltd

1шт.

2

607821R1

BUSHING, reverse drive sprocket

2шт.

3

607820R11

SPROCKET, reverse drive (includes 607821R1, bush)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

BOLT W/NUT, 3/8 x 1-1/2" cd-pltd mach

2шт.

LK-WASH, 3/8" cd-pltd

2шт.

4

607824R1

BRACE, idler pulley

1шт.

BOLT W/NUT, 1/2 x 2" cd-pltd mach

1шт.

WASH, 17/32 x 1 x 11 ga cd-pltd

1шт.

LK-WASH, 1/2" cd-pltd

1шт.

5

567872R91

PULLEY

reverse drive idler

2шт.

BOLT W/NUT, 1/2 x 1-3/4" cd-pltd mach (lower)

1шт.

BOLT W/NUT, 1/2 x 2-1/4" cd-pltd mach (upper)

1шт.

WASH, 17/32 x 1 x 11 ga cd-pltd

2шт.

LK-WASH, 1/2" cd-pltd

2шт.

6

607823R1

BRACKET, reverse drive idler

1шт.

BOLT W/NUT, 3/8 x 1-1/2" cd-pltd mach

2шт.

LK-WASH, 3/8" cd-pltd

2шт.

7

607653R1

COLLAR, driveshaft locating

1шт.

8

557117R11

COLLAR

COLLAR, brg locking (includes 115321, screw) (use w/566634R91, brg)

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

2шт.

8

613943R11

COLLAR

brg locking (includes 115321, screw) (use w/613942R91, brg)

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

2шт.

9

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

TTE, brg

4шт.

BOLT W/NUT, 3/8 x 1" no. 3 cd-pltd plow

6шт.

LK-WASH, 3/8" cd-pltd

6шт.

10

566634R91

BEARING

driveshaft (use w/557117R11, collar)

2шт.

10

613942R91

BEARING

driveshaft (use w/613943R11, collar)

2шт.

11

1358D

CONNECTING LINK

LINK, drive chain connecting

1шт.

1390D

PIN

C-PIN, 1/4 lb pkg

1шт.

12

CHAIN, 1-1/4" extended pitch drive (for service order 1-1797D, 10 ft length of chain, reduce to 27 links & add 1-1358D, connecting link)

1шт.

13

607831R1

SPROCKET, control shaft

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

1шт.

14

607812R91

BRACKET, adjusting

1шт.

BOLT W/NUT, 3/8 x 1" cd-pltd crg

4шт.

BOLT W/NUT, 3/8 x 1-1/4" cd-pltd crg

3шт.

WASH, 13/32 x 1 x 16 ga cd-pltd

1шт.

LK-WASH, 3/8" cd-pltd

1шт.

15

607656R1

BOLT, driveshaft tightener

2шт.

WASH, 15/32 x 1 x 16 ga cd-pltd

1шт.

NUT, 7/16" cd-pltd

4шт.

BOLT W/NUT, 3/8 x 1-1/4" cd-pltd crg

2шт.

LK-WASH, 3/8" cd-pltd

2шт.

16

635309R2

BOLT,Spcl Hex, 3/8" - 16 x 1 3/4"

reverse drive stop bar

2шт.

NUT, 3/8" cd-pltd

4шт.

17

607828R91

SHAFT, reverse drive control

1шт.

178375

WASH, 25/32 x 1-1/4 x 16 ga cd-pltd

1шт.

C-PIN, 3/16 x 1-1/4"

1шт.

18

607657R1

PULLEY, main drive

1шт.

KEY, 5/16 x 1" woodruff

1шт.

19

607818R1

SHAFT, main drive

1шт.

20

608890R1

BELT,0.63" W x 174.30" L

V-BELT , Platform swath drive 0.63" W x 174.30" L

1шт.

20

18413KA

BELT,0.66" W x 146.17" L

V-BELT , Platform swath drive (When equipped w/extension) 0.66" W x 146.17" L

1шт.

21

607825R1

BRACKET, idler pulley tightener

1шт.

BOLT W/NUT, 3/8 x 7/8" cd-pltd crg

2шт.

LK-WASH, 3/8" cd-pltd

2шт.

22

567872R91

PULLEY

reverse drive tightener

1шт.

BOLT W/NUT, 1/2 x 2-1/4" cd-pltd crg

1шт.

WASH, 17/32 x 1 x 11 ga cd-pltd

2шт.

LK-WASH, 1/2" cd-pltd

1шт.

23

607826R11

SHIELD, tightener pulley

1шт.

BOLT W/NUT, 1/2 x 2-1/4" cd-pltd crg

1шт.

WASH, 17/32 x 1 x 11 ga cd-pltd

2шт.

LK-WASH, 1/2" cd-pltd

1шт.
