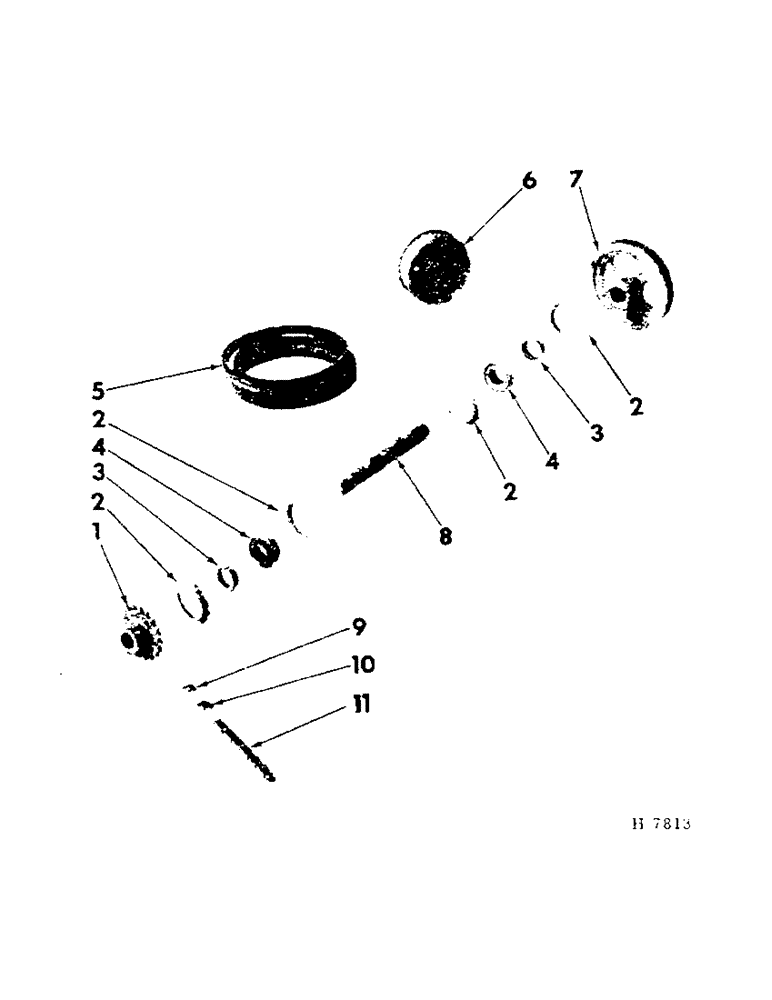

Запчасти Case IH 201 (D-019) - PLATFORM DRIVE ROLLER JACKSHAFT (58) - ATTACHMENTS/HEADERS

1

607672R11

SPROCKET, jackshaft driven

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

1шт.

2

612031R1

FLANGED BEARING

TTE, brg

4шт.

BOLT W/NUT, 5/16 x 3/4" mach

2шт.

BOLT W/NUT, 5/16 x 3/4" crg

2шт.

LK-WASH, 5/16"

4шт.

3

455102R11

COLLAR

brg locking (includes 102569, screw) (use w/455965R91, brg)

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4" hdls cup-pt set

2шт.

3

610541R11

COLLAR

brg locking (includes 102569, screw) (use w/610540R91, brg)

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4" hdls cup-pt set

2шт.

4

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

jackshaft (use w/455102R11, collar)

2шт.

4

610540R91

BEARING

jackshaft (use w/610541R11, collar)

2шт.

5

25079K

BELT,0.66" W x 68.17" L

V-BELT , Jackshaft drive 0.66" W x 68.17" L

1шт.

6

559292R92

NO LONGER SERVICED

PULLEY, drive belt, Serial Range: (prior-1964)

1шт.

6

566518R91

PULLEY,152.4mm Idler Dia x 171.45mm OD x 38.1mm W

drive belt (1964 & since)

1шт.

M83536

WASHER

WASH, 17/32 sq-hole x 1-1/4 x 11 ga

5шт.

BOLT W/NUT, 1/2 x 2-1/4" crg

1шт.

LK-WASH, 1/2"

1шт.

7

607667R1

PULLEY, jackshaft drive

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

1шт.

8

607671R1

SHAFT, jackshaft drive

1шт.

9

1301D

CHAIN LINK

LINK, chain connecting

1шт.

1759D

CLIP, connecting link

1шт.

10

1303D

LINK

chain offset

2шт.

1304D

PIN, off-set link

2шт.

1390D

PIN

C-PIN, 1/4 lb pkg

2шт.

11

CHAIN, 1/2" pitch roller drive (for service order 1-1790d, 10 ft length of chain, reduce to 81 links, add 1-1301D, connecting link & 2-1303D, offset links)

1шт.
