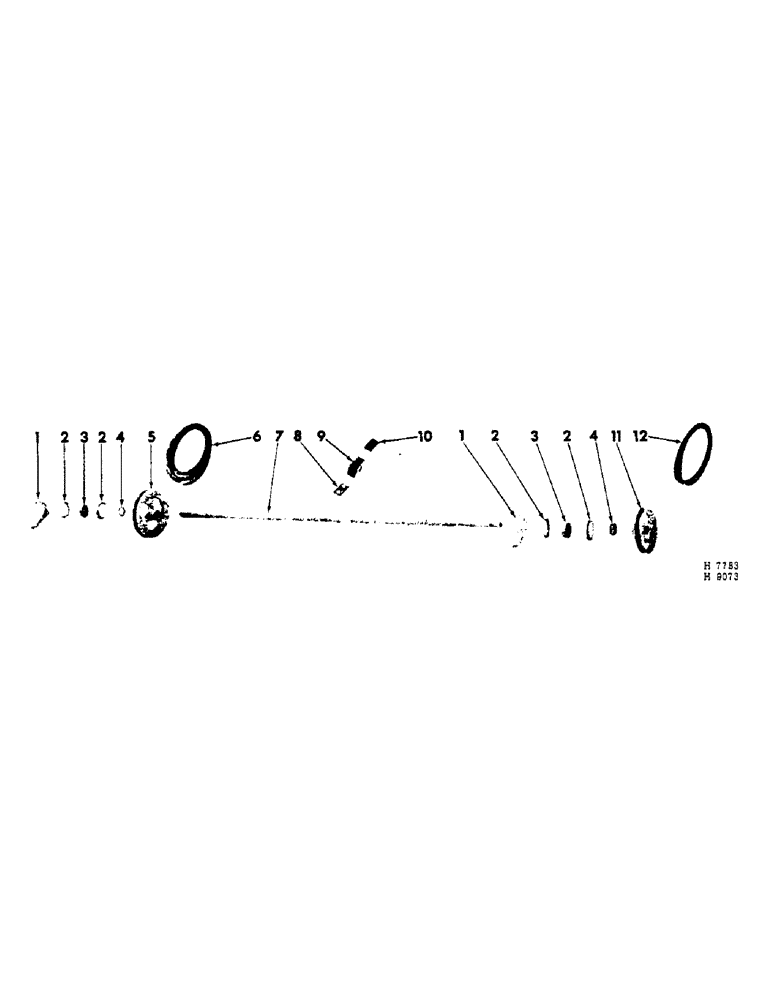

Запчасти Case IH 201 (D-018) - COUNTERSHAFT (58) - ATTACHMENTS/HEADERS

1

607670R1

BRACKET, shaft brg support

2шт.

BOLT W/NUT, 3/8 x 3/4" crg

4шт.

LK-WASH, 3/8"

4шт.

2

612031R1

FLANGED BEARING

TTE, countershaft brg

4шт.

BOLT W/NUT, 5/16 x 3/4" crg

4шт.

LK-WASH, 5/16"

4шт.

3

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

shaft (w/455102R11, collar)

2шт.

3

610540R91

BEARING

shaft w/610541R11, collar)

2шт.

4

455102R11

COLLAR

brg locking (includes 102569, screw) (w/455965R91, brg)

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4" hdls cup-pt set

2шт.

5

607669R1

PULLEY, countershaft driven

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

1шт.

6

25079K

BELT,0.66" W x 68.17" L

V-BELT , Platform roller drive 0.66" W x 68.17" L

1шт.

7

607668R1

COUNTERSHAFT

1шт.

8

608733R1

STRIP, brg lower

1шт.

9

608731R1

BLOCK, pilot brg

1шт.

10

608732R1

STRIP, brg upr

1шт.

Q3618

LUBE NIPPLE,5/16"-32 x .66 lg

LUB-FTG, 5/16"-NF

1шт.

BOLT W/NUT, 3/8 x 2-3/4" cd-pltd mach

2шт.

WASH, 13/32 x 1 x 16 ga cd-pltd

2шт.

LK-WASH, 3/8"

2шт.

11

607667R1

PULLEY, countershaft drive

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

1шт.

12

607666R1

V-BELT,0.63" W

Countershaft drive 0.63" W

1шт.

608713R1

SUPPORT, countershaft pilot brg block (welded to main frame, but available from service for machines built prior to 1964 season)

1шт.
