(A-013[A]) - OIL PRESSURE GAUGE LINE

Запчасти Case IH 201 (A-013[A]) - OIL PRESSURE GAUGE LINE (10) - ENGINE

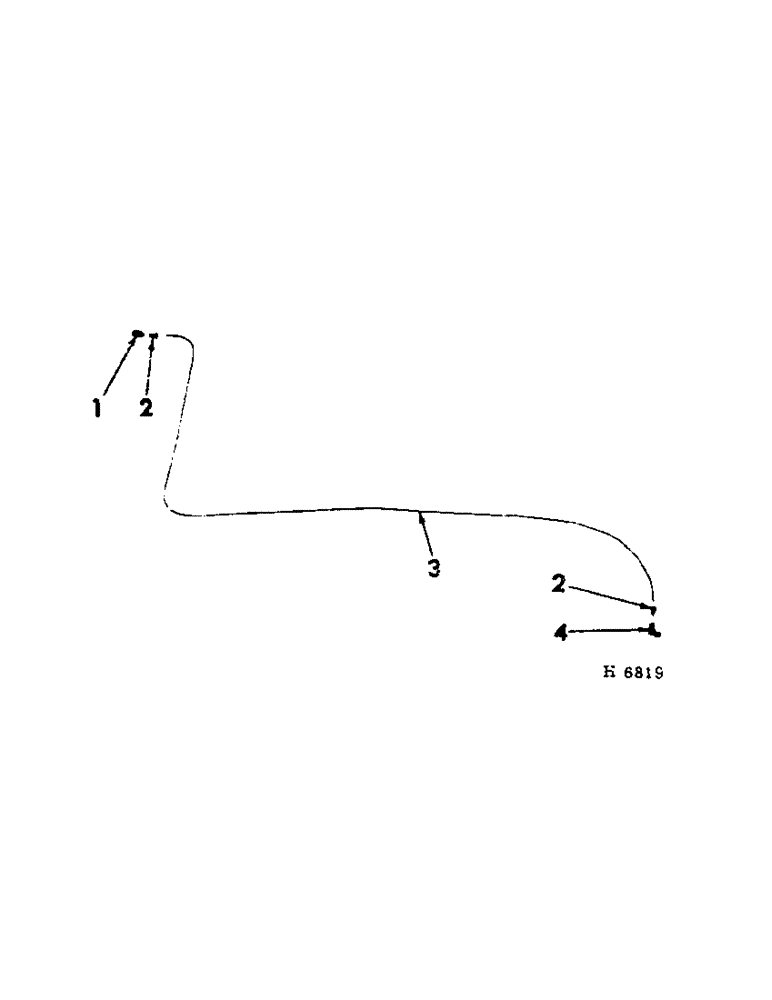

Схема запчастей Case IH 201 - (A-013[A]) - OIL PRESSURE GAUGE LINE (10) - ENGINE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

257523R1

HYD CONNECTOR,1/8" NPT x 7/16" - 16 ORB

CONNECTOR, oil pressure indicator

1шт.

2

222-502

TUBE NUT,7/16"-24

NUT, oil pressure line

2шт.

3

612313R1

LINE, oil pressure

1шт.

4

30402D

ELBOW,90 Degree x 1/8" NPT x 7/16"-24

oil pressure line

1шт.
