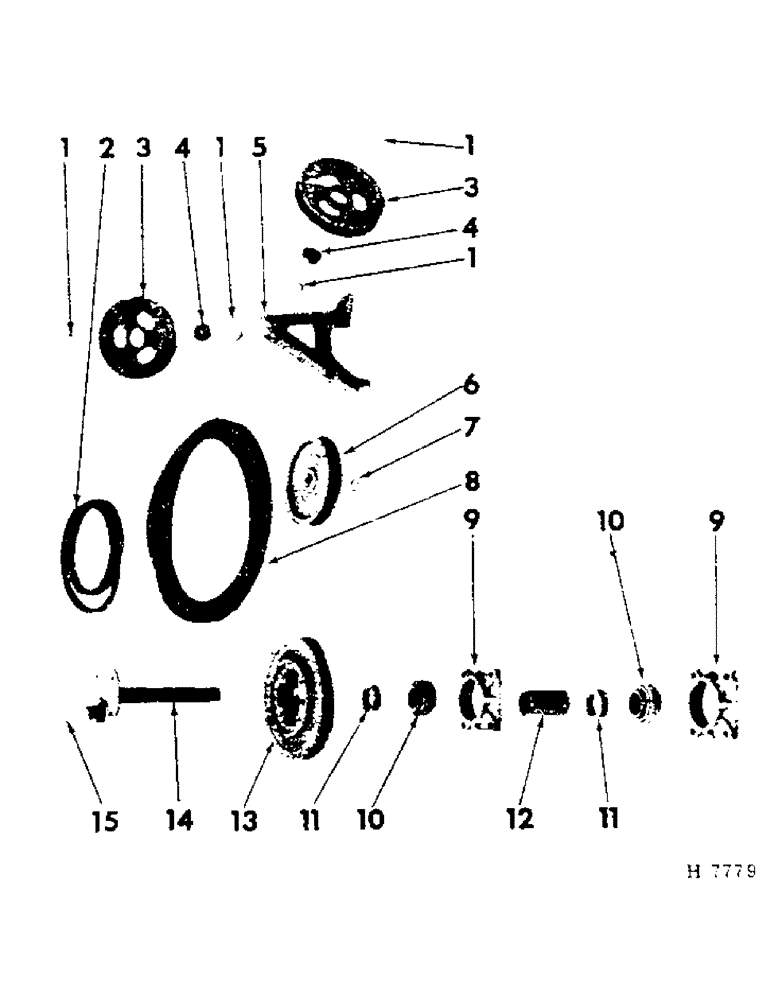

Запчасти Case IH 201 (D-017) - PITMAN CRANKSHAFT AND DRIVE (58) - ATTACHMENTS/HEADERS

1

133213R1

SNAP RING,1.562", Int, #156

Ring, Snap, , idler pulley brg 1.562", Int, #156

4шт.

2

607666R1

V-BELT,0.63" W

Reel & countershaft drive 0.63" W

1шт.

3

607660R1

PULLEY, main drive idler

2шт.

BOLT, 1/2 x 1-3/8" type 2

2шт.

LK-WASH, 1/2"

2шт.

4

613863R91

BEARING

idler pulley (opt w/611928R91 or 608372R91, brg)

2шт.

4

611928R91

BALL BEARING,13 mm ID x 40 mm OD x 18 mm

idler pulley (opt w/613863R91 or 608372R91, brg)

2шт.

4

608372R91

BEARING

idler pulley (opt w/613863R91 or 611928R91, brg)

2шт.

5

607659R2

SUPPORT, 540 RPM idler pulley

1шт.

5

608887R1

SUPPORT, 1000 RPM idler pulley

1шт.

BOLT W/NUT, 3/8 x 1" crg

2шт.

BOLT W/NUT, 3/8 x 1-1/8" crg

2шт.

LK-WASH, 3/8"

4шт.

6

566519R91

PULLEY

countershaft drive belt idler

1шт.

BOLT W/NUT, 1/2 x 2-1/4" crg

1шт.

LK-WASH, 1/2"

1шт.

7

M83536

WASHER

17/32 sq-hole x 1-1/4 x 11 ga

2шт.

8

607658R1

V-BELT,0.88" W x 148.20" L

Main drive 0.88" W x 148.20" L

1шт.

9

607332R1

HOUSING

pitman crankshaft brg

2шт.

BOLT W/NUT, 3/8 x 1-3/8" type 2

4шт.

BOLT W/NUT, 3/8 x 1-1/2" type 2

4шт.

LK-WASH, 3/8"

8шт.

10

611583R91

BALL BEARING

BEARING, crankshaft (opt w/608374R91, brg)

2шт.

10

608374R91

BEARING

crankshaft (opt w/611583R91, brg)

2шт.

11

517645R11

COLLAR

brg locking (includes 102592, screw) (opt w/573850R11, collar)

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

2шт.

11

573850R11

COLLAR

brg locking (includes 102592, screw) (opt w/517645R11, collar)

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

2шт.

12

607665R1

SPACER, crankshaft brg (not used when machine equipped w/rear delivery)

1шт.

617941R1

PIN,5/16" x 2", Coiled

1шт.

13

607661R1

PULLEY, 540 RPM flywheel, Serial Range: (prior-1965)

1шт.

13

591721R1

PULLEY, 540 RPM flywheel (1965 & since)

1шт.

13

608888R1

PULLEY, 1000 RPM flywheel, Serial Range: (prior-1965)

1шт.

13

591723R1

PULLEY, 1000 RPM flywheel (1965 & since)

1шт.

Q3498

WASHER

KEY, 3/8 x 1-5/8" sq-gib-hd

1шт.

14

CRANKSHAFT, knife pitman (prior to 1965 order 1-591720R1, crankshaft; 1-Q3948, key & 1-591721R1, 540 RPM pulley or 1-591723R1, 1000 RPM pulley)

1шт.

14

591720R1

CRANKSHAFT, knife pitman (1965 & since)

1шт.

BOLT, 3/8 x 1" mach

4шт.

LK-WASH, 3/8"

4шт.

15

26540D

RING, SNAP

RING, crankshaft stud locking

1шт.
