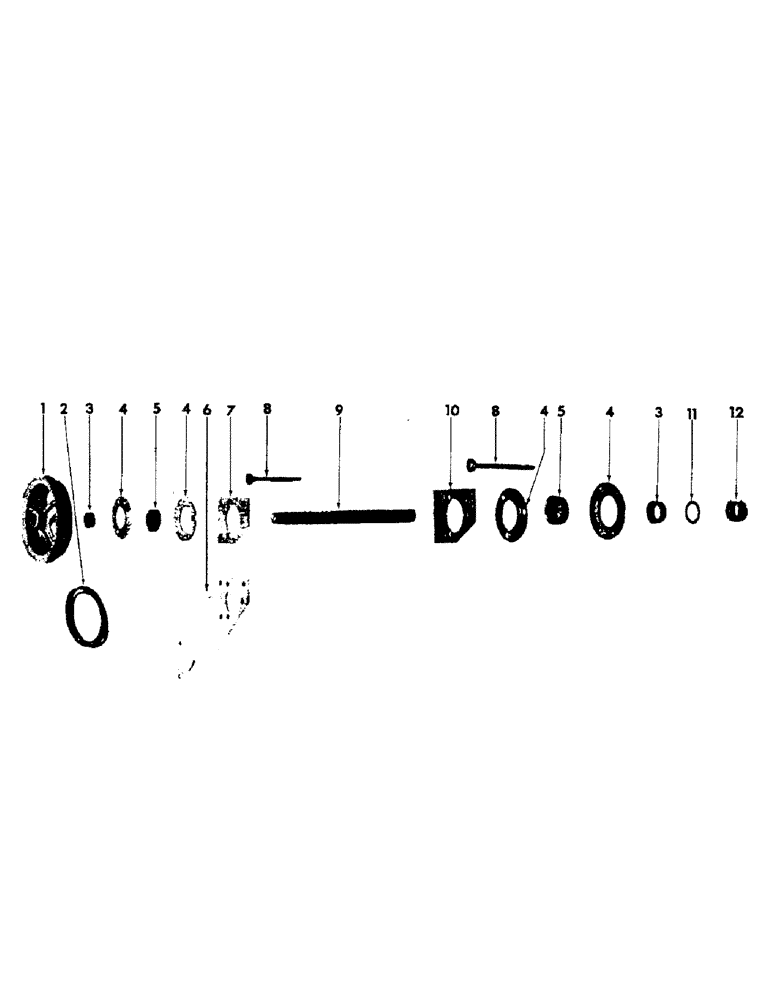

Запчасти Case IH 201 (D-016) - MAIN DRIVE (58) - ATTACHMENTS/HEADERS

1

607657R1

PULLEY, 540 RPM main drive

1шт.

1

608888R1

PULLEY, 1000 RPM main drive

1шт.

KEY, 5/16 x 1" woodruff

1шт.

2

607658R1

V-BELT,0.88" W x 148.20" L

Main drive 0.88" W x 148.20" L

1шт.

3

557117R11

COLLAR

COLLAR, brg locking (includes 115321, screw) (use w/566634R91, brg)

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

2шт.

3

613943R21

COLLAR

brg locking (includes 115321, screw) (use w/592703R91, brg)

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

2шт.

4

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

TTE, brg

4шт.

BOLT W/NUT, 3/8 x 1" no. 3 cd-pltd plow

6шт.

LK-WASH, 3/8" cd-pltd

6шт.

5

566634R91

BEARING

drive shaft (use w/557117R11, collar)

2шт.

5

592703R91

BEARING

drive shaft (use w/613943R21, collar)

2шт.

6

607747R1

PLATE, adjusting & hyd pump mounting (when machine equipped w/self-contained hyd reel lift & platform lift)

1шт.

BOLT W/NUT, 3/8 x 1" cd-pltd crg

2шт.

BOLT W/NUT, 3/8 x 1-1/4" cd-pltd crg

1шт.

LK-WASH, 3/8" cd-pltd

3шт.

7

607654R1

PLATE, adjusting front (when machine equipped w/manual reel lift & remote control platform lift or when equipped w/tractor controlled hyd reel lift & platform lift)

1шт.

BOLT W/NUT, 3/8 x 1" cd-pltd crg

2шт.

BOLT W/NUT, 3/8 x 1-1/4" cd-pltd crg

1шт.

LK-WASH, 3/8" cd-pltd

3шт.

8

607656R1

BOLT, driveshaft tightener

2шт.

452815R1

SPACER, tightener bolt

1шт.

WASH, 15/32 x 1 x 16 ga cd-pltd

2шт.

NUT, 7/16" cd-pltd

4шт.

9

607652R1

SHAFT, main drive

1шт.

10

607655R1

BLOCK, adjusting rear

1шт.

BOLT W/NUT, 3/8 x 1" cd-pltd crg

2шт.

BOLT W/NUT, 3/8 x 1-1/4" cd-pltd crg

1шт.

LK-WASH, 3/8" cd-pltd

3шт.

11

607890R1

WASHER

1-7/32 x 1-3/4 x 16 ga cd-pltd

1шт.

12

607653R1

COLLAR, driveshaft locating

1шт.

19795R1

PIN,1/4" x 1 3/4", Coiled

1шт.

452815R1

SPACER, tightener bolt

1шт.
