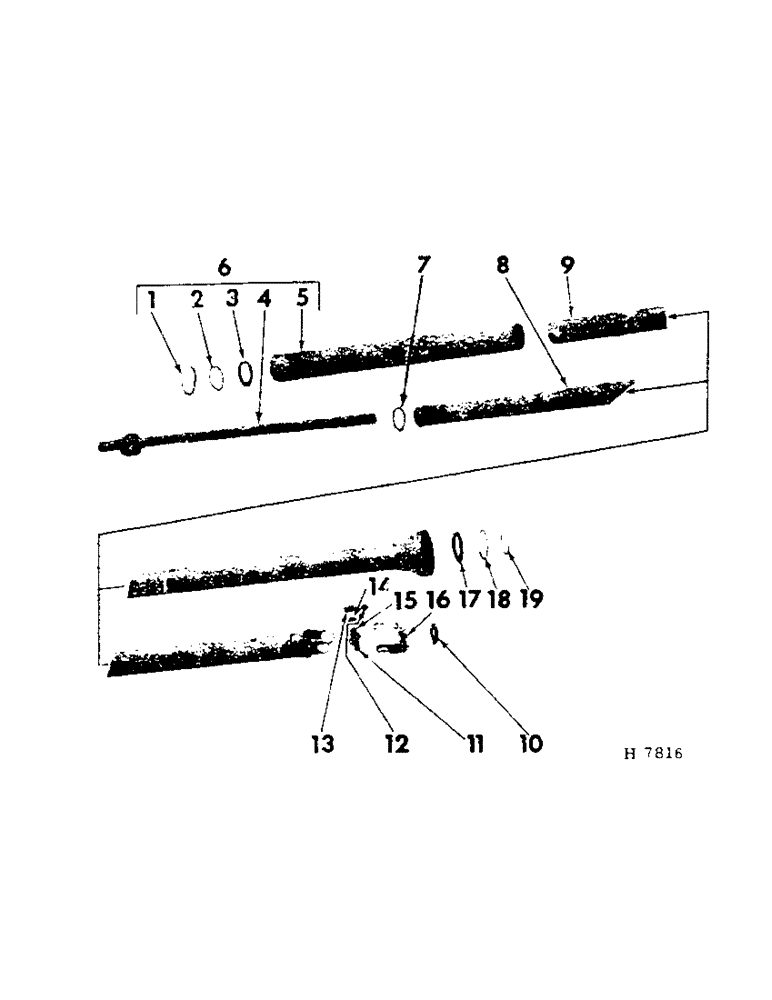

Запчасти Case IH 201 (D-015) - POWER TAKE-OFF, 540 RPM, ROCKWELL-STANDARD (58) - ATTACHMENTS/HEADERS

1

613436R1

CLAMP

RING, snap

1шт.

2

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

brg thrust

1шт.

3

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

nylon

1шт.

4

607447R91

SHAFT, stub brg

1шт.

5

607886R91

SHIELD, propeller shaft outer

1шт.

6

607572R91

SHAFT, pto front (includes parts within bracket)

1шт.

7

613439R1

BRACKET

BEARING, nylon support

1шт.

8

607448R91

YOKE & TUBE, pto shaft 2.25" OD, 107.875" Length

1шт.

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

LUB-FTG, 1/4"

2шт.

9

607449R91

SHIELD, propeller shaft inner

1шт.

10

B12219

WASHER

knuckle rear

1шт.

11

659262R91

U-JOINT SPIDER

CROSS ASSEMBLY, pto shaft center composed of: (4) bearing 661655R91, (1) cross (NSS), (1) fitting 109460, (4) oil seal 661656R1, (4) ring 661657R1

1шт.

12

661657R1

RING

center cross snap

4шт.

13

661655R91

BEARING ASSY,0.59375" ID x 1.0625" OD x 0.4375"

center cross needle

4шт.

14

661656R1

SEAL, center cross cork

4шт.

15

CROSS, center (order 1-659262R91, cross) (NSS)

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

LUB-FTG, 1/8"-65 deg. elbow

1шт.

16

580036R1

YOKE, pto 1" threaded rear

1шт.

17

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

nylon

1шт.

18

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

brg thrust

1шт.

19

613436R1

CLAMP

RING, snap

1шт.

20

607573R91

SHAFT, pto rear (includes parts reference no's 11 to 19, inclusive)

1шт.

608884R91

SHAFT, pto (opt w/609051R91, shaft) (includes parts listed below)

1шт.
