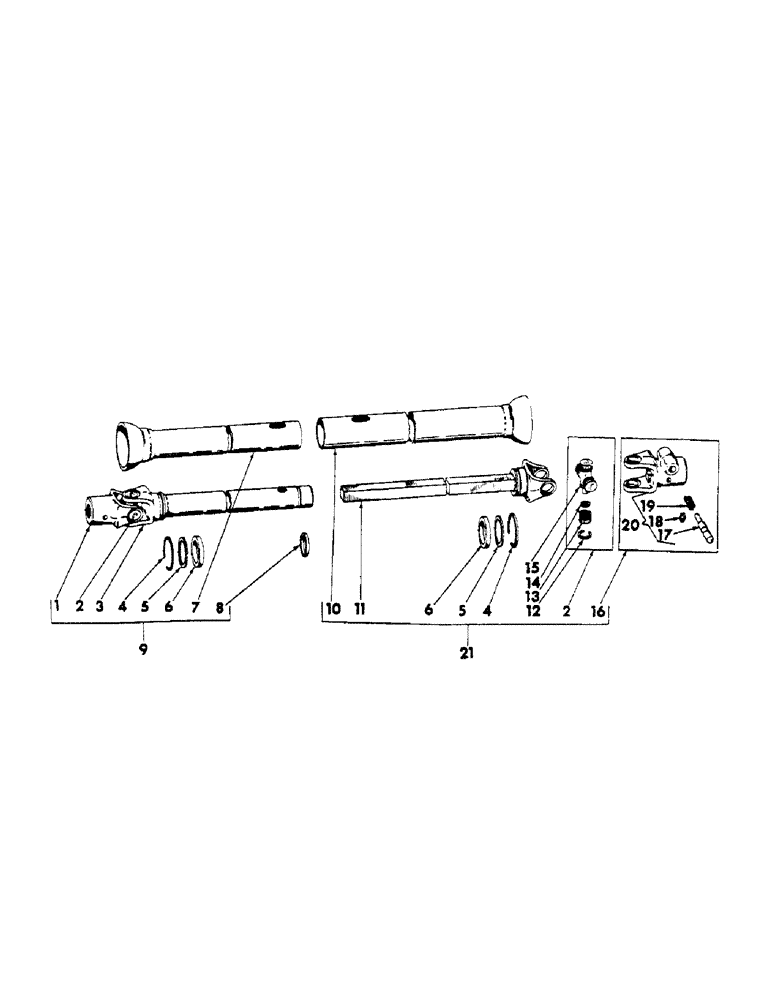

Запчасти Case IH 201 (D-012) - UNIVERSAL JOINT, 1000 RPM, ROCKWELL-STANDARD (58) - ATTACHMENTS/HEADERS

1

460902R11

YOKE

joint rear (includes 114498, nut & 38904K, screw)

1шт.

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW, 1/2 x 1-13/16" sq-hd cup-pt set

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2"-NF jam

1шт.

2

659262R91

U-JOINT SPIDER

CROSS ASSEMBLY, universal center composed of: (4) bearing 661655R91, (1) cross (NSS), (1) fitting 109460, (4) ring 661657R1, (4) seal 661656R1

2шт.

3

464918R91

TUBE

YOKE & TUBE, rear

1шт.

4

613436R1

CLAMP

RING, shield retaining

2шт.

5

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

brg thrust

2шт.

6

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

nylon

2шт.

7

464919R1

SHIELD

inner rear

1шт.

8

613439R1

BRACKET

SUPPORT, shield rear nylon

1шт.

9

464917R91

JOINT, universal rear (includes parts listed within bracket)

1шт.

10

464916R1

SHIELD

outer front

1шт.

11

464915R1

YOKE

& SHAFT, front

1шт.

12

661657R1

RING

brg snap

8шт.

13

661655R91

BEARING ASSY,0.59375" ID x 1.0625" OD x 0.4375"

center cross needle

8шт.

14

661656R1

OIL SEAL, center cross cork

8шт.

15

CROSS, center (order 1-659262R91, cross) (NSS)

2шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

LUB-FTG, 1/8"-65 deg. elbow

2шт.

16

613431R91

YOKE, quick-detachable front (includes 611976R91, pin)

1шт.

17

PIN, detachable yoke (order 1- R91, pin) (NSS)

1шт.

18

6140R1

WASHER, pin lock

1шт.

19

587479R1

SPRING

yoke lock pin

1шт.

20

631976R91

PIN

yoke release (includes 587479R1, spg & 661406R1, wash)

1шт.

21

474224R91

JOINT, universal front (includes parts listed within bracket)

1шт.
