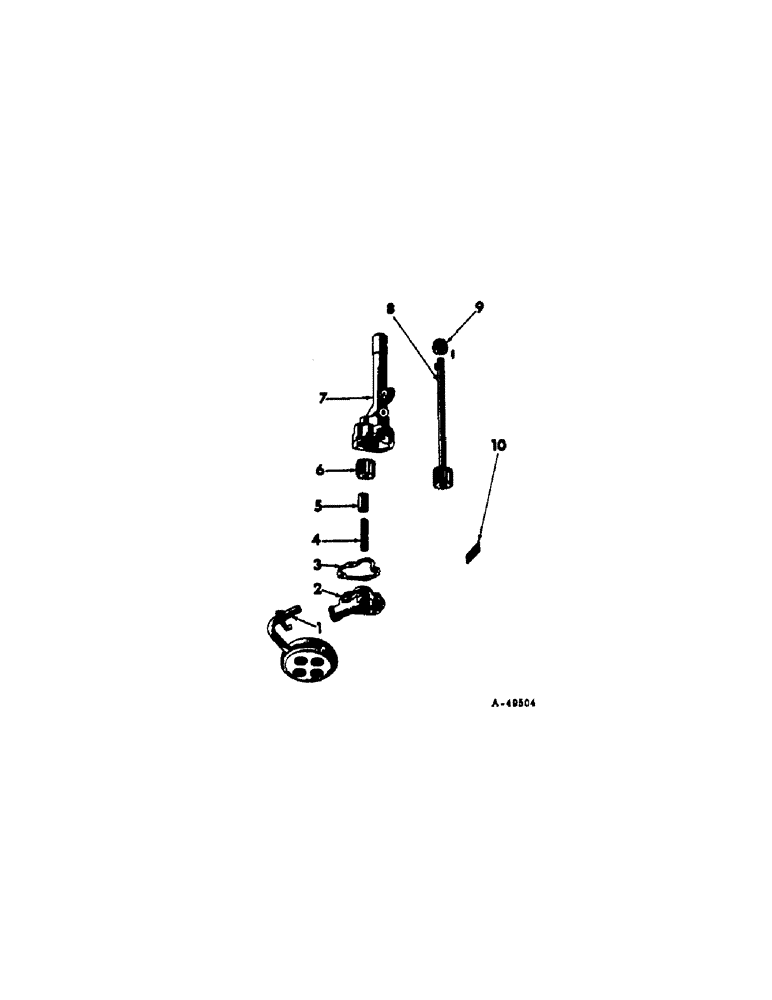

Запчасти Case IH 201 (A-012) - CRANKCASE OIL PUMP (10) - ENGINE

375785R91

PUMP

OIL (composed of all parts listed below, unless otherwise noted)

1шт.

BOLT, 3/8 x 1-3/4" TYPE 2

2шт.

Not part of oil pump

1шт.

PLUG, 1/8" SQ-HD PIPE

1шт.

Not part of oil pump

1шт.

1

368979R91

SCREEN

oil pump

1шт.

C-PIN, 1/8 x 1-1/4"

1шт.

2

6098DA

OIL RESERVOIR

COVER, oil pump

1шт.

BOLT, 5/16 x 3/4" type 2

4шт.

LK-WASH, 5/16"

4шт.

3

375786R1

GASKET

pump cover (as req'd)

1шт.

4

43414DA

VALVE SPRING

SPRING, oil pressure

1шт.

5

357648R1

LOCK VALVE

VALVE, oil pressure

1шт.

6

35631H

GEAR

idler (prior to serial no. 35258)

1шт.

6

227713R1

GEAR WHEEL

GEAR, idler (serial no. 35258 & up)

1шт.

7

BODY, pump (order 1-375875R91, pump) (NSS)

1шт.

35647H

SHAFT

pump idler

1шт.

BOLT, 3/8 x 1-3/4" type 2

2шт.

PLUG, 1/8" sq-hd pipe

1шт.

8

365377R91

SHAFT

gear (prior to serial no. 35258)

1шт.

8

375789R91

SHAFT

gear (serial no. 35258 & up)

1шт.

9

352057R1

GEAR

shaft spirol

1шт.

112011

PIN,1/8" x 7/8"

1/8 x 7/8" sq-end straight

1шт.

NLS

NO LONGER SERVICED

1/8 x 5/8" woodruff

1шт.

10

46629D

LOCK

oil pump screw

1шт.

Not part of oil pump

1шт.
