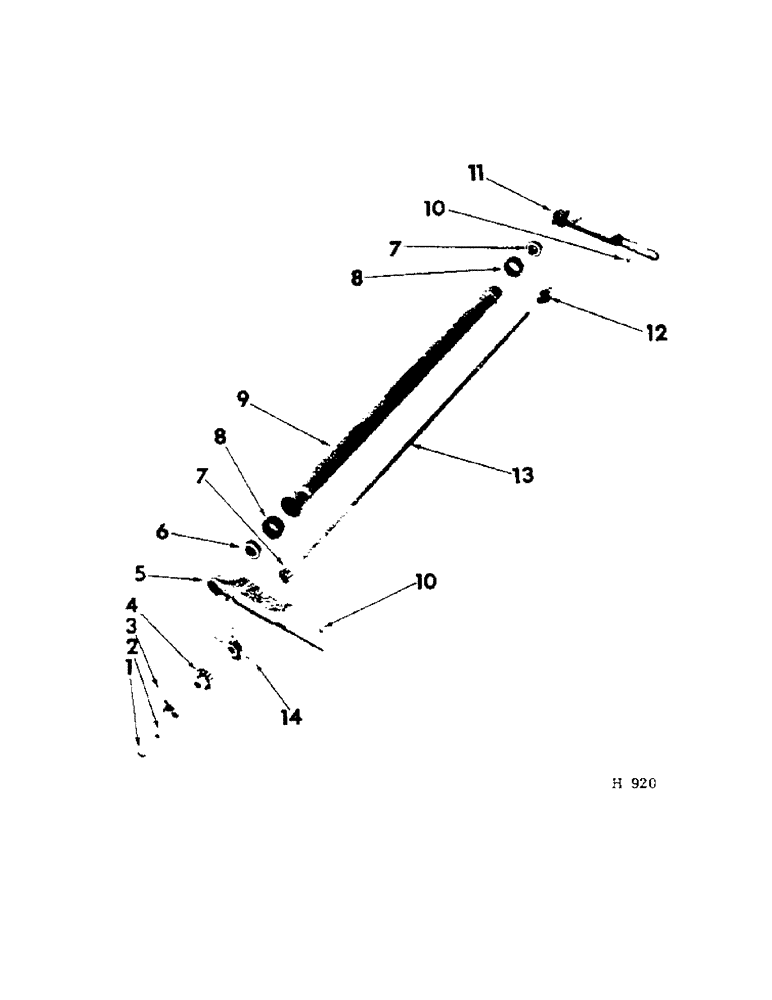

Запчасти Case IH 201 (D-011) - PLATFORM DRIVEN ROLLER, 1964 AND SINCE (58) - ATTACHMENTS/HEADERS

1

609052R1

SPRING, pawl hold-down (1964 & Since)

1шт.

2

618631R1

SPACER

pawl, Serial Range: (prior-1964)

1шт.

2

608747R1

SPACER, pawl (1964 & Since)

1шт.

3

618613R2

PAWL, ratchet

1шт.

BOLT, 5/16 x 1-1/2" type 2

1шт.

WASH, 11/32 x 7/8 x 16 ga

1шт.

LK-WASH, 5/16"

1шт.

4

618614R1

RATCHET, roller tightener

1шт.

618638R1

PIN,3/16" x 1 1/8", Coiled

1шт.

5

611763R11

SUPPORT, brg rear, Serial Range: (prior-1965)

1шт.

5

592148R11

SUPPORT

brg rear (1965 & Since)

1шт.

BOLT W/NUT, 5/16 x 1" mach

1шт.

WASH, 11/32 x 1 x 16 ga

2шт.

LK-WASH, 5/16"

1шт.

6

613390R91

ROLLER BEARING

roller, Serial Range: (prior-1965)

2шт.

6

592141R91

ROLLER BEARING,17.65mm Hex x 47mm OD x 20.95mm W

roller (1965 & Since)

2шт.

7

618611R1

PINION

rack shaft rear

1шт.

364437R1

PIN,3/16" x 7/8", Coiled

1шт.

8

592142R1

RETAINER

roller brg (1965 & Since)

2шт.

9

612226R11

ROLLER, idler, Serial Range: (prior-1965)

1шт.

591147R1

ROLLER, idler (1965 & Since)

1шт.

10

M43047

SPACER

brg support front & rear

2шт.

BOLT W/NUT, 5/16 x 1" mach (front)

1шт.

BOLT W/NUT, 5/16 x 1-3/8" mach (rear)

1шт.

WASH, 11/32 x 1 x 16 ga

2шт.

LK-WASH, 5/16"

2шт.

11

611764R11

SUPPORT, brg front, Serial Range: (prior-1965)

1шт.

11

592149R11

SUPPORT, brg front (1965 & Since)

1шт.

BOLT W/NUT, 5/16 x 1-3/8" mach

1шт.

WASH, 11/32 x 1 x 16 ga

1шт.

LK-WASH, 5/16"

1шт.

12

618612R1

PINION

rack shaft front

1шт.

364437R1

PIN,3/16" x 7/8", Coiled

1шт.

13

612069R1

SHAFT, rack pinion, Serial Range: (prior-1964)

1шт.

13

608745R1

SHAFT, rack pinion (1964 & Since)

1шт.

WASH, 21/32 x 1 x 16 ga

1шт.

C-PIN, 1/8 x 1"

1шт.

14

618616R1

BRACKET, alignment, Serial Range: (prior-1964)

1шт.

14

608746R1

BRACKET, alignment (1964 & Since)

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

LUB-FTG, 1/4"-NF (1964 & Since)

1шт.

BOLT W/NUT, 3/8 x 7/8" crg

2шт.

WASH, 13/32 x 1 x 16 ga

2шт.

LK-WASH, 3/8"

2шт.

608749R91

APRON, 12 ft (includes parts listed)

1шт.

608750R91

APRON, 16 ft (includes parts listed)

1шт.
