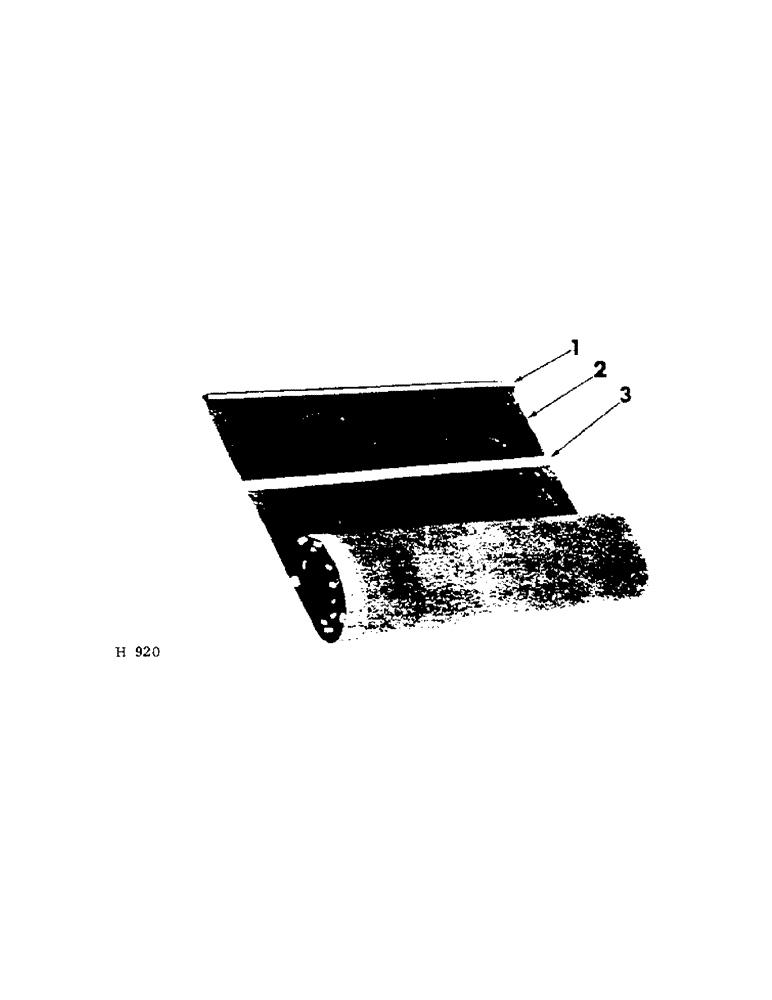

Запчасти Case IH 201 (D-011[A]) - PLATFORM APRON, 1964 AND SINCE (58) - ATTACHMENTS/HEADERS

1

612288R21

BAR ASSY.

BAR, apron connecting (includes 120614, nuts; 132926, screws & 120217, wash)

1шт.

132926

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

S, no. 10-NF x 1-1/4" cd-pltd slt-rd-hd

9шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

9шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

9шт.

2

APRON, platform (order 1 of the applicable size apron) (NSS)

1шт.

3

618633R1

NO LONGER SERVICED

SLAT, platform apron

1шт.

Q3569

RIVET,Csk, 3/16" x 9/16"

special copper

1шт.

20319R1

RIVET

special copper

1шт.

451312R1

STAPLE

special wire

1шт.
