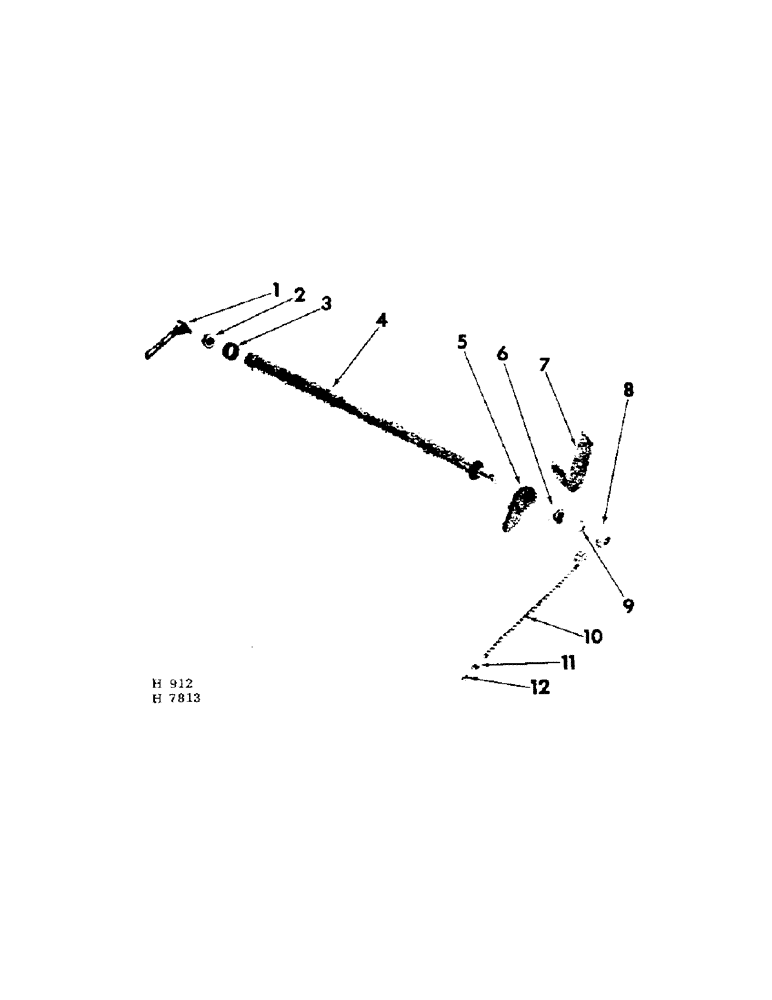

Запчасти Case IH 201 (D-010) - PLATFORM DRIVE ROLLER (58) - ATTACHMENTS/HEADERS

1

611762R11

SUPPORT, roller front, Serial Range: (prior-1965)

1шт.

1

592139R11

SUPPORT

roller front (1965 & Since)

1шт.

BOLT W/NUT, 3/8 x 1-3/8" mach

2шт.

WASH, 13/32 x 1 x 16 ga

2шт.

LK-WASH, 3/8"

2шт.

2

613390R91

ROLLER BEARING

roller front, Serial Range: (prior-1965)

1шт.

2

592141R91

ROLLER BEARING,17.65mm Hex x 47mm OD x 20.95mm W

roller front (1965 & Since)

1шт.

3

592142R1

RETAINER

front brg (1965 & Since)

1шт.

4

607691R91

ROLLER, drive, Serial Range: (prior-1965)

1шт.

4

592137R91

ROLLER

drive (1965 & Since)

1шт.

5

607689R1

HOUSING, roller rear brg

1шт.

BOLT W/NUT, 3/8 x 3/4" crg

2шт.

LK-WASH, 3/8"

2шт.

6

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

roller rear (w/455102R11, collar)

1шт.

6

610540R91

BEARING

roller rear (w/610541R11, collar)

1шт.

7

607690R1

SHIELD, roller drive chain

1шт.

SCREW W/NUT, 1/4 x 5/8" slt-rd-hd

3шт.

LK-WASH, 1/4"

3шт.

8

607674R1

SPROCKET ASSY.

SPROCKET, roller drive

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

1шт.

9

455102R11

COLLAR

rear brg locking (includes 102569, screw) (w/455965R91, brg)

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4" hdls cup-pt set

1шт.

9

610541R11

COLLAR

rear brg locking (includes 102569, screw) (w/610540R91, brg)

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4" hdls cup-pt set

1шт.

10

CHAIN, 1/2" roller type (for service order 1-1790D, 10 ft length of chain, reduce to 81 links, add 1-1301D, connecting link & 2-1303D, offset links)

1шт.

11

1303D

LINK

chain offset

2шт.

1304D

PIN, offset link

2шт.

1390D

PIN

C-PIN, 1/4 lb pkg

1шт.

12

1301D

CHAIN LINK

LINK, chain connecting

1шт.

1759D

CLIP, connecting link

1шт.
