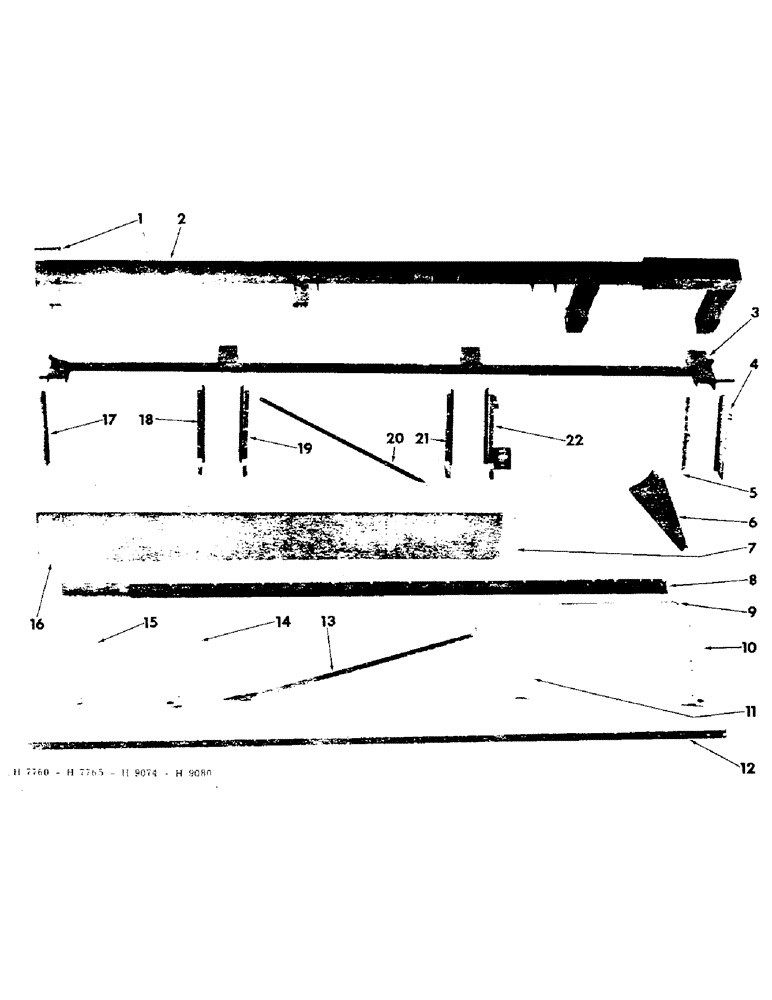

Запчасти Case IH 201 (D-006) - PLATFORM, FRAME AND BACKSHEET (58) - ATTACHMENTS/HEADERS

1

607559R1

PIN, platform pivot, Serial Range: (prior-1964)

3шт.

604576R1

LK-PIN, pivot pin

3шт.

C-PIN, 1/4 x 1-1/2"

3шт.

1

608708R1

PIN

platform pivot (1964 & Since)

3шт.

C-PIN, 5/16 x 1-1/2"

6шт.

2

FRAME, main (prior to 1964 order 1-608704R91, frame; 3-608708R1 & 6-108654, pins)

1шт.

2

608704R92

FRAME, main (1964 & Since)

1шт.

3

FRAME, platform support (prior to 1964 order 1-608709R91, 12 ft or 608710R92, 16 ft frame; 2-608754R1, clips & 2-608753R1, pulleys)

1шт.

3

608709R92

FRAME, 12 ft support (1964 & Since)

1шт.

3

608710R92

FRAME, 16 ft support (1964 & Since)

1шт.

271293

PULLEY

LUB-FTG, 5/16"-NF

3шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

4

607589R21

SUPPORT, left side outer

1шт.

BOLT W/NUT, 3/8 x 3/4" crg

1шт.

BOLT W/NUT, 3/8 x 1-1/8" crg

2шт.

LK-WASH, 3/8"

3шт.

5

SUPPORT, inner side LH (prior to 1964 order 1-608781R91, support. If equipped w/rear delivery order 1-607779R1, sprocket w/attaching hdwe plus the new drive chain for drive roller)

1шт.

5

608781R91

SUPPORT, inner side LH (1964 & Since)

1шт.

BOLT W/NUT, 3/8 x 7/8" crg

3шт.

LK-WASH, 3/8"

3шт.

6

608763R1

SECTION, platform deflector (not applicable w/rear delivery conveyor)

1шт.

BOLT W/NUT, 1/4 x 5/8" crg

5шт.

BOLT W/NUT, 3/8 x 7/8" CRG

3шт.

LK-WASH, 1/4"

5шт.

LK-WASH, 3/8"

3шт.

7

607608R2

ANGLE, backsheet stiffener rear

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

3шт.

LK-WASH, 5/16"

3шт.

8

607628R2

GUIDE, 12 ft canvas rear

1шт.

8

607629R2

GUIDE, 16 ft canvas rear

1шт.

607630R1

WASH, 11/32 sq. x 1 x 11 ga (16 ft)

1шт.

BOLT W/NUT, 5/16 x 3/4" no. 3 plow

1шт.

BOLT W/NUT, 5/16 x 3/4" crg (4-12 ft; 6-16 ft)

1шт.

BOLT W/NUT, 5/16 x 5/8" crg (6-12 ft; 9-16 ft)

1шт.

LK-WASH, 5/16" (11-12 ft; 16-16 ft)

1шт.

9

607631R2

BRACE, 12 ft canvas, Serial Range: (prior-1964)

2шт.

9

607632R2

BRACE, 16 ft canvas, Serial Range: (prior-1964)

2шт.

BOLT W/NUT, 5/16 x 7/8" no. 3 plow (4-12 ft; 6-16 ft)

1шт.

LK-WASH, 5/16" (4-12 ft; 6-16 ft)

1шт.

9

607631R2

BRACE, 12 ft center (1964 & since)

1шт.

9

607632R2

BRACE, 16 ft center (1964 & since)

1шт.

9

608725R1

BRACE, 12 ft front (1964 & since)

1шт.

9

608726R1

BRACE, 16 ft front (1964 & since)

1шт.

BOLT W/NUT, 5/16 x 7/8" no. 3 plow (4-12 ft; 6-16 ft)

1шт.

LK-WASH, 5/16" (4-12 ft; 6-16 ft)

1шт.

10

SUPPORT, outer LH (prior to 1964 order 1-608714R91, support & 1-608717R91, brace)

1шт.

10

608714R91

SUPPORT, outer LH (1964 & Since)

1шт.

BOLT W/NUT, 3/8 x 3/4" crg

6шт.

LK-WASH, 3/8"

6шт.

11

607617R21

SUPPORT, platform inner LH

1шт.

BOLT W/NUT, 3/8 x 7/8" crg

1шт.

BOLT W/NUT, 7/16 x 7/8" mach

1шт.

LK-WASH, 3/8"

1шт.

LK-WASH, 7/16"

1шт.

12

607633R1

GUIDE, 12 ft canvas front

1шт.

12

607634R1

GUIDE, 16 ft canvas front

1шт.

13

607616R1

PIPE, platform diagonal, Serial Range: (prior-1964)

1шт.

BOLT W/NUT, 7/16 x 1" mach

1шт.

BOLT W/NUT, 7/16 x 1-1/4" mach

1шт.

LK-WASH, 7/16"

2шт.

13

608719R1

ANGLE, diagonal brace (1964 & since)

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT W/NUT, 3/8 x 1" type 2 crg

2шт.

BOLT W/NUT, 3/8 x 1-1/4" type 2

1шт.

BOLT W/NUT, 7/16 x 1-3/8" type 2

1шт.

LK-WASH, 3/8"

3шт.

LK-WASH, 7/16"

1шт.

14

607620R11

SUPPORT, 12 ft outer RH, Serial Range: (prior-1965)

1шт.

14

591752R91

SUPPORT, 12 ft outer RH (1965 & since)

1шт.

14

607620R11

SUPPORT, 16 ft inner RH

1шт.

BOLT W/NUT, 3/8 x 7/8" mach (1-12 ft; 2-16 ft)

1шт.

BOLT W/NUT, 3/8 x 7/8" crg (3-12 ft; 6-16 ft)

1шт.

LK-WASH, 3/8" (4-12 ft; 8-16 ft)

1шт.

15

607622R22

SUPPORT, 16 ft outer RH

1шт.

BOLT W/NUT, 3/8 x 3/4" crg

1шт.

LK-WASH, 3/8"

1шт.

16

607606R2

BACKSHEET, 12 ft platform rear

1шт.

16

607607R2

BACKSHEET, 16 ft platform rear

1шт.

17

607603R2

SUPPORT, 12 ft outer RH

1шт.

17

607604R2

SUPPORT, 16 ft outer RH

1шт.

BOLT W/NUT, 5/16 x 5/8" crg (3-12 ft; 4-16 ft)

1шт.

BOLT W/NUT, 3/8 x 3/4" crg (2-12 ft; 1-16 ft)

1шт.

LK-WASH, 5/16" (3-12 ft; 4-16 ft)

1шт.

LK-WASH, 3/8" (2-12 ft; 1-16 ft)

1шт.

18

607601R92

SUPPORT, center RH

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

3шт.

BOLT W/NUT, 3/8 x 3/4" crg

1шт.

LK-WASH, 5/16"

3шт.

LK-WASH, 3/8"

1шт.

19

607600R92

SUPPORT, 16 ft right center LH

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

2шт.

BOLT W/NUT, 3/8 x 3/4" crg

2шт.

LK-WASH, 5/16"

2шт.

LK-WASH, 3/8"

2шт.

20

608720R11

BRACE, rear diagonal (1964 & since)

1шт.

BOLT W/NUT, 3/8 x 1" type 2

2шт.

BOLT W/NUT, 3/8 x 7/8" crg

1шт.

LK-WASH, 3/8"

3шт.

21

607601R92

SUPPORT, 16 ft right center RH

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

3шт.

BOLT W/NUT, 3/8 x 3/4" crg

1шт.

LK-WASH, 5/16"

3шт.

LK-WASH, 3/8"

1шт.

22

607593R92

SUPPORT, center LH

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

2шт.

BOLT W/NUT, 3/8 x 3/4" crg

2шт.

LK-WASH, 5/16"

2шт.

LK-WASH, 3/8"

2шт.

608713R1

SUPPORT, countershaft pilot brg (welded to main frame) (available through service for machines built, Serial Range: prior-1964)

1шт.

607600R92

SUPPORT, 12 ft inner RH

1шт.

BOLT W/NUT, 3/8 x 3/4" crg

2шт.

LK-WASH, 3/8"

2шт.

608792R91

PACKAGE, 12 ft platform knife pitman crankshaft brg reinforcement field conversion (for 12 ft prior to 1964) composed of: (1) support 607589R21, (4) bolt 180126, (1) bolt 19611R1, (5) nut 120377, (5) lockwasher 120382, (1) p phlet 1018858R1

1шт.

608727R2

SUPPORT, canvas support front

1шт.

BOLT W/NUT, 5/16 x 7/8" no. 3 plow

1шт.

BOLT W/NUT, 3/8 x 7/8" crg

2шт.

LK-WASH, 5/16"

1шт.

LK-WASH, 3/8"

2шт.
