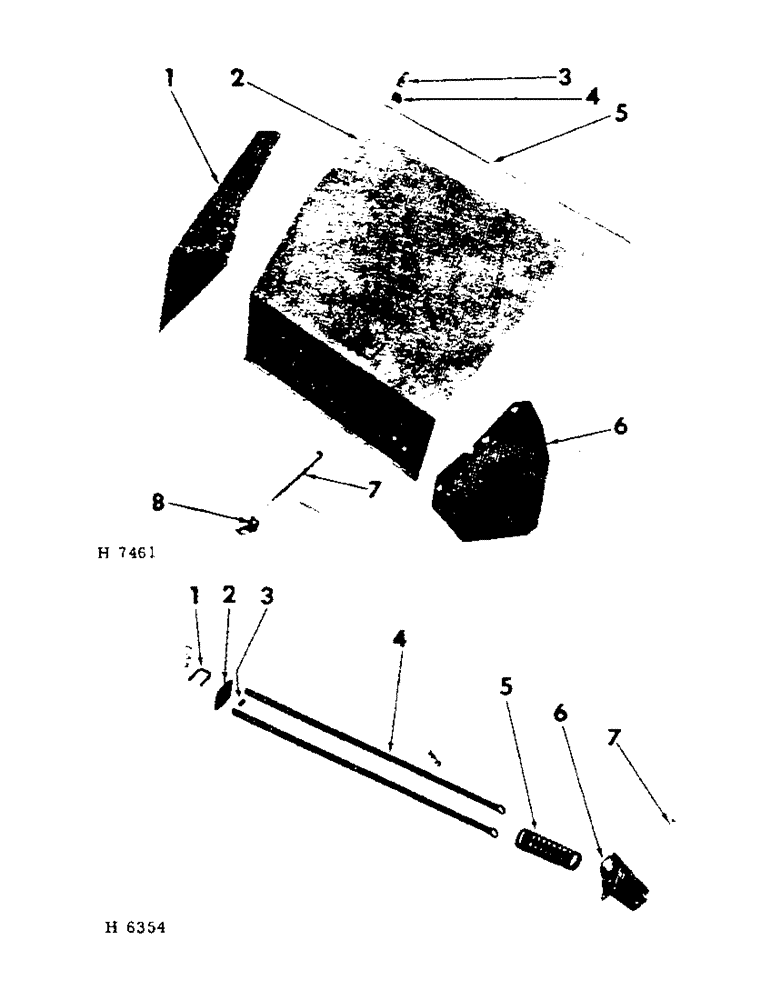

Запчасти Case IH 201 (C-006[1]) - HEIGHT ADJUSTER (58) - ATTACHMENTS/HEADERS

1

607366R1

DEFLECTOR, gathering LH

1шт.

BOLT W/NUT, 5/16 x 5/8" cd-pltd crg

3шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga cd-pltd

3шт.

LK-WASHER, 5/16" cd-pltd

1шт.

2

607362R11

SHIELD, deflector (includes 607364R1, rod)

1шт.

W6652

WASHER

15/32 x 1 x 16 ga

1шт.

C-PIN, 1/3 x 3/4"

2шт.

3

612405R1

BRACKET, deflector support

2шт.

BOLT W/NUT, 7/16 x 1-1/2" crg

2шт.

LK-WASHER, 7/16"

2шт.

4

613197R1

CLIP, deflector pivot rod

2шт.

BOLT W/NUT, 5/16 x 3/4" cd-pltd crg

2шт.

LK-WASHER, 5/16" cd-pltd

2шт.

5

607364R1

ROD, rear deflector pivot

1шт.

W6652

WASHER

15/32 x 1 x 16 ga

1шт.

C-PIN, 1/8 x 3/4"

2шт.

6

607389R1

DEFLECTOR, gathering RH

1шт.

BOLT W/NUT, 5/16 x 5/8" cd-pltd crg

3шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga

3шт.

LK-WASHER, 5/16" cd-pltd

3шт.

7

607365R1

ROD, rear deflector adjustment

1шт.

517843R1

COTTER PIN

C-PIN, quick-attachable

2шт.

Q5035

WASHER

C-PIN, 1/8 x 7/8"

1шт.

8

607376R1

BRACKET, rear deflector adjustment upper

1шт.

BOLT W/NUT, 3/8 x 7/8" crg

1шт.

LK-WASHER, 3/8"

1шт.
