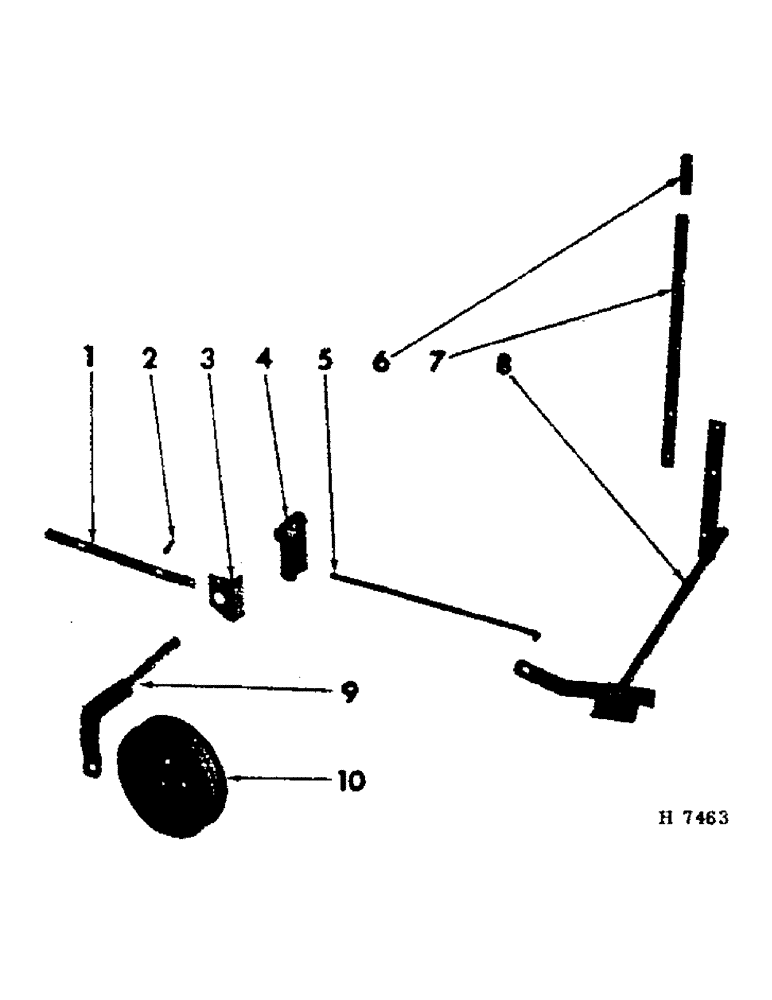

Запчасти Case IH 201 (C-005) - CLUTCH IDLER SHAFT (58) - ATTACHMENTS/HEADERS

1

607380R1

SUPPORT, belt guide

1шт.

BOLT W/NUT, 5/16 x 3/4" crg

1шт.

BOLT W/NUT, 5/16 x 7/8" crg

1шт.

LK-WASHER, 5/16"

2шт.

2

P2066

SPACER, belt guide support

2шт.

BOLT W/NUT, 5/16 x 2-3/4" crg

2шт.

Q398

WASHER

11/32 x 7/8 x 16 ga

5шт.

LK-WASHER, 5/16"

2шт.

3

607382R1

BRACKET, idler shaft mounting

1шт.

BOLT W/NUT, 3/8 x 7/8" mach

2шт.

LK-WASHER, 3/8"

2шт.

4

612440R91

ARM, clutch idler shaft control

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

1шт.

5

612374R1

ROD, idler control

1шт.

Q5035

WASHER

17/32 x 1 x 16 ga

1шт.

NUT, 1/2"

2шт.

C-PIN, 3/16 x 1"

1шт.

6

610659R1

GRIP, clutch lever handle

1шт.

7

612389R1

LEVER, clutch

1шт.

BOLT W/NUT, 3/8 x 1-1/8" mach

2шт.

LK-WASHER, 3/8"

2шт.

8

612443R91

SHAFT, clutch

1шт.

BOLT W/NUT, 3/8 x 7/8" mach

2шт.

LK-WASHER, 3/8"

2шт.

9

607356R91

SHAFT, clutch idler

1шт.

Q3480

WASHER

1-1/32 x 1-1/2 x 11 ga

3шт.

12258R1

WASHER

21/32 x 1-1/4 x 11 ga

2шт.

10

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

idler

1шт.

BOLT, 5/8 x 2" cd-pltd mach

1шт.

NUT, 5/8" cd-pltd jam

1шт.

LK-WASHER, 5/8" cd-pltd

1шт.
