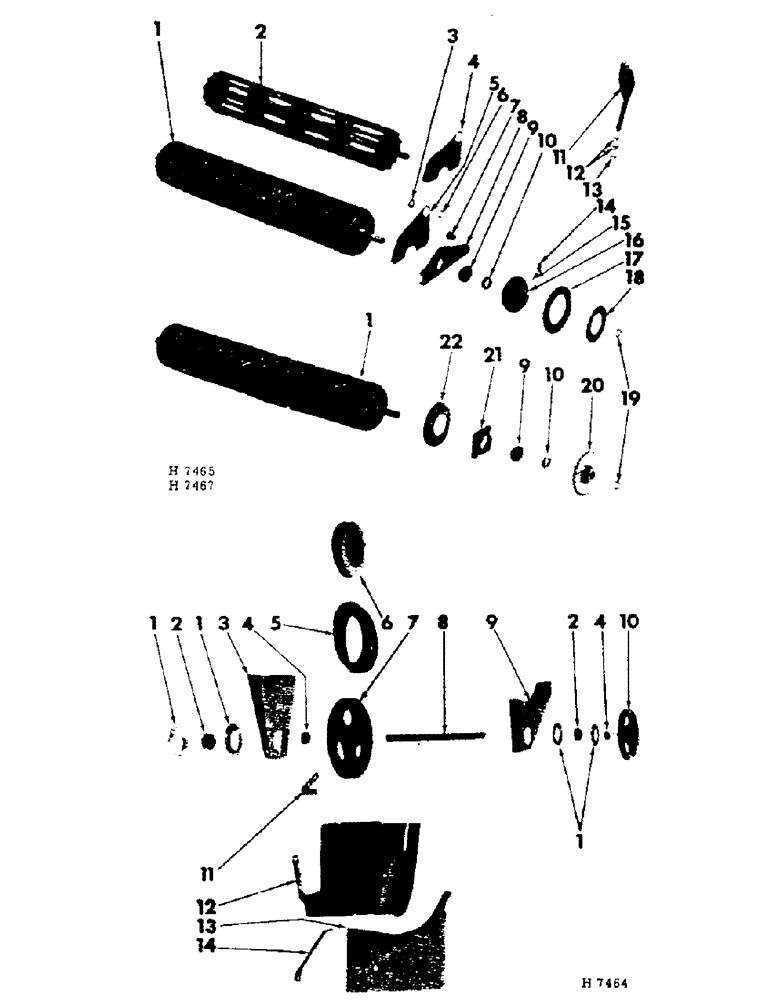

Запчасти Case IH 201 (C-004) - CONDITIONING ROLLERS (58) - ATTACHMENTS/HEADERS

1

607328R91

ROLL, rubber

1шт.

1 upr & lower 8" rubber rolls, 1 lower rubber, 1 upr chevron bar rolls

1шт.

2

607337R93

ROLL

chevron upr

1шт.

1 lower rubber, 1 upr chevron bar rolls

1шт.

3

Q226

WASHER, 21/32 sq-hole x 1-1/2 x 16 ga

2шт.

4

607334R91

SHROUD, upr roll LH

1шт.

1 upr & lower 8" rubber rolls

1шт.

4

607335R91

SHROUD, upr roll RH (shown)

1шт.

1 upr & lower 8" rubber rolls

1шт.

5

607341R91

SHROUD, upr roll LH

1шт.

1 lower rubber, 1 upr chevron bar rolls

1шт.

5

607342R91

SHROUD, upr roll RH (shown)

1шт.

1 lower rubber, 1 upr chevron bar rolls

1шт.

6

Q1594

WASHER,41/64" x 1 1/2" x .105", Sq Hole

21/32 sq-hole x 1-3/4 x 12 ga

2шт.

7

612369R1

BUSHING

pivot

2шт.

8

607330R1

HOUSING, upr roll brg LH

1шт.

8

607331R1

HOUSING, upr roll brg RH (shown)

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

LUB-FTG, 1/8" - 90deg. elbow

2шт.

443329

LK-NUT, 5/8" type "HL"

2шт.

BOLT, 3/8 x 1-5/8" mach

2шт.

BOLT, 5/8 x 2-3/4" crg

2шт.

575810R1

WASHER

WASH, 21/32 x 1-1/2 x 11 ga

2шт.

LK-WASH, 3/8"

2шт.

9

611583R91

BALL BEARING

BEARING, upr & lower roll

4шт.

10

517645R11

COLLAR

brg locking (includes 102592, screw)

4шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

4шт.

11

CHAIN, 3/4" pitch no. 60 light-side-bar (for service order 1-611362R91, 10 ft length of chain, reduce to 119 links, add 1-612612R91 offset link & 1-611361R91 connecting link)

1шт.

12

612612R91

CHAIN LINK

LINK, chain offset

1шт.

1390D

PIN

C-PIN, 1/4 lb pkg

1шт.

13

611361R91

DRAG LINK

LINK, chain connecting

1шт.

1390D

PIN

C-PIN, 1/4 lb pkg

1шт.

14

611320R2

BLOCK

DOG, clutch, Serial Range: (1963-1964)

2шт.

15

625494R1

SPRING, clutch dog, Serial Range: (1963-1964)

2шт.

16

607347R1

HUB, clutch, Serial Range: (1963-1964)

1шт.

113879

KEY

5/16 x 1-1/4" woodruff

1шт.

17

611590R2

SPROCKET, clutch, Serial Range: (1963-1964)

1шт.

18

611589R1

DISK, clutch, Serial Range: (1963-1964)

1шт.

BOLT W/NUT, 5/16 x 1-3/4" mach

2шт.

LK-WASH, 5/16"

2шт.

19

152450R1

SNAP RING,#125, Ext

Ring, Snap, , upper & lower shaft #125, Ext

2шт.

20

607348R12

SPROCKET, 29T upr & lower roll

2шт.

113879

KEY

5/16 x 1-1/4" woodruff

2шт.

21

607332R1

HOUSING

lower roll brg

2шт.

BOLT, 3/8 x 1-3/8" mach

8шт.

LK-WASH, 3/8"

8шт.

22

607333R11

SHROUD, lower roll

2шт.
