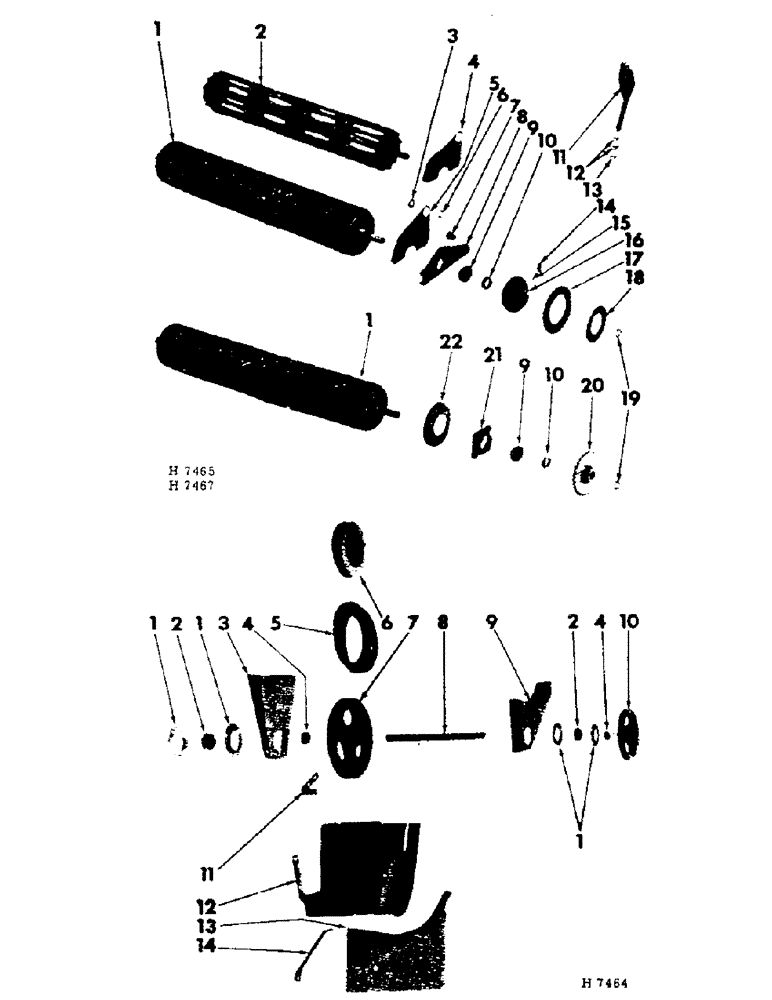

Запчасти Case IH 201 (C-004[1]) - COUNTERSHAFT (58) - ATTACHMENTS/HEADERS

1

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

TTE, brg

4шт.

BOLT W/NUT, 3/8 x 1" crg

6шт.

LK-WASHER, 3/8"

6шт.

2

BEARING, countershaft (for SKF bearing - 1706206103 only - order 1-566634R91, bearing & 1-557117R11, collar)

2шт.

2

566634R91

BEARING

countershaft (Fafnir, New Departure & SKF - for use w/557117R11, collar)

2шт.

2

609957R91

BEARING

countershaft (Fischer - for use w/609958R11, collar)

2шт.

3

607350R2

SUPPORT, countershaft brg LH

1шт.

BOLT W/NUT, 3/8 x 3/4" crg

2шт.

LK-WASHER, 3/8"

2шт.

4

COLLAR W/SCREW, brg locking (for SKF collar - LC103 only - order 1-566634R91, bearing & 1-557117R11, collar)

1шт.

4

557117R11

COLLAR

COLLAR W/SCREW, brg locking (Fafnir, New Departure & SKF - for use w/566634R91, bearing)

1шт.

4

609958R11

COLLAR

W/SCREW, brg locking (Fischer - for use w/609957R91, bearing)

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

1шт.

5

607355R1

BELT,0.88" W x 83.70" L

V-BELT , Countershaft drive 0.88" W x 83.70" L

1шт.

6

607353R1

PULLEY, auxiliary drive (gas)

1шт.

6

607354R2

PULLEY, auxiliary drive (diesel)

1шт.

BOLT, 3/8 x 1-1/2" mach (4 gas)

1шт.

BOLT, 7/16 x 2" mach (4 diesel)

1шт.

LK-WASHER, 3/8" (4 gas)

1шт.

LK-WASHER, 7/16" (4 diesel)

1шт.

7

613363R1

PULLEY, countershaft drive

1шт.

113879

KEY

5/16 x 1-1/4" woodruff

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

2шт.

8

612371R1

COUNTERSHAFT, conditioner

1шт.

9

607351R1

SUPPORT, brg RH

1шт.

BOLT W/NUT, 3/8 x 3/4" crg

2шт.

BOLT W/NUT, 3/8 x 7/8" crg

1шт.

BOLT W/NUT, 7/16 x 7/8" crg

2шт.

LK-WASHER, 3/8"

3шт.

LK-WASHER, 7/16"

2шт.

10

607352R1

PULLEY, countershaft driven

1шт.

581307R1

KEY,5/16" Sq x 2 3/4", Par

5/16 x 5/16 x 2-3/4" straight

1шт.

617942R1

PIN,7.92mm OD x 57.15mm L, Coiled

1шт.

11

608588R1

GUIDE, lower belt

1шт.

BOLT W/NUT, 5/16 x 3/4" crg

3шт.

Q398

WASHER

11/32 x 7/8 x 16 ga

3шт.

LK-WASHER, 5/16"

3шт.

12

607358R92

SHIELD, pulley

1шт.

BOLT W/NUT, 5/16 x 5/8" cd-pltd crg

2шт.

LK-WASHER, 5/16" cd-pltd

2шт.

13

607367R11

DEFLECTOR, gathering front RH

1шт.

BOLT W/NUT, 5/16 x 5/8" cd-pltd crg

2шт.

LK-WASHER, 5/16" cd-pltd

2шт.

14

607370R1

BRACE, gathering shield RH

1шт.

BOLT W/NUT, 5/16 x 5/8" cd-pltd crg

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga cd-pltd

2шт.

LK-WASHER, 5/16" cd-pltd

2шт.
