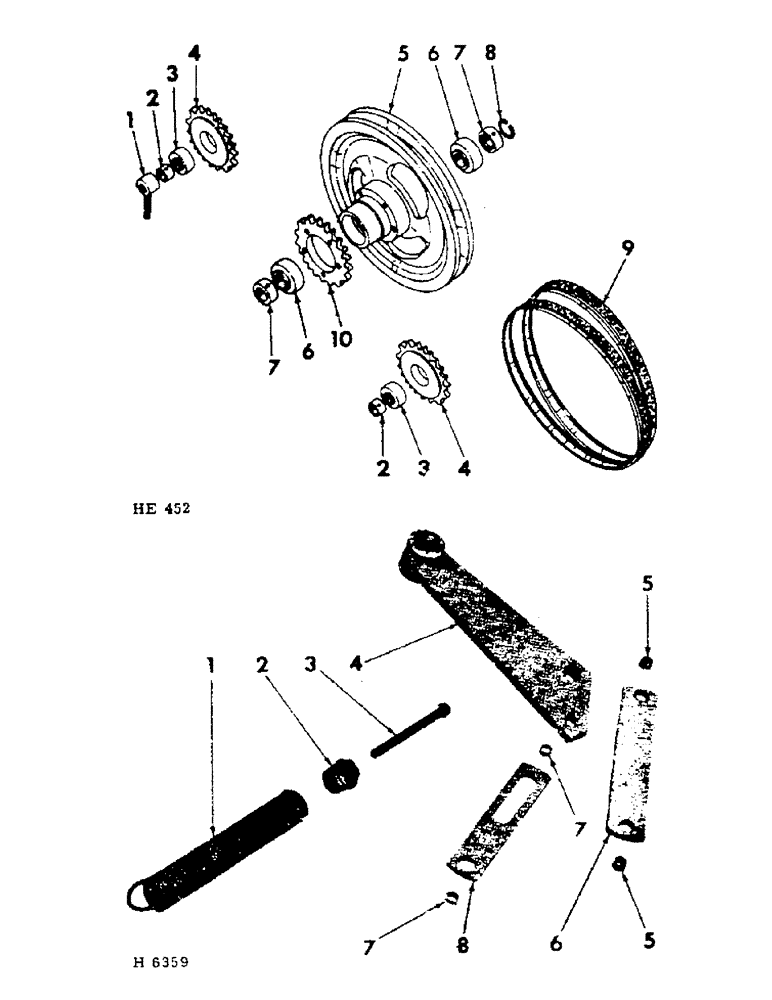

Запчасти Case IH 201 (C-003) - JACKSHAFT (58) - ATTACHMENTS/HEADERS

1

608487R91

BOLT, chain tightener, Serial Range: (1964-1966)

1шт.

BOLT, 5/8 x 2-1/2" cd-pltd type 2

1шт.

12258R1

WASHER

21/32 x 1-1/4 x 11 ga

1шт.

NUT, 7/16" cd-pltd jam

1шт.

NUT, 7/16" cd-pltd

1шт.

2

607346R1

SPACER, idler sprocket

2шт.

3

666624R91

BALL BEARING,16.26mm ID x 40mm OD x 18mm W

idler sprocket

2шт.

4

607345R11

SPROCKET ASSY.

SPROCKET ASSEMBLY, idler (includes 666624R91, bearing)

2шт.

BOLT, 5/8 x 2-1/4" cd-pltd type 2

1шт.

NUT, 5/8" cd-pltd jam

1шт.

LK-WASHER, 5/8" cd-pltd

1шт.

5

607377R1

PULLEY, sprocket & jackshaft

1шт.

6

BEARING, pulley (for SKF - bearing - 1716206103 only order 1-566632R91, bearing & 1-557117R11, collar)

2шт.

6

566632R91

BALL BEARING

pulley (Fafnir, SKF - for use w/557117R11, collar)

2шт.

6

566943R91

BEARING, pulley (New Departure - for use w/557117R11, collar)

2шт.

7

COLLAR W/SCREW, brg locking (for SKF collar - LC103 only - order 1-566632R91, bearing & 1-557117R11, collar)

2шт.

7

557117R11

COLLAR

COLLAR W/SCREW, brg locking

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

2шт.

8

83471R1

RING, jackshaft bearing snap

1шт.

9

607344R1

BELT,0.88" W x 112.70" L

V-BELT , Jackshaft drive 0.88" W x 112.70" L

1шт.

10

612438R1

SPROCKET, 22T jackshaft

1шт.

BOLT, 5/16 x 1" mach

5шт.

LK-WASHER, 5/16"

5шт.
