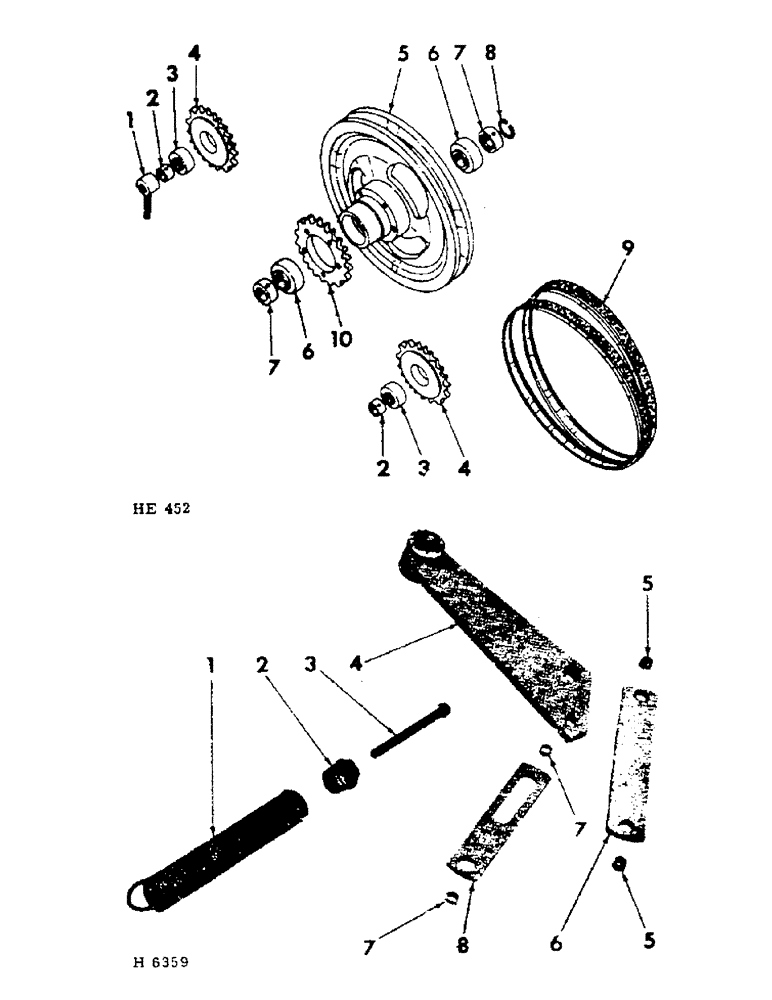

Запчасти Case IH 201 (C-003[1]) - LIFTING MECHANISM (58) - ATTACHMENTS/HEADERS

1

612435R1

SPRING, roll pressure

2шт.

2

PO2315

PLUG

roll pressure spg

2шт.

3

659961R1

BOLT, roll pressure adjustment

2шт.

114505

JAM NUT,Jam, 1/2"-13, G5

2шт.

Q5035

WASHER

17/32 x 1 x 16 ga

2шт.

4

613480R91

ARM, inner lift LH shown

1шт.

4

613481R91

ARM, inner lift RH

1шт.

BOLT, 1/2 x 1-1/2" dld no. 3 plow

2шт.

Q5035

WASHER

17/32 x 1 x 16 ga

2шт.

SLT-NUT, 1/2"

2шт.

C-PIN, 3/32 x 1"

2шт.

5

612379R1

SPACER

BUSHING, lift strap inner

4шт.

6

607321R1

STRAP, inner lift

2шт.

BOLT W/NUT, 1/2 x 1-3/8" crg

2шт.

16038R1

WASHER

17/32 x 1 x 11 ga

2шт.

LK-WASHER, 1/2"

4шт.

7

612330R1

BUSHING, roll lift strap outer

4шт.

8

607322R1

STRAP, outer lift

2шт.

BOLT W/NUT, 1/2 x 1-1/2" crg

2шт.

BOLT W/NUT, 1/2 x 1-1/2" mach

2шт.

PO10535

WASHER

17/32 x 1-1/4 x 11 ga

4шт.

LK-WASHER, 1/2"

4шт.
