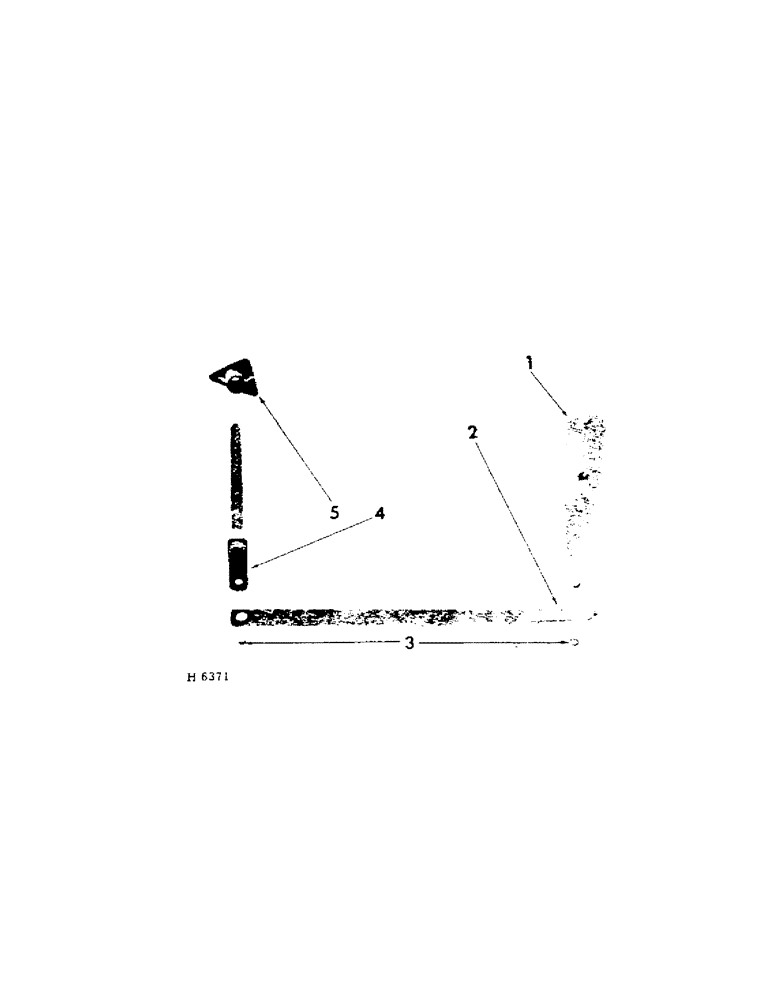

Запчасти Case IH 201 (C-002[A]) - FRAME MOUNTING SUPPORT (58) - ATTACHMENTS/HEADERS

1

612424R1

ANGLE, frame mounting

4шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT W/NUT, 3/8 x 1" type 2 crg

12шт.

LK-WASH, 3/8"

12шт.

2

607316R11

ANGLE, frame support LH

1шт.

2

607317R11

ANGLE, frame support RH shown

1шт.

271293

PULLEY

LUB-FTG, 5/16"

2шт.

BOLT W/NUT, 7/16 x 1-1/2" crg

2шт.

LK-WASH, 7/16"

2шт.

3

612375R2

BOLT,1/2" - 13 x 4 1/8"

drive belt adjusting

2шт.

NUT, 1/2" jam

4шт.

4

612441R91

BRACKET, mounting LH

1шт.

4

612442R91

BRACKET, mounting RH shown

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

442817

LK-NUT, 1/2" special

4шт.

BOLT, 1/2 x 1-3/8" crg

2шт.

BOLT, 1/2 x 1-3/4" crg

2шт.

LK-WASH, 1/2"

4шт.

5

612010R1

RETAINER, frame pivot pipe

2шт.

W2152

PIN

1/2 x 3-7/8" std-hd dld

2шт.

C-PIN, 3/16 x 1"

2шт.
