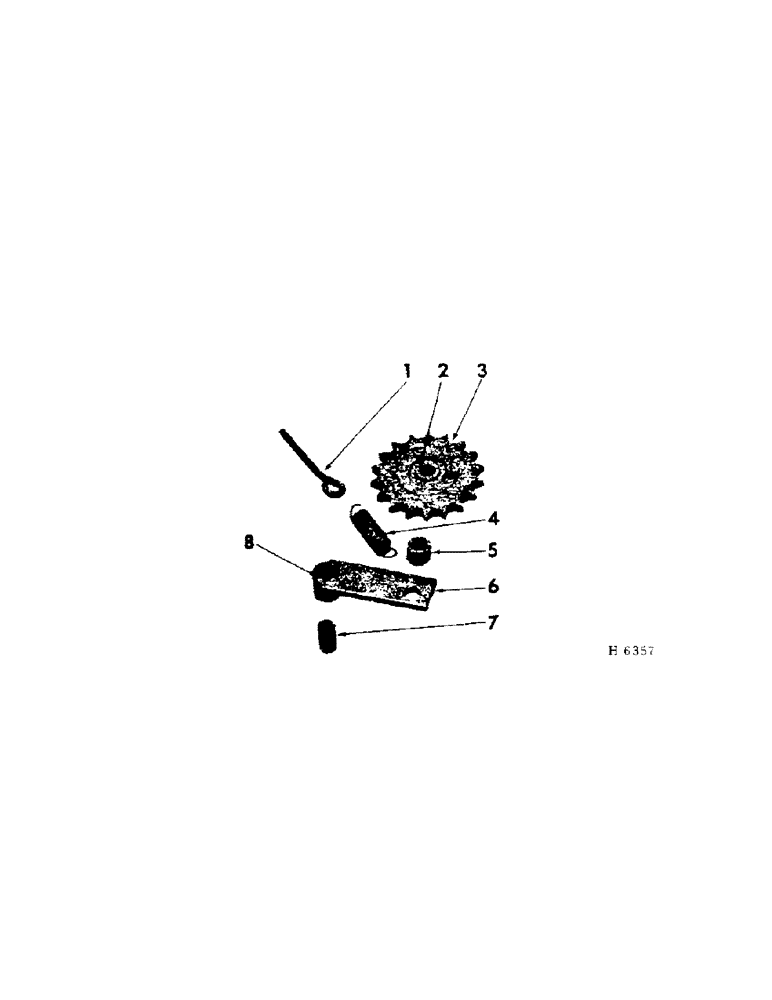

Запчасти Case IH 201 (B-006) - CHAIN TIGHTENER (58) - ATTACHMENTS/HEADERS

1

612372R1

BOLT,Eye, 5/16" - 18 x 4"

idler arm hook

1шт.

NUT, 5/16"

2шт.

2

571395R91

BEARING, chain idler sprocket

1шт.

3

610445R91

SPROCKET, chain (includes 561395R91, brg)

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8" cd-pltd jam

1шт.

BOLT, 5/8 x 2-1/2" cd-pltd mach

1шт.

LK-WASH, 5/8" cd-pltd

1шт.

4

43589H

SPRING, idler chain

1шт.

5

612433R1

SPACER, chain idler pulley

1шт.

6

613714R11

ARM, chain idler

1шт.

BOLT W/NUT, 1/2 x 2-1/4" mach

1шт.

WASH, 17/32 x 1 x 16 ga

1шт.

LK-WASH, 1/2"

1шт.

7

612430R1

BUSHING, idler arm inner

1шт.

8

613323R1

BUSHING

chain idler

1шт.
