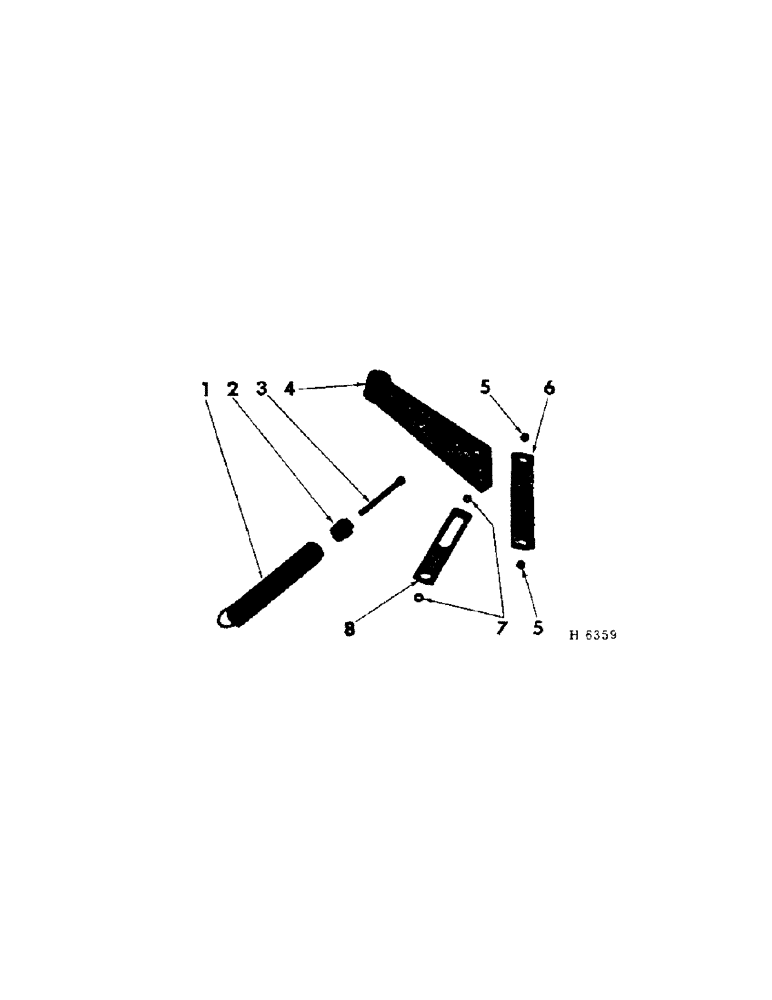

Запчасти Case IH 201 (B-006[B]) - REAR DEFLECTOR SHIELD (58) - ATTACHMENTS/HEADERS

1

612410R1

BRACKET, rear deflector adjustment

1шт.

BOLT W/NUT, 3/8 x 7/8" crg

1шт.

LK-WASH, 3/8"

1шт.

2

612377R1

ROD, rear deflector adjustment

1шт.

WASH, 15/32 x 1 x 16 ga

1шт.

C-PIN, 1/8 x 7/8"

1шт.

NUT, 7/16"

2шт.

3

612415R11

SHIELD, rear deflector (includes 612373R1, rod)

1шт.

C-PIN, 1/8 x 7/8"

1шт.

WASH, 15/32 x 1 x 16 ga

1шт.

4

613197R1

CLIP, pivot rod

2шт.

BOLT W/NUT, 5/16 x 3/4" cd-pltd crg

2шт.

LK-WASH, 5/16" cd-pltd

2шт.

5

612373R1

ROD, rear deflector pivot

1шт.

6

612405R1

BRACKET, rear deflector support

2шт.

BOLT W/NUT, 7/16 x 1-1/2" crg

2шт.

LK-WASH, 7/16"

2шт.
