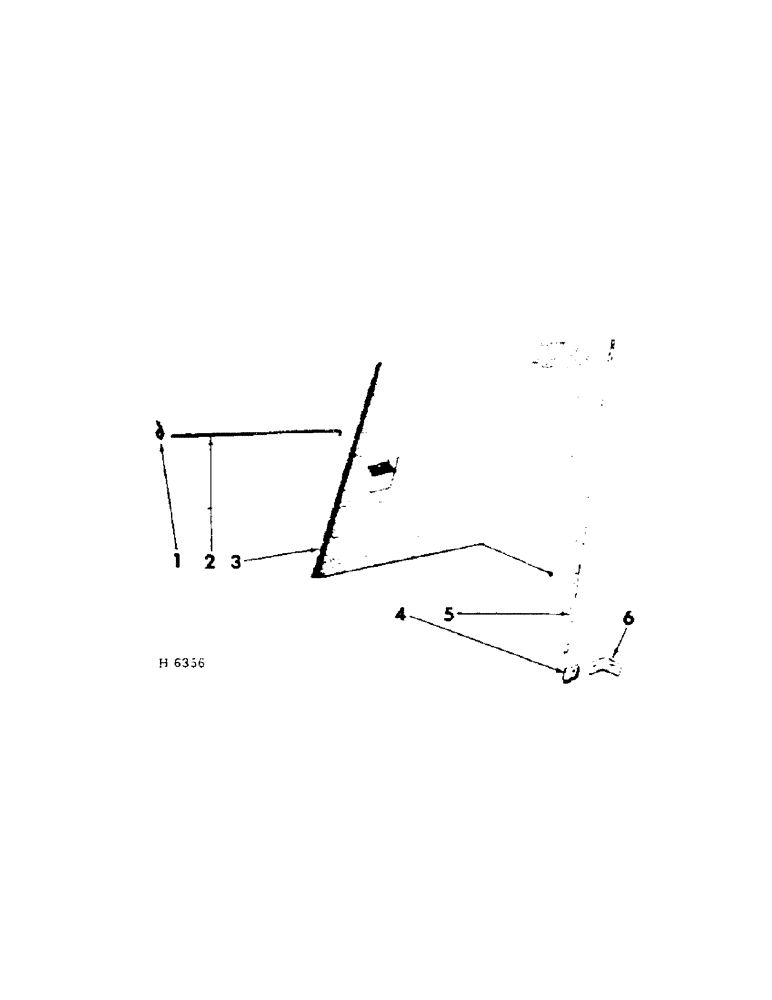

Запчасти Case IH 201 (B-006[A]) - LIFTING MECHANISM (58) - ATTACHMENTS/HEADERS

1

612435R1

SPRING, roll pressure

2шт.

2

PO2315

PLUG

roll pressure spg

2шт.

3

659961R1

BOLT, roll pressure adjustment

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

2шт.

WASH, 17/32 x 1 x 16 ga

2шт.

4

613480R91

ARM, inner lift LH

1шт.

4

613481R91

ARM, inner lift RH

1шт.

BOLT W/NUT, 1/2 x 1-3/4" crg

1шт.

WASH, 17/32 x 1-1/4 x 16 ga

2шт.

LK-WASH, 1/2"

1шт.

5

612379R1

SPACER

BUSHING, inner link LH

4шт.

6

612383R1

STRAP, side plate lift

2шт.

19796R1

BOLT, 1/2 x 1-1/2" dld no. 3 plow

2шт.

BOLT W/NUT, 1/2 x 1-3/8" crg

2шт.

SLT-NUT, 1/2"

2шт.

WASH, 17/32 x 1-1/4 x 16 ga

2шт.

C-PIN, 3/32 x 1"

1шт.

7

612380R1

SPACER

BUSHING, roll link

4шт.

8

612385R1

STRAP, upr roll lift

2шт.

BOLT W/NUT, 1/2 x 1-3/4" mach

1шт.

WASH, 17/32 x 1-1/4 x 11 ga

2шт.

WASH, 17/32 x 1-1/4 x 16 ga

2шт.

LK-WASH, 1/2"

1шт.
