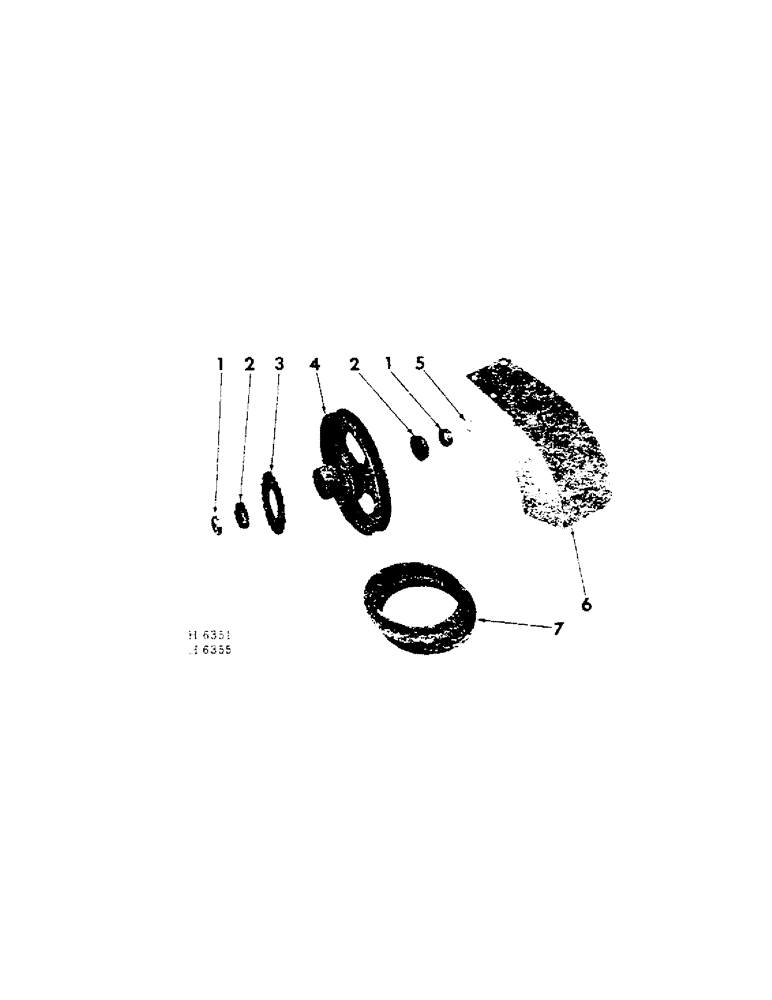

Запчасти Case IH 201 (B-005) - JACKSHAFT AND SHIELD (58) - ATTACHMENTS/HEADERS

1

557117R11

COLLAR

COLLAR, brg locking (includes 113321, screw) (w/566632R91, brg)

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

1шт.

1

613943R11

COLLAR

brg locking (includes 115321, screw) (w/613969R91, brg)

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

1шт.

2

566632R91

BALL BEARING

jackshaft (opt w/613969R91)

2шт.

2

613969R91

BEARING

jackshaft (opt w/566632R91)

2шт.

3

612438R1

SPROCKET, 22T jackshaft

1шт.

BOLT, 5/16 x 1" type 2

5шт.

LK-WASH, 5/16"

5шт.

4

613364R1

HUB, jackshaft pulley

1шт.

5

612436R1

RING, brg snap

1шт.

6

613446R91

SHIELD, drivebelt pulley

1шт.

BOLT W/NUT, 1/4 x 1/2" crg

1шт.

BOLT W/NUT, 1/4 x 5/8" crg

3шт.

BOLT W/NUT, 1/4 x 3/4" crg

1шт.

LK-WASH, 1/4"

5шт.

7

559028R1

V-BELT

Jackshaft drive, Serial Range: (1961-1962)

1шт.

7

607421R1

V-BELT 0.88" W x 107.75" L, Jackshaft drive (1963 Season) 0.88" W x 107.75" L

1шт.
