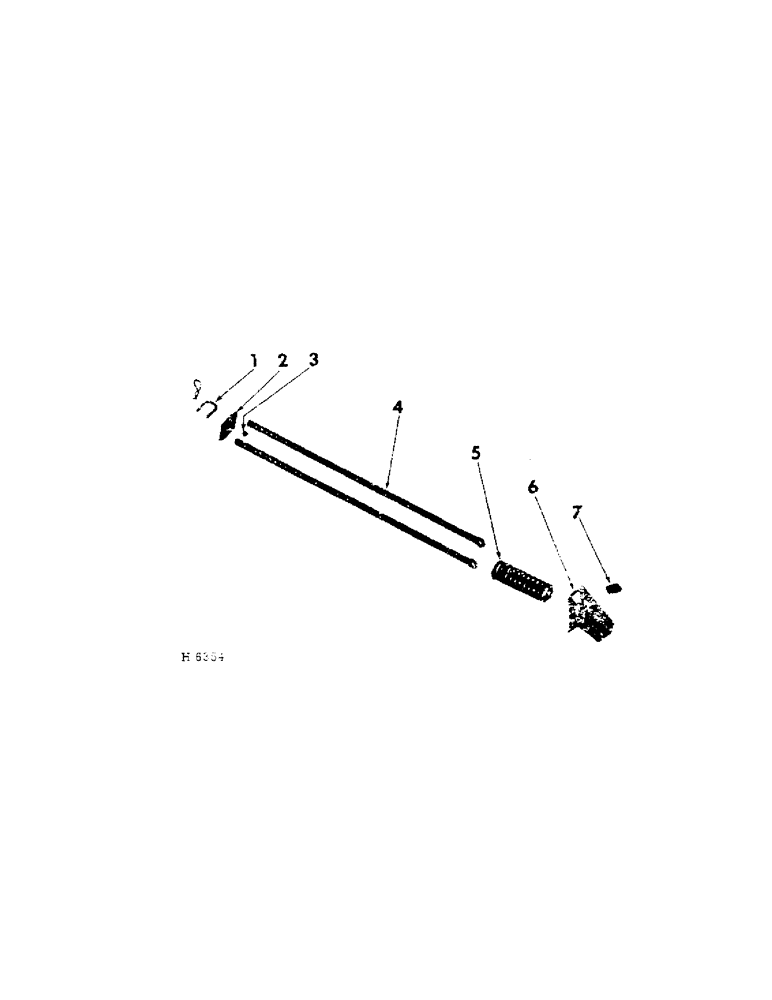

Запчасти Case IH 201 (B-005[B]) - MECHANICAL LIFT LINKAGE (58) - ATTACHMENTS/HEADERS

1

612403R1

ARM, conditioner lift

2шт.

BOLT W/NUT, 5/8 x 1-1/2" type 2

2шт.

LK-WASH, 5/8"

2шт.

2

612404R1

STRAP, rockshaft connecting

2шт.

BOLT W/NUT, 5/8 x 1-3/4" mach

4шт.

WASH, 21/32 x 1-1/4 x 11 ga

4шт.

LK-WASH, 5/8"

4шт.

3

612378R1

SPACER, connecting strap

4шт.

4

612365R11

ROCKSHAFT, lift linkage LH

1шт.

4

612366R11

ROCKSHAFT, lift linkage RH

1шт.

113879

KEY

5/16 x 1-1/4" woodruff

1шт.

WASH, 1-1/32 x 2 x 16 ga

1шт.

C-PIN, 1/4 x 1-3/4"

2шт.

5

612015R1

BEARING, rockshaft outer

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

BOLT W/NUT, 7/16 x 1-1/4" mach

6шт.

LK-WASH, 7/16"

6шт.
