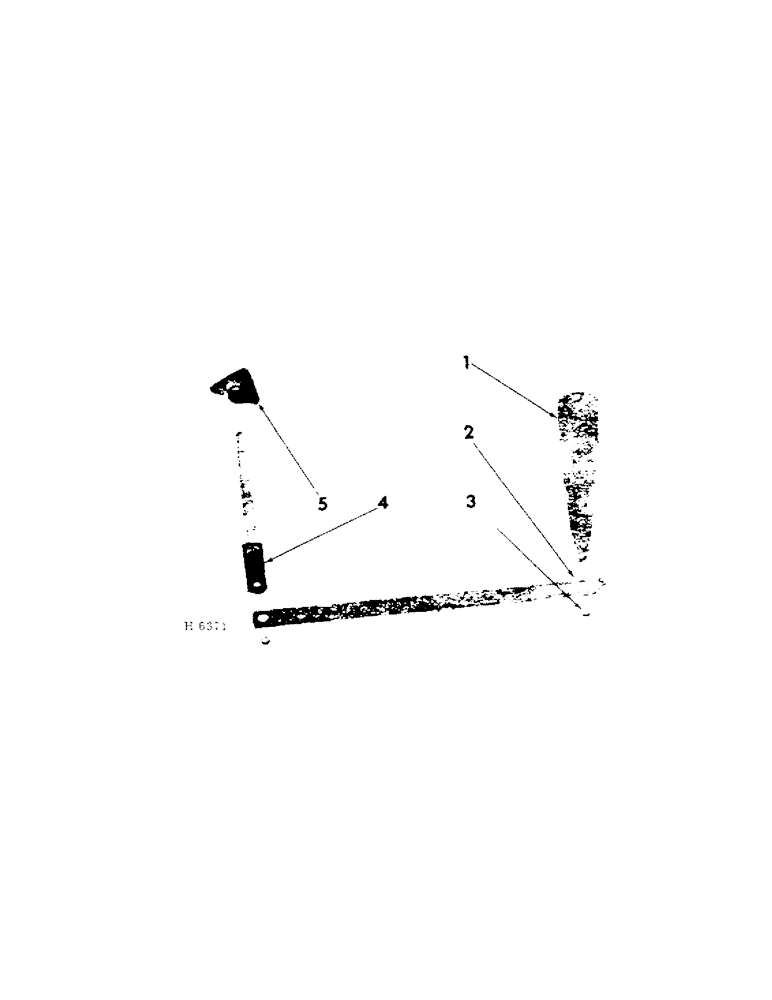

Запчасти Case IH 201 (B-005[A]) - HEIGHT ADJUSTER (58) - ATTACHMENTS/HEADERS

1

613353R1

PIN, height adjuster lk

1шт.

517843R1

COTTER PIN

C-PIN, quick-attachable

1шт.

2

613354R1

STOP, height adjuster spg

1шт.

3

M83606

SPACER

height adjuster straps

1шт.

4

612399R1

STRAP, height adjuster

2шт.

BOLT W/NUT, 5/16 x 1-3/4" mach

1шт.

PIN, 3/4 x 11/16" std-hd dld

1шт.

C-PIN, 1/4 x 1-1/2"

1шт.

LK-WASH, 5/16"

1шт.

5

613357R1

SPRING, height adjuster

1шт.

6

613356R11

SUPPORT, height adjuster

1шт.

BOLT W/NUT, 7/16 x 1" crg

3шт.

LK-WASH, 7/16"

3шт.

7

614013R1

GUIDE, height adjuster roller

1шт.

PIN, 5/8 x 3-3/8" std-hd dld

1шт.

C-PIN, 3/16 x 1"

1шт.
