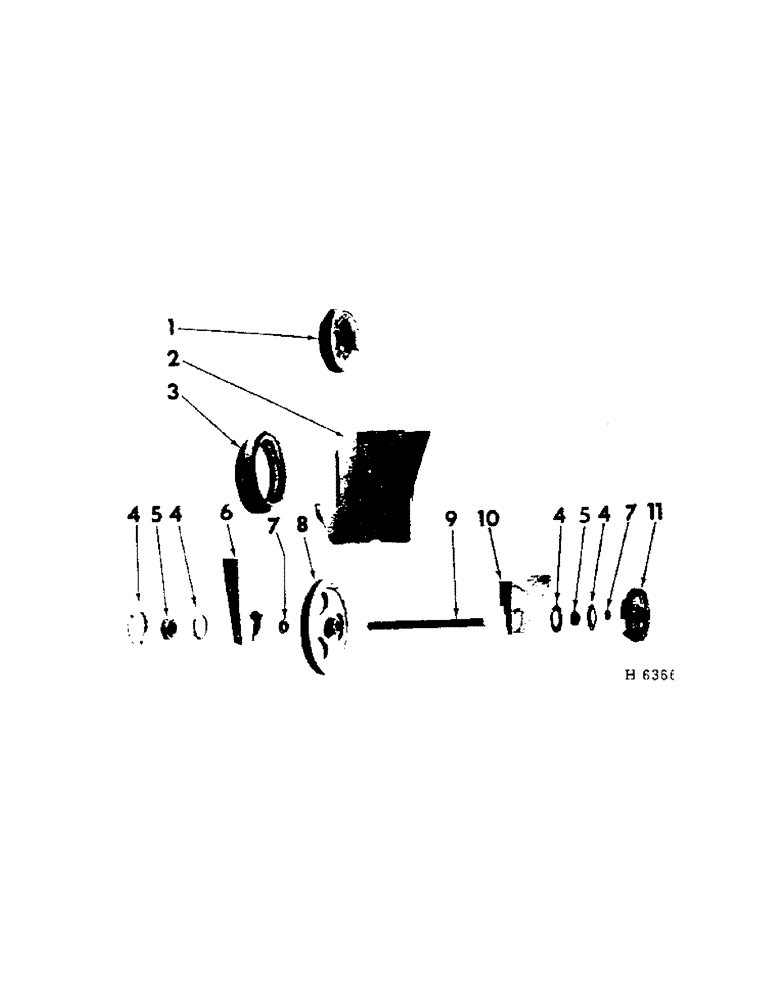

Запчасти Case IH 201 (B-004) - COUNTERSHAFT (58) - ATTACHMENTS/HEADERS

1

612013R1

PULLEY, auxiliary drive (carburated)

1шт.

1

614125R1

PULLEY, auxiliary drive (diesel)

1шт.

BOLT, 3/8 x 1-1/2" mach (4-carburated)

1шт.

BOLT, 7/16 x 2" mach (4-diesel)

1шт.

LK-WASH, 3/8" (4-carburated)

1шт.

LK-WASH, 7/16" (4-diesel)

1шт.

2

613196R91

SHIELD, countershaft pulley

1шт.

BOLT W/NUT, 5/16 x 5/8" cd-pltd crg

1шт.

LK-WASH, 5/16" cd-pltd

1шт.

3

559063R1

V-BELT, Hay conditioner drive

1шт.

4

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

TTE, countershaft brg

4шт.

5

566634R91

BEARING

countershaft (w/557117R11, collar)

1шт.

5

613942R91

BEARING

countershaft (w/613943R11, collar)

1шт.

6

612413R1

SUPPORT, countershaft brg LH

1шт.

BOLT W/NUT, 3/8 x 3/4" crg

5шт.

LK-WASH, 3/8"

5шт.

7

557117R11

COLLAR

COLLAR, brg locking (includes 115321, screw) (w/566634R91, brg)

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

1шт.

7

613943R11

COLLAR

brg locking (includes 115321, screw) (w/613942R91, brg)

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

1шт.

8

613363R1

PULLEY, coutnershaft driven

1шт.

SCREW, 3/8 x 3/8" hdls cup-pt set

2шт.

KEY, 5/16 x 1-1/4" woodruff

1шт.

9

612371R1

COUNTERSHAFT, hay conditioner

1шт.

10

612414R11

SUPPORT, countershaft brg RH

1шт.

BOLT W/NUT, 3/8 x 3/4" crg

2шт.

BOLT W/NUT, 3/8 x 7/8" crg

1шт.

BOLT W/NUT, 7/16 x 7/8" crg

2шт.

LK-WASH, 3/8"

3шт.

LK-WASH, 7/16"

2шт.

11

613352R1

PULLEY, countershaft driven

1шт.

581307R1

KEY,5/16" Sq x 2 3/4", Par

5/16 x 5/16 x 2-3/4"

1шт.

617942R1

PIN,7.92mm OD x 57.15mm L, Coiled

1шт.
