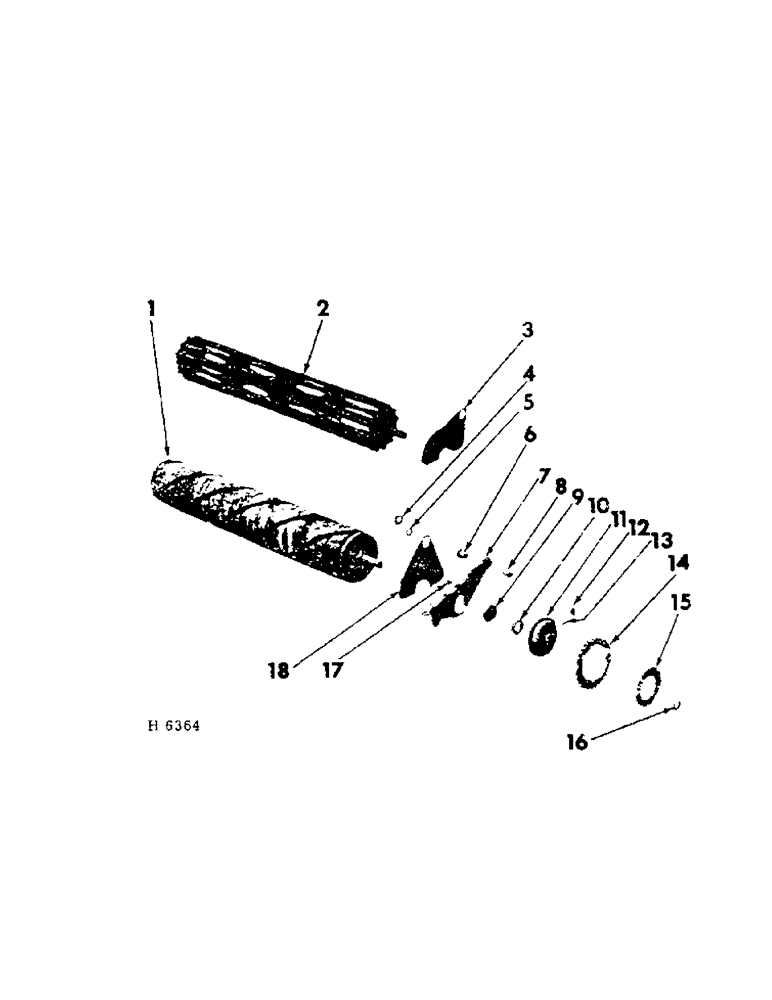

Запчасти Case IH 201 (B-003) - UPPER ROLL (58) - ATTACHMENTS/HEADERS

1

611584R91

ROLL, upper

1шт.

2

608099R93

ROLL, chevron bar

1шт.

3

608101R91

SHROUD, chevron bar upper LH

1шт.

3

608102R91

SHROUD, chevron bar upper RH

1шт.

4

Q1595

WASHER, 21/32 sq-hole x 1-3/4 x 12 ga

2шт.

5

Q226

WASHER, 21/32 sq-hole x 1-1/2 x 14 ga

2шт.

6

612369R1

BUSHING

PIVOT, lift arm

2шт.

7

612016R1

HOUSING, upper roll brg LH

1шт.

7

612017R1

HOUSING, upper roll brg RH

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

LUB-FTG, 1/8"-90deg. elbow

2шт.

442821

LK-NUT, 5/8" special

2шт.

BOLT, 3/8 x 2" mach

2шт.

BOLT, 5/8 x 3" rg (LH)

1шт.

BOLT, 5/8 x 4-3/4" crg (RH)

1шт.

WASH, 21/32 x 1-1/2 x 16 ga

3шт.

LK-WASH, 3/8"

2шт.

LK-WASH, 5/8"

2шт.

8

519145R1

GUIDE, drive chain

1шт.

9

611583R91

BALL BEARING

BEARING, upr roll shaft

2шт.

10

517645R11

COLLAR

brg locking (includes 102592, screw)

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

2шт.

11

611588R1

HUB, upr roll clutch

1шт.

113879

KEY

5/16 x 1-1/4" woodruff

1шт.

12

611320R1

BLOCK

DOG, upr roll clutch

2шт.

13

625494R1

SPRING, clutch dog

2шт.

14

611590R2

SPROCKET, 30T upr roll clutch

1шт.

15

611589R1

DISK, upr roll clutch dog

1шт.

BOLT W/NUT, 5/16 x 1-3/4" mach

2шт.

LK-WASH, 5/16"

2шт.

16

152450R1

SNAP RING,#125, Ext

Ring, Snap, , upper roll shaft #125, Ext

1шт.

17

M89002

SPACER, upr roll brg housing

1шт.

18

613360R91

SHROUD, upr LH (Not chevron)

1шт.

18

613361R91

SHROUD, upr RH (Not chevron)

1шт.

608592R1

BOLT, chevron ball stop

2шт.

NUT, 1/2" cd-pltd

2шт.

608098R91

PACKAGE, chevron bar conversion

1шт.
