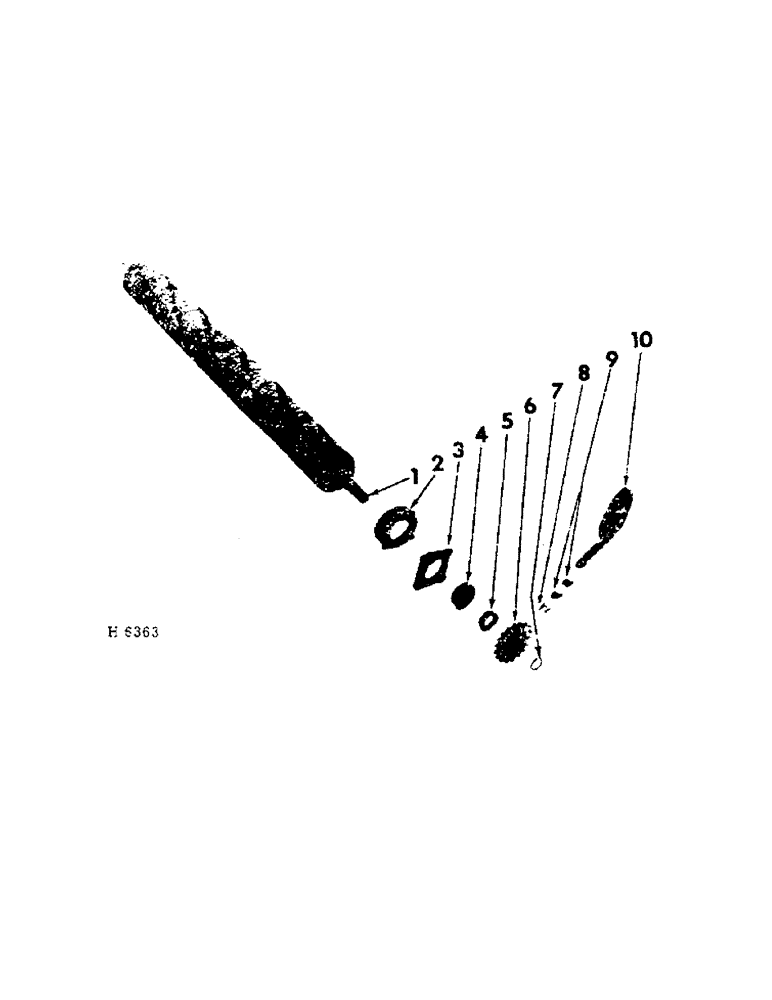

Запчасти Case IH 201 (B-003[A]) - LOWER ROLL (58) - ATTACHMENTS/HEADERS

1

611585R91

ROLL, lower

1шт.

2

461193R11

SHIELD, lower roll

2шт.

3

612018R1

HOUSING

lower roll brg

2шт.

BOLT W/NUT, 3/8 x 1-3/8" mach

8шт.

LK-WASH, 3/8"

8шт.

4

611583R91

BALL BEARING

BEARING, lower roll

2шт.

5

517645R11

COLLAR

brg locking (includes 102592, screw)

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

2шт.

6

611591R1

SPROCKET, 18T lower roll

1шт.

KEY, 5/16 x 1-1/4" woodruff

1шт.

7

152450R1

SNAP RING,#125, Ext

Ring, Snap, , lower roll shaft #125, Ext

2шт.

8

611361R91

DRAG LINK

LINK, connecting

1шт.

1390D

PIN

C-PIN, 1/4 lb. pkg

1шт.

9

612612R91

CHAIN LINK

LINK, offset

2шт.

1390D

PIN

C-PIN, 1/4 lb. pkg

1шт.

10

CHAIN, 3/4" pitch light side bar no. 60 (for service order 1-611362R91, 10 ft length of chain, reduce to 77 links & add 2-612612R91, offset links & 1-611361R91, connecting link)

1шт.
