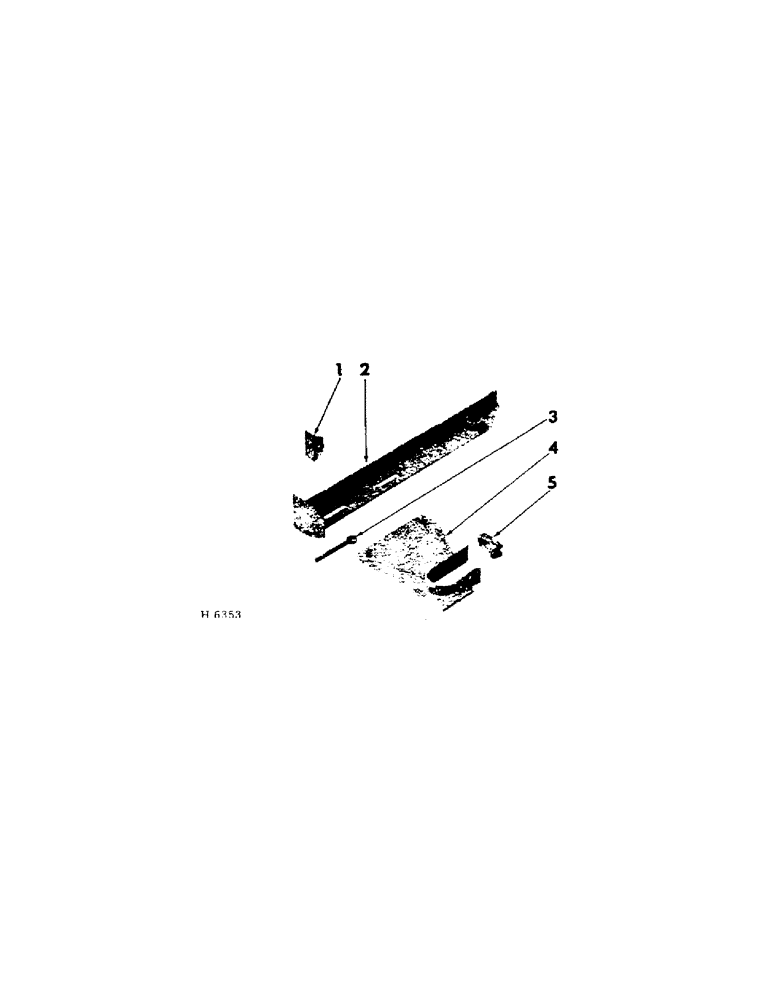

Запчасти Case IH 201 (B-002[B]) - FRAME MOUNTING SUPPORT (58) - ATTACHMENTS/HEADERS

1

612424R1

BRACKET, support angle

2шт.

BOLT W/NUT, 3/8 x 7/8" crg

6шт.

LK-WASH, 3/8"

6шт.

2

612425R11

SUPPORT, frame angle LH

1шт.

2

612426R11

SUPPORT, frame angle RH

1шт.

271293

PULLEY

LUB-FTG, 5/16"

2шт.

BOLT W/NUT, 3/8 x 3/4" crg

4шт.

BOLT W/NUT, 3/8 x 7/8" crg

2шт.

BOLT W/NUT, 7/16 x 1-1/2" crg

2шт.

LK-WASH, 3/8"

6шт.

LK-WASH, 7/16"

2шт.

3

612375R1

BOLT

drivebelt adjusting

2шт.

NUT, 1/2" jam

4шт.

4

612441R91

BRACKET, mounting LH

1шт.

4

612442R91

BRACKET, mounting RH

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

451068

LK-NUT, 1/2" special

4шт.

BOLT W/NUT, 1/2 x 1-1/2" crg

2шт.

BOLT W/NUT, 1/2 x 1-7/8" crg

2шт.

5

612010R1

RETAINER, frame pivot pipe

2шт.

PIN, 1/2 x 3-7/8" std-hd dld

2шт.

C-PIN, 3/16 x 1"

2шт.
