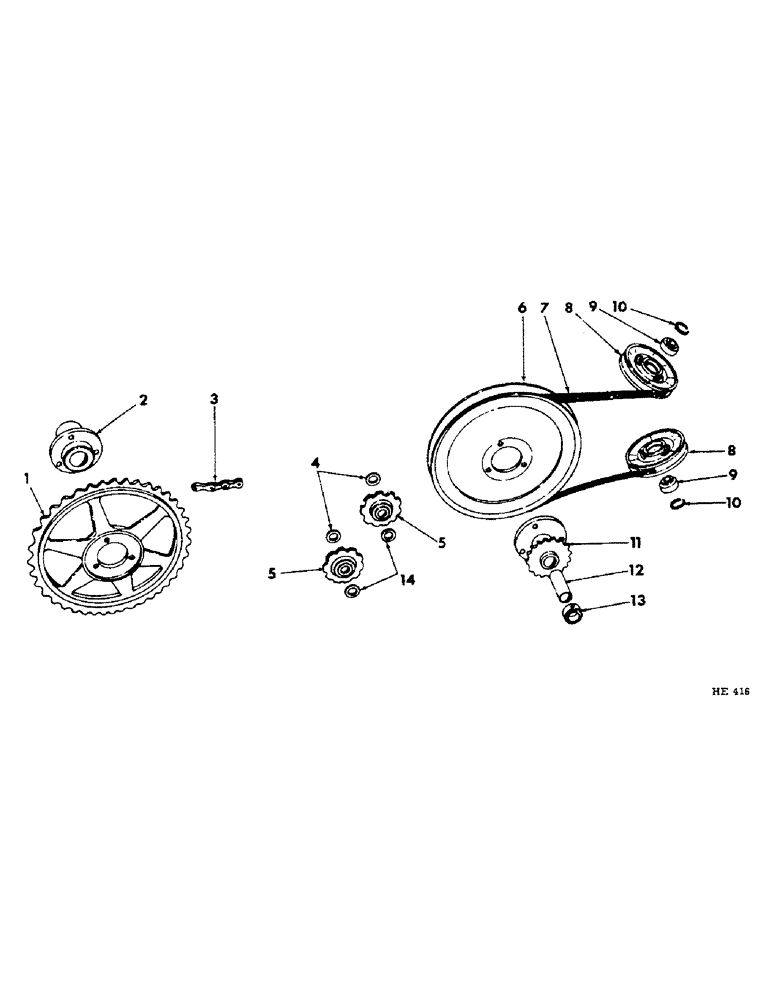

Запчасти Case IH 201 (A-113) - REEL CHAIN DRIVE, PEA BAR PLATFORM, NOT CANVAS OR AUGER PLATFORM (58) - ATTACHMENTS/HEADERS

1

608380R1

SPROCKET, 39T reel driver

1шт.

BOLT W/NUT, 3/8 x 1-3/8" mach

3шт.

LK-WASHER, 3/8"

3шт.

2

611755R1

HUB

reel driver pulley

1шт.

617978R1

PIN,3/8" x 2 1/2", Coiled

1шт.

3

CHAIN, 1-1/4" extended pitch agricultural (for service order 1-569089R91, 10 ft length of chain, reduce to 114 links & add 1-456980R91, connecting link)

1шт.

4

43851D

WASHER, 17/32 x 2 x 5/16

2шт.

5

564989R91

DRIVE SPROCKET

SPROCKET, 9T tightener (opt w/568159R91)

2шт.

5

568159R91

PINION

SPROCKET, 9T tightener (opt w/564989R91)

2шт.

BOLT W/NUT, 1/2 x 2-1/2" cd-pltd type 2

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga cd-pltd

6шт.

LK-WASHER, 1/2" cd-pltd

2шт.

6

554545R91

PULLEY, reel jackshaft driven

1шт.

BOLT W/NUT, 3/8 x 1-1/4" mach

3шт.

LK-WASHER, 3/8"

3шт.

7

27550K

BELT,0.66" W x 100.79" L

V-BELT , Reel drive 0.66" W x 100.79" L

1шт.

8

611701R1

PULLEY, belt tightener

2шт.

BOLT W/NUT, 1/2 x 2" mach

2шт.

16038R1

WASHER

17/32 x 1 x 16 ga

4шт.

LK-WASHER, 1/2"

2шт.

9

611926R91

BEARING, tightener pulley (opt w/608372R91, bearing)

2шт.

9

608372R91

BEARING

tightener pulley (opt w/611928R91, bearing)

2шт.

10

133213R1

SNAP RING,1.562", Int, #156

Ring, Snap, , tightener pulley brg 1.562", Int, #156

4шт.

11

609987R91

SPROCKET W/BUSHING, reel driver pulley

1шт.

BOLT W/NUT, 3/8 x 1-1/4" mach

3шт.

LK-WASHER, 3/8"

3шт.

12

617363R1

BUSHING

sprocket reel driver

1шт.

13

610513R1

COLLAR

COLLAR, pivot shaft locking

1шт.

142671

SET SCREW

SCREW, 5/16 x 1/2" cd-pltd sq-hd cup-pt set

1шт.

14

374119R1

WASHER, 17/32 x 1 x 1/8

2шт.
