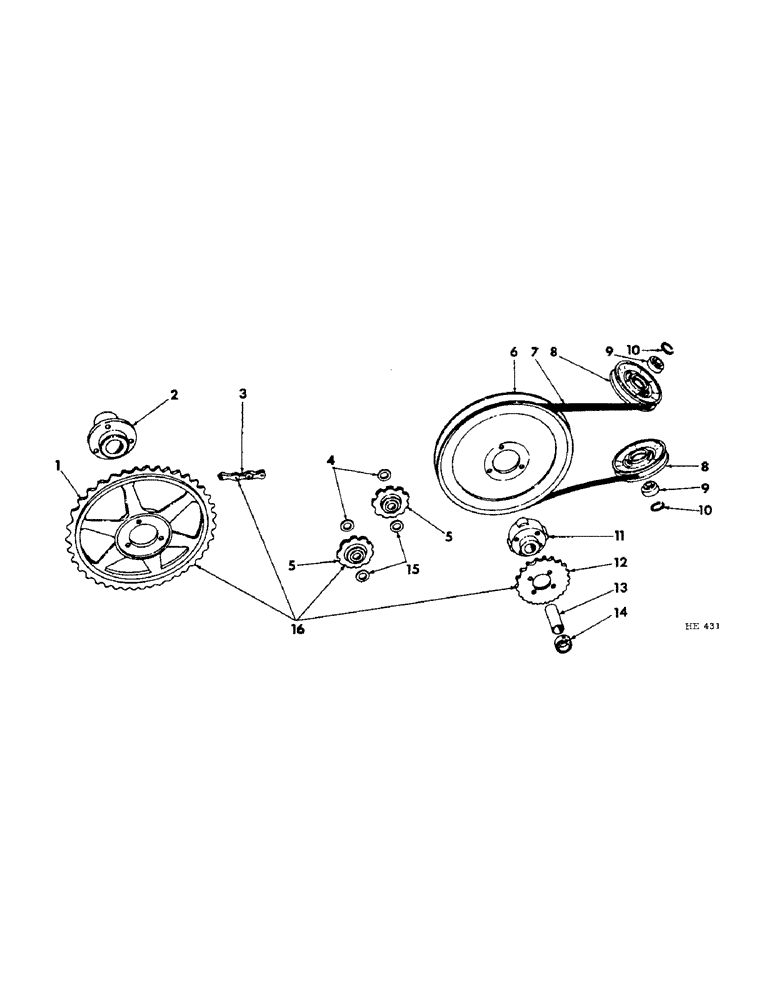

Запчасти Case IH 201 (A-112) - REEL CHAIN DRIVE, SPECIAL, CANVAS PLATFORM, NOT AUGER OR PEA BAR PLATFORM (58) - ATTACHMENTS/HEADERS

1

608380R1

SPROCKET, 38T reel driver

1шт.

BOLT W/NUT, 3/8 x 1-3/8" mach

3шт.

LK-WASHER, 3/8"

3шт.

2

611755R1

HUB

reel driver pulley

1шт.

617978R1

PIN,3/8" x 2 1/2", Coiled

1шт.

3

CHAIN, 1-1/4" extended pitch agricultural reel drive (for service order 1-569089R91, 10 ft length of chain, reduce to 105 links & add 1-456980R91, connecting link)

1шт.

4

43851D

WASHER, 17/32 x 2 x 5/16 cd-pltd

2шт.

5

564989R91

DRIVE SPROCKET

SPROCKET, 9T tightener (opt w/568159R91)

2шт.

5

568159R91

PINION

SPROCKET, 9T tightener (opt w/564989R91)

2шт.

BOLT W/NUT, 1/2 x 2-1/2" cd-pltd mach

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga cd-pltd

6шт.

LK-WASHER, 1/2" cd-pltd

2шт.

6

554545R91

PULLEY, jackshaft reel drive

1шт.

BOLT, 3/8 x 1" mach

3шт.

LK-WASHER, 3/8"

3шт.

7

950477R1

BELT

10 ft reel drive

1шт.

belts are not applicable when machine equipped w/variable speed reel drive. Refer to "variable speed reel drive" for the correct belt.

1шт.

7

18884K

V-BELT,147.21" L

Reel drive 147.21" L

1шт.

belts are not applicable when machine equipped w/variable speed reel drive. Refer to "variable speed reel drive" for the correct belt.

1шт.

7

618829R1

V-BELT,0.66" W x 170.50" L

14 ft reel drive 0.66" W x 170.50" L

1шт.

belts are not applicable when machine equipped w/variable speed reel drive. Refer to "variable speed reel drive" for the correct belt.

1шт.

7

612046R1

V-BELT,0.63" W x 193.50" L

16 ft reel drive 0.63" W x 193.50" L

1шт.

belts are not applicable when machine equipped w/variable speed reel drive. Refer to "variable speed reel drive" for the correct belt.

1шт.

8

PULLEY, tightener (1961 to 1964) (sheet metal type) (order 1-611701R1, pulley, 1-611928R91, bearing & 2-133213R1, ring)

2шт.

8

611701R1

PULLEY, tightener (1965 to 1966) (cast type)

2шт.

BOLT W/NUT, 1/2 x 2" mach

2шт.

16038R1

WASHER

17/32 x 1 x 16 ga

4шт.

LK-WASHER, 1/2"

2шт.

9

611928R91

BALL BEARING,13 mm ID x 40 mm OD x 18 mm

tightener pulley (1965 to 1966) (opt w/608372R91, bearing)

2шт.

9

608372R91

BEARING

tightener pulley (1965 to 1966) (opt w/611928R91, bearing)

2шт.

10

133213R1

SNAP RING,1.562", Int, #156

Ring, Snap, , tightener pulley brg (1965 to 1966) 1.562", Int, #156

4шт.

11

611754R21

HUB W/BUSHING, support arm pivot drive pulley

1шт.

12

608379R1

SPROCKET, 23T reel driven (47 RPM)

1шт.

12

608378R1

SPROCKET, 27T reel driven (56 RPM)

1шт.

BOLT, 5/16 x 7/8" mach

4шт.

LK-WASHER, 5/16"

4шт.

13

617363R1

BUSHING

pulley hub

1шт.

14

610513R1

COLLAR

COLLAR, support arm pivot

1шт.

SCREW, 5/16 x 1/2" sq-hd cd-pltd cup-pt set

1шт.

15

374119R1

WASHER, 17/32 x 1 x 1/8"

2шт.

16

608422R91

PACKAGE, reel chain drive field conversion

1шт.

To convert belt drive machine to chain drive) (composed of items 1, 3, 5 & 12) composed of: (3) bolt 18495R1, (4) bolt 19569R1, (1) chain (NSS), (3) lockwasher 120382, (4) lockwasher 120214, (3) nut 120377, (2) sprocket 564989R1, (1) sprocket 608378R1, (1) sprocket 608379R1, (1) sprocket 608380R1

1шт.
