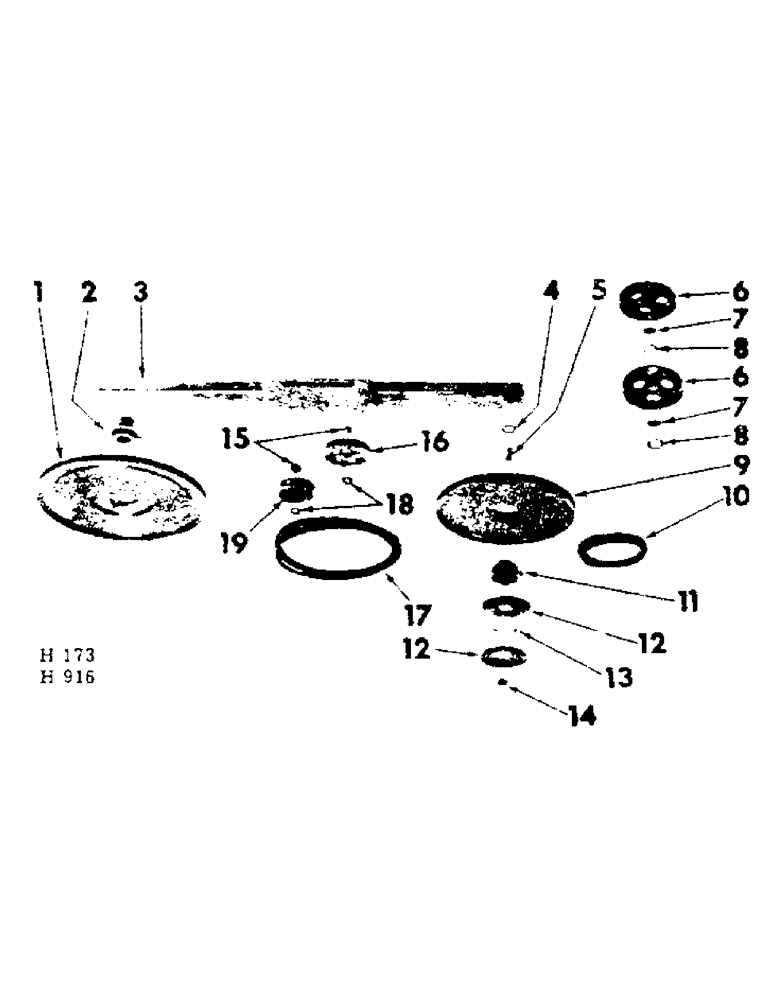

Запчасти Case IH 201 (A-111) - REEL BELT DRIVE, REGULAR, CANVAS PLATFORM, NOT AUGER OR PEA BAR PLATFORM (58) - ATTACHMENTS/HEADERS

1

588227R11

PULLEY

reel driver (IH reel)

1шт.

1

554575R91

PULLEY, reel driver (pick-up reel)

1шт.

BOLT W/NUT, 3/8 x 1-1/2" mach

3шт.

LK-WASHER, 3/8"

3шт.

2

611755R1

HUB

reel driver pulley

1шт.

617978R1

PIN,3/8" x 2 1/2", Coiled

1шт.

3

ARM, reel support (refer to "reel support arm LH")

1шт.

4

614451R1

WASHER

1-1/32 x 1-3/4 x 11 ga cd-pltd

1шт.

5

617363R1

BUSHING

reel drive pulley hub

1шт.

6

PULLEY, tightener (1961 to 1964) (sheet metal type) (order 1-611701R1, pulley; 1-611928R91, bearing & 2-133213R1, ring)

2шт.

6

611702R1

PULLEY, tightener (1965 to 1966) (cast type)

2шт.

BOLT W/NUT, 1/2 x 2" mach

2шт.

16038R1

WASHER

17/32 x 1 x 16 ga

1шт.

LK-WASHER, 1/2"

2шт.

7

611928R91

BALL BEARING,13 mm ID x 40 mm OD x 18 mm

pulley (1965 to 1966) (opt w/608372R91)

2шт.

7

608372R91

BEARING

pulley (1965 to 1966) (opt w/611928R91)

2шт.

8

133213R1

SNAP RING,1.562", Int, #156

Ring, Snap, , brg (1965 to 1966) 1.562", Int, #156

4шт.

9

554545R91

PULLEY, jackshaft reel drive

1шт.

BOLT, 3/8 x 1" mach

3шт.

LK-WASHER, 3/8"

3шт.

10

950477R1

BELT

10 ft reel drive

1шт.

belts are not applicable when machine equipped with variable speed reel drive. Refer to "variable speed reel drive"\n

1шт.

10

18884K

V-BELT,147.21" L

Reel drive 147.21" L

1шт.

belts are not applicable when machine equipped with variable speed reel drive. Refer to "variable speed reel drive"\n

1шт.

10

618829R1

V-BELT,0.66" W x 170.50" L

14 ft reel drive 0.66" W x 170.50" L

1шт.

belts are not applicable when machine equipped with variable speed reel drive. Refer to "variable speed reel drive"\n

1шт.

10

612046R1

V-BELT,0.63" W x 193.50" L

16 ft reel drive 0.63" W x 193.50" L

1шт.

belts are not applicable when machine equipped with variable speed reel drive. Refer to "variable speed reel drive"\n

1шт.

11

611754R21

HUB W/BUSHING, reel drive pulley

1шт.

12

592730R1

PULLEY

reel drive half

2шт.

BOLT, 5/16 x 1-1/8" mach

4шт.

LK-WASHER, 5/16"

4шт.

13

21659K

RING

SPACER, pulley halves

5шт.

14

610513R1

COLLAR

COLLAR, support arm pivot

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/16 x 1/2" sq-hd cd-pltd cup-pt set

1шт.

15

43851D

WASHER, 17/32 x 2 x 5/16

2шт.

16

559087R92

PULLEY

belt tightener

1шт.

BOLT W/NUT, 1/2 x 2-1/2" cd-pltd mach

1шт.

LK-WASHER, 1/2" cd-pltd

1шт.

17

18884K

V-BELT,147.21" L

Reel drive (w/IH reel only) (1961 to 1964) 147.21" L

1шт.

17

554653R2

V-BELT,0.63" W

Reel drive (w/pick-up reel only) (1961 to 1964) 0.63" W

1шт.

17

18884K

V-BELT,147.21" L

Reel drive (1965 to 1966) 147.21" L

1шт.

18

374119R1

WASHER, 17/32 x 1 x 1/8

2шт.

19

559292R92

NO LONGER SERVICED

PULLEY, belt tightener

1шт.

BOLT W/NUT, 1/2 x 2-1/2" cd-pltd mach

1шт.

LK-WASHER, 1/2" cd-pltd

1шт.
