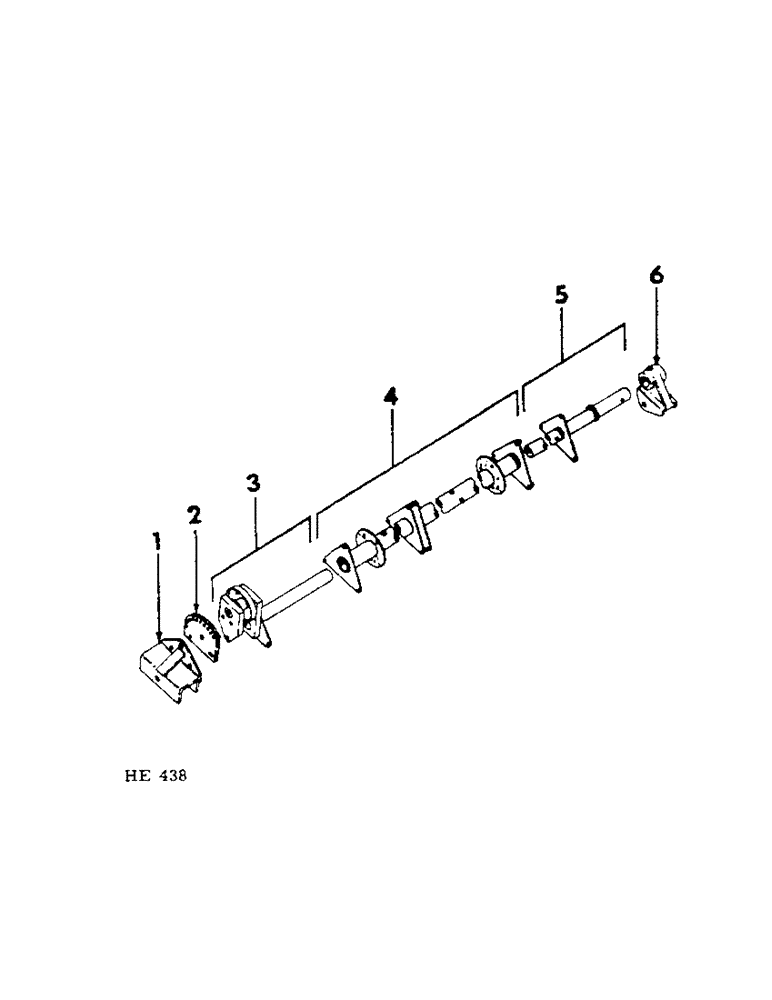

Запчасти Case IH 201 (A-110) - PICK-UP REEL RIDING SHAFT, PEA BAR PLATFORM, NOT AUGER OR CANVAS PLATFORM (58) - ATTACHMENTS/HEADERS

1

592605R91

BRACKET, eccentric adjustment plate (connects to reel lift arm)

1шт.

BOLT W/NUT, 1/2 x 2-3/4" mach

1шт.

LK-WASHER, 1/2"

1шт.

2

592604R11

PLATE, eccentric crank adjustment

1шт.

BOLT W/NUT, 7/16 x 1-1/4" mach

2шт.

BOLT, 1/2 x 1" type 2

1шт.

BOLT, 1/2 x 1-1/4" type 2

1шт.

106264

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

1/2 x 1-1/4 x 16 ga

1шт.

LK-WASHER, 7/16"

2шт.

LK-WASHER, 1/2"

2шт.

3

592603R91

CRANK, eccentric drive (includes 109461 & 273355, fittings)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

LUB-FITTING, 1/4"

1шт.

4

592599R91

SHAFT, reel center (includes 102593, screws & 273355, fitting)

1шт.

102593

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

SCREW, 3/8 x 1/2" hdls cup-pt set

3шт.

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

LUB-FITTING, 1/4"

1шт.

5

592598R91

SHAFT, reel driving end

1шт.

6

611761R1

BRACKET, reel drive shaft

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

517843R1

COTTER PIN

C-PIN, quick-attachable

1шт.

LC175

PIN

1/2 x 2-1/2" std-hd-dld

1шт.
