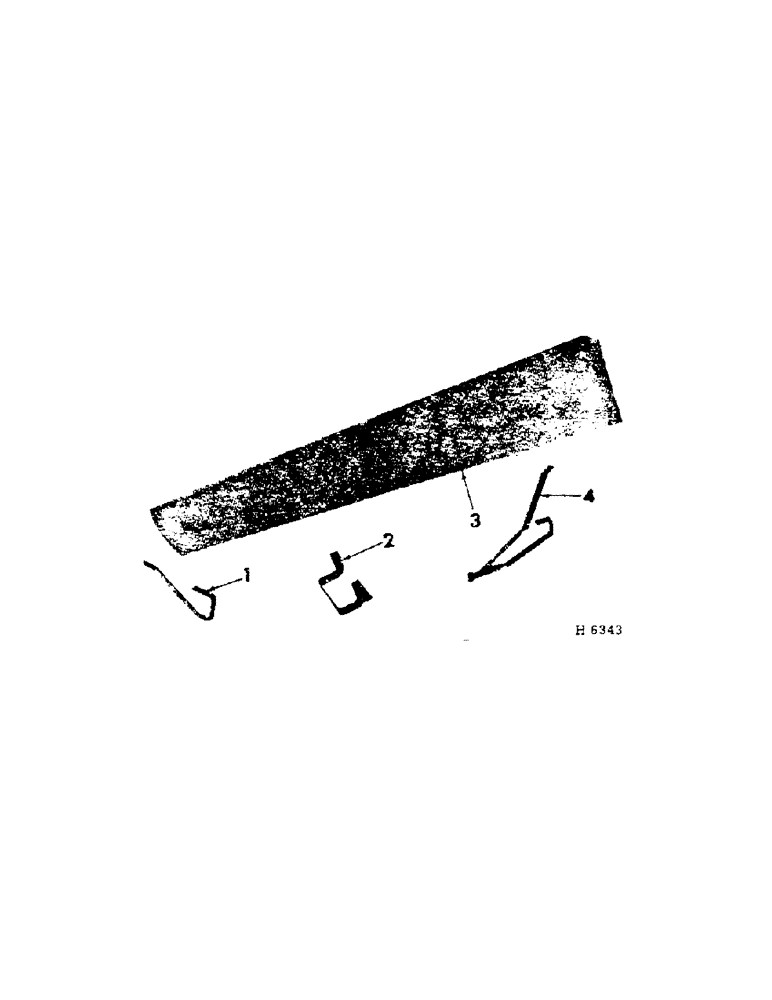

Запчасти Case IH 201 (A-109[B]) - REEL DRIVE SHIELD, CANVAS PLATFORM, NOT AUGER OR PEA BAR PLATFORM (58) - ATTACHMENTS/HEADERS

1

613336R1

BRACKET, shield rear & intermediate, Serial Range: (1961-1964)

2шт.

1

613336R1

BRACKET, shield rear, Serial Range: (1965-1966)

1шт.

BOLT W/NUT, 3/8 x 7/8" mach

1шт.

LK-WASHER, 3/8"

1шт.

2

609959R1

BRACKET, shield intermediate, Serial Range: (1965-1966)

1шт.

BOLT W/NUT, 5/16 x 3/4" mach

2шт.

LK-WASHER, 5/16"

2шт.

3

613339R2

SHIELD, reel drive

1шт.

BOLT W/NUT, 5/16 x 3/4" cd-pltd mach

6шт.

134238R1

WASHER

11/32 x 1 x 16 ga cd-pltd

6шт.

LK-WASHER, 5/16"

6шт.

4

613340R91

BRACKET, shield front

1шт.

BOLT W/NUT, 1/2 x 2-1/4" mach

1шт.

LK-WASHER, 1/2"

1шт.
