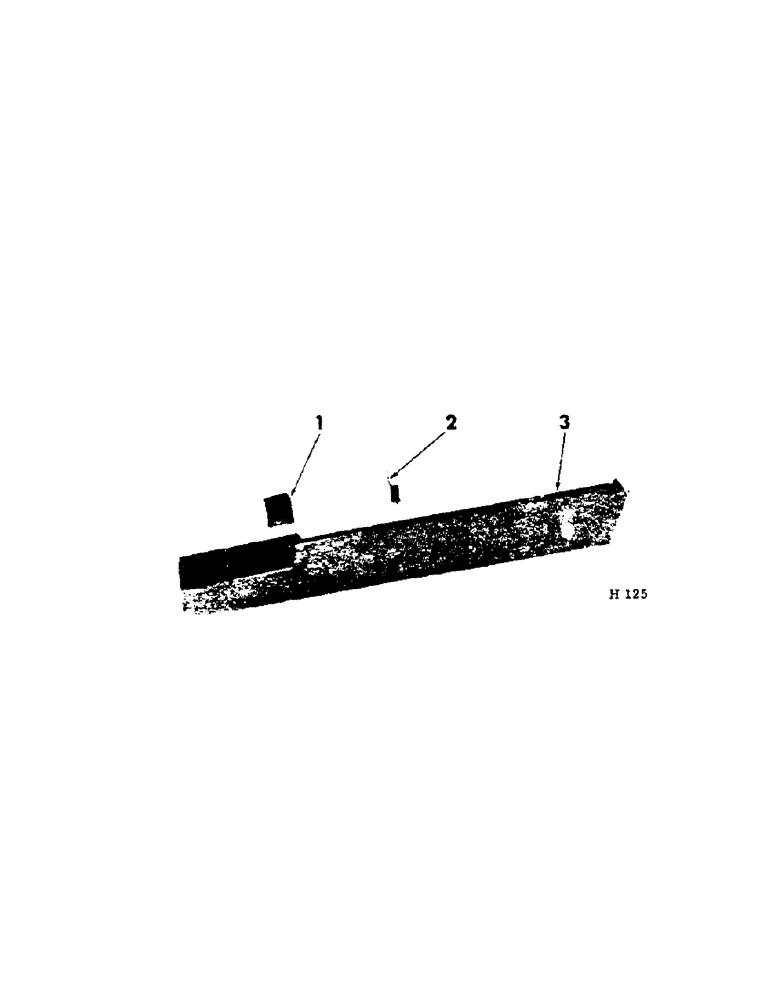

Запчасти Case IH 201 (A-109[A]) - REEL DRIVE SHIELD, AUGER PLATFORM, NOT CANVAS OR PEA BAR PLATFORM (58) - ATTACHMENTS/HEADERS

1

609787R11

BRACKET, reel shield rear mounting

1шт.

612233R1

SPACER,5/8" Tube x 1 1/8"

mounting bracket

2шт.

BOLT W/NUT, 3/8 x 2-1/4" mach

2шт.

LK-WASH, 3/8"

2шт.

2

609786R11

BRACKET, reel shield front mounting

1шт.

BOLT W/NUT, 3/8 x 7/8" mach

2шт.

LK-WASH, 3/8"

2шт.

3

609780R11

SHIELD, reel drive

1шт.

BOLT W/NUT, 5/16 x 3/4" cd-pltd mach

3шт.

NUT, 3/8" cd-pltd

4шт.

619856R1

WASHER

WASH, 13/32 x 1 x 16 ga cd-pltd

4шт.

LK-WASH, 5/16" cd-pltd

3шт.

LK-WASH, 3/8" cd-pltd

4шт.
