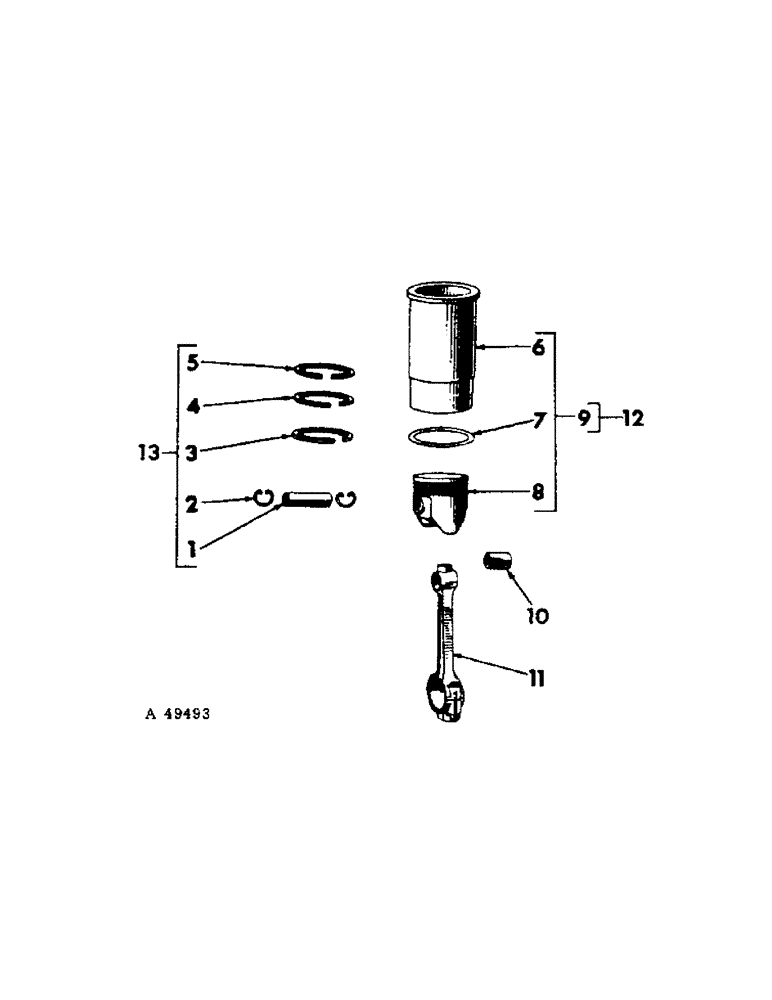

Запчасти Case IH 201 (A-011) - CONNECTING ROD AND CYLINDER SLEEVE (10) - ENGINE

1

367797R1

PIN,21.83mm OD x 69.93mm L

cyl piston std

4шт.

1

367862R1

PIN

cyl piston .005" oversize

4шт.

2

367798R1

RING, PISTON

RING, pin retaining

8шт.

3

388350R91

RING

3rd or bottom groove piston

4шт.

4

367801R1

RING

2nd groove compression

4шт.

5

367860R1

RING

1st or top compression

4шт.

6

SLEEVE, cyl (order 1-374477R94 or 374521R93, sleeve) (NSS)

1шт.

7

367799R1

RING

cyl sleeve packing

4шт.

8

PISTON, cyl (order 1-374477R94 or 374521R93, sleeve) (NSS)

1шт.

9

SLEEVE, cyl std-altitude (prior to engine serial no. 20287, order 1-374476R94, set)

4шт.

9

SLEEVE, cyl high altitude (prior to engine serial no. 25435, order 1-374520R92, set)

4шт.

9

374477R94

SLEEVE ASSEMBLY, cyl std composed of: (1) pin 367797R1, (1) piston (NSS), (1) ring 367799R1, (1) ring 367860R1, (1) ring 367801R1, (1) ring 368350R91, (1) sleeve (NSS), (2) spring 367798R1

4шт.

9

374521R93

SLEEVE ASSEMBLY, cyl high altitude composed of: (1) pin 367797R1, (1) piston (NSS), (2) ring 367798R1, (1) ring 367799R1, (1) ring 367801R1, (1) ring 367860R1, (1) ring 388350R91, (1) sleeve (NSS)

4шт.

10

367775R1

BUSHING,21.36mm ID x 23.36mm OD x 29.97mm L

connecting rod

4шт.

11

367774R11

ROD

connecting (includes 363465R11, bolts & 367775R1, bushing)

4шт.

363465R11

BOLT,3/8" - 24 x 2 5/16"

& NUT, connecting rod

8шт.

363466R1

NUT

connecting rod bolt

8шт.

12

374476R94

PISTON ASSY.

SET, of 4 std piston & sleeve (includes sleeves, 374477R94) (prior to engine serial no. 20287)

1шт.

12

374520R92

SET, of 4 high altitude piston & sleeve (includes sleeves, 374521R93) (prior to engine serial no. 25435)

1шт.

13

367859R92

RING

KIT, std or high altitude piston ring replacement (includes rings, 388350R91, 367860R1 & 367801R1)

1шт.
