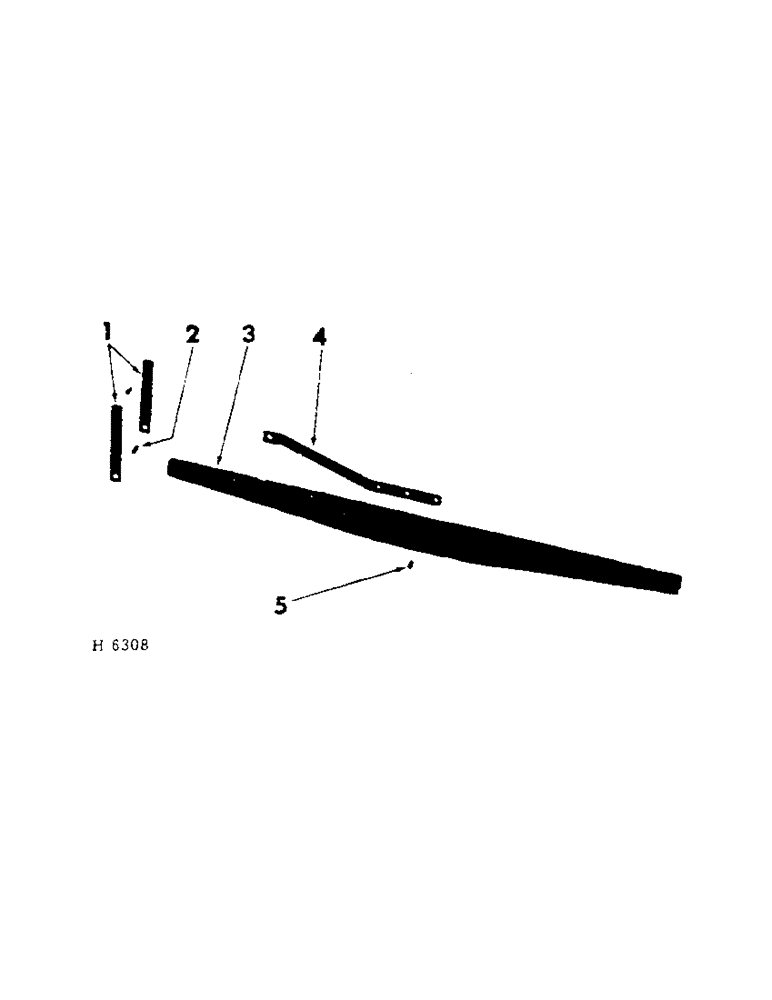

Запчасти Case IH 201 (A-108[A]) - REEL SUPPORT ARM LEFT HAND, PEA BAR PLATFORM, NOT AUGER OR CANVAS PLATFORM (58) - ATTACHMENTS/HEADERS

1

610513R1

COLLAR

COLLAR, reel support arm locking

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/16 x 1/2" cd-pltd sq-hd cup-pt set

1шт.

2

609768R12

ARM, reel support LH

1шт.

609836R1

WASHER

WASH, 1-1/32 x 1-3/4 x 16 ga cd-pltd

1шт.

3

612089R1

BRACE, reel support arm

1шт.

612233R1

SPACER,5/8" Tube x 1 1/8"

support brace

2шт.

BOLT, 3/8 x 3/4" cd-pltd mach

1шт.

BOLT W/NUT, 3/8 x 2-1/4" crg

2шт.

614452R1

WASHER

WASH, 13/32 x 1-1/4 x 11 ga cd-pltd

1шт.

LK-WASH, 3/8" cd-pltd

1шт.

LK-WASH, 3/8"

2шт.

1

609992R11

ARM, reel support

1шт.

2

609917R1

SUPPORT, reel drive tightener

1шт.

3

612088R1

BRACE, reel arm LH

1шт.

BOLT, 3/8 x 3/4" cd-pltd mach

1шт.

BOLT W/NUT, 3/8 x 1" crg

1шт.

BOLT W/NUT, 3/8 x 2-1/2" crg

1шт.

WASH, 13/32 x 1-1/4 x 11 ga cd-pltd

1шт.

WASH, 3/8" cd-pltd

1шт.

LK-WASH, 3/8"

2шт.

4

609778R1

BOLT, idler sprocket tightener

1шт.

NUT, 3/8" cd-pltd

2шт.

5

N42827

SPACER

support guide

2шт.

6

612178R1

GUIDE, reel arm support

2шт.

BOLT, 7/16 x 2-3/4" mach

1шт.

BOLT W/NUT, 7/16 x 2-3/4" crg

1шт.

W6652

WASHER

WASH, 15/32 x 1 x 16 ga

2шт.

LK-WASH, 7/16"

2шт.

7

612233R1

SPACER,5/8" Tube x 1 1/8"

reel lift arm

1шт.

1

612178R1

GUIDE, reel support arm

2шт.

BOLT, 7/16 x 2-3/4" mach

1шт.

BOLT W/NUT, 7/16 x 2-3/4" crg

1шт.

W6652

WASHER

WASH, 15/32 x 1 x 16 ga

2шт.

LK-WASH, 7/16"

2шт.

2

N42827

SPACER

support guide

2шт.

3

612163R11

ARM, support (Canvas Platform only)

1шт.

3

609993R11

ARM, support (Pea Bar Platform only)

1шт.

4

612089R1

BRACE, support arm

1шт.

BOLT, 3/8 x 3/4" cd-pltd mach

1шт.

BOLT W/NUT, 3/8 x 2-1/4" crg

2шт.

614452R1

WASHER

WASH, 13/32 x 1-1/4 x 11 ga cd-pltd

2шт.

WASH, 3/8" cd-pltd

1шт.

LK-WASH, 3/8"

2шт.

5

612233R1

SPACER,5/8" Tube x 1 1/8"

reel lift support arm

1шт.

BOLT W/NUT, 3/8 x 2" mach

1шт.

LK-WASH, 3/8"

1шт.
