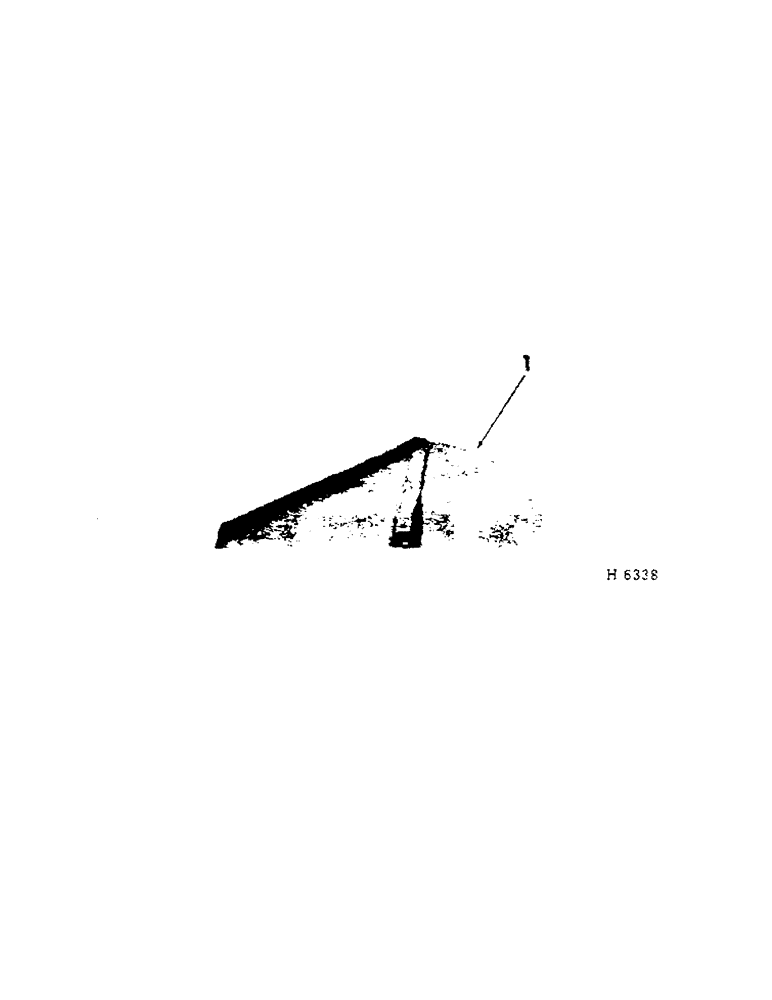

Запчасти Case IH 201 (A-107[A]) - REEL SUPPORT ARM LEFT HAND, 1965 TO 1966, CANVAS PLATFORM, NOT AUGER OR PEA BAR PLATFORM (58) - ATTACHMENTS/HEADERS

1

609914R91

ARM, reel lift

1шт.

2

609917R1

SUPPORT, reel drive tightener

1шт.

3

612088R1

BRACE, reel arm LH

1шт.

BOLT, 3/8 x 3/4" cd-pltd mach

1шт.

BOLT W/NUT, 3/8 x 1" crg

1шт.

BOLT W/NUT, 3/8 x 2-1/2" crg

1шт.

614452R1

WASHER

WASH, 13/32 x 1-1/4 x 11 ga cd-pltd

1шт.

LK-WASH, 3/8" cd-pltd

1шт.

LK-WASH, 3/8"

2шт.

4

609778R1

BOLT, idler pulley tightener

1шт.

NUT, 3/8" cd-pltd

2шт.

5

N42827

SPACER

support guide

2шт.

6

612178R1

GUIDE, reel arm support

2шт.

BOLT, 7/16 x 2-3/4" mach

1шт.

BOLT W/NUT, 7/16 x 2-3/4" crg

1шт.

W6652

WASHER

WASH, 15/32 x 1 x 16 ga

2шт.

LK-WASH, 7/16"

2шт.

7

559087R92

PULLEY

drive belt tightener upr

1шт.

BOLT W/NUT, 1/2 x 2" mach

1шт.

LK-WASH, 1/2"

1шт.

8

559292R92

NO LONGER SERVICED

PULLEY, drive belt tightener lower

1шт.

BOLT W/NUT, 1/2 x 2" mach

1шт.

LK-WASH, 1/2"

1шт.

9

612233R1

SPACER,5/8" Tube x 1 1/8"

reel lift arm

1шт.
